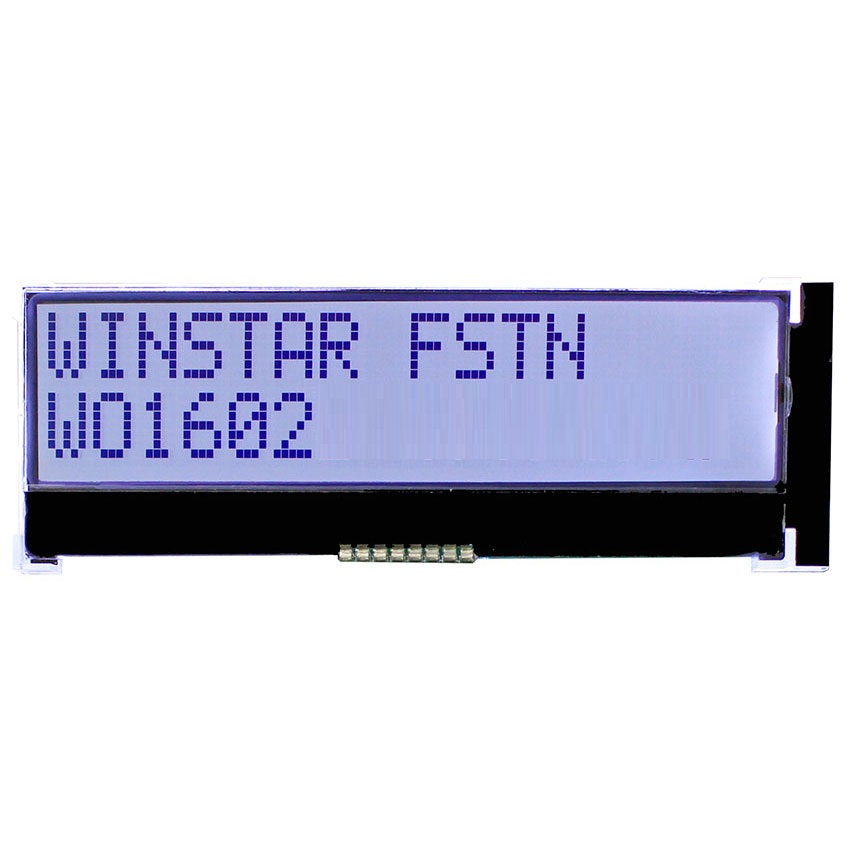

WO1602AT-85HB#FC

Character LCD 3" 16x2, B/L white, FSTN white pos, Transflective, COG, 3V/5V, Interface I2C, 6 O'clock

DESCRIPTION

16 characters x 2 lines COG (chip on glass) I2C LCD display module which is built in with ST7032 controller, its interface is I2C 4-wire serial, with metal pin connection. This I2C LCD display module is an Ultra-Compact and Thin Design. It can be used in many compact application, industrial device, and security, medical and hand-held device.

DRAWING

COG LCD Display Module 16x2 - WO1602B - Winstar

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	Vout	Positive Voltage output
2	CAP-	DC/DC voltage converter.
3	CAP+	DC/DC voltage converter.
4	V_DD	Power supply for logic
5	V_SS	Ground
6	SDATA	Serial input data
7	SCLK	Serial clock input
8	RST	Controller reset signal, Active Low

Mechanical Data

Item	Standard Value	Unit
Module Dimension	85.0 × 30.0	mm
Viewing Area	76.0 × 18.0	mm
Dot Pitch	0.79 × 0.97	mm
Dot Size	0.75 × 0.9	mm

Electrical Characteristics

Item	Symbol	Standard value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	4.50	V

SKU: WO1602AT-85HB#FC

Brand: Winstar

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€8.30

€6.10

€5.90

€5.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€8.30 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	Vout	Positive Voltage output
2	CAP-	DC/DC voltage converter.
3	CAP+	DC/DC voltage converter.
4	V_DD	Power supply for logic
5	V_SS	Ground
6	SDATA	Serial input data
7	SCLK	Serial clock input
8	RST	Controller reset signal, Active Low

Mechanical Data

Item	Standard Value	Unit
Module Dimension	85.0 × 30.0	mm
Viewing Area	76.0 × 18.0	mm
Dot Pitch	0.79 × 0.97	mm
Dot Size	0.75 × 0.9	mm

Electrical Characteristics

Item	Symbol	Standard value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	4.50	V

Products specifications

Brand	Winstar
Size	3"
Resolution	16x2
Active Area (mm)	73.81x15.88
Dot Size	0.75x0.90
B/L color, LCD type	B/L white, FSTN white pos
Power supply	3V
Display Interface	I2C
Display IC	ST7032i
Constructive Structure	COG
View Angle	6H
Frame	No
O. Temperature (°C)	-20~70
Display Connection	Pin Strip
Pin Nr.	8
Pin Pitch	1.8mm
Preferred - Not Preferred	Preferred
