WO2002AT-86IA#FC

Character LCD 2.3'' 20x2, B/L white, FSTN black neg, COG, 3V/5V, Interface I2C, 6 O'clock

DESCRIPTION

20 characters x 2 lines standard COG LCD module. This 20x2 LCD Display is built in with ST7036i driver IC and the interface is I2C. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.


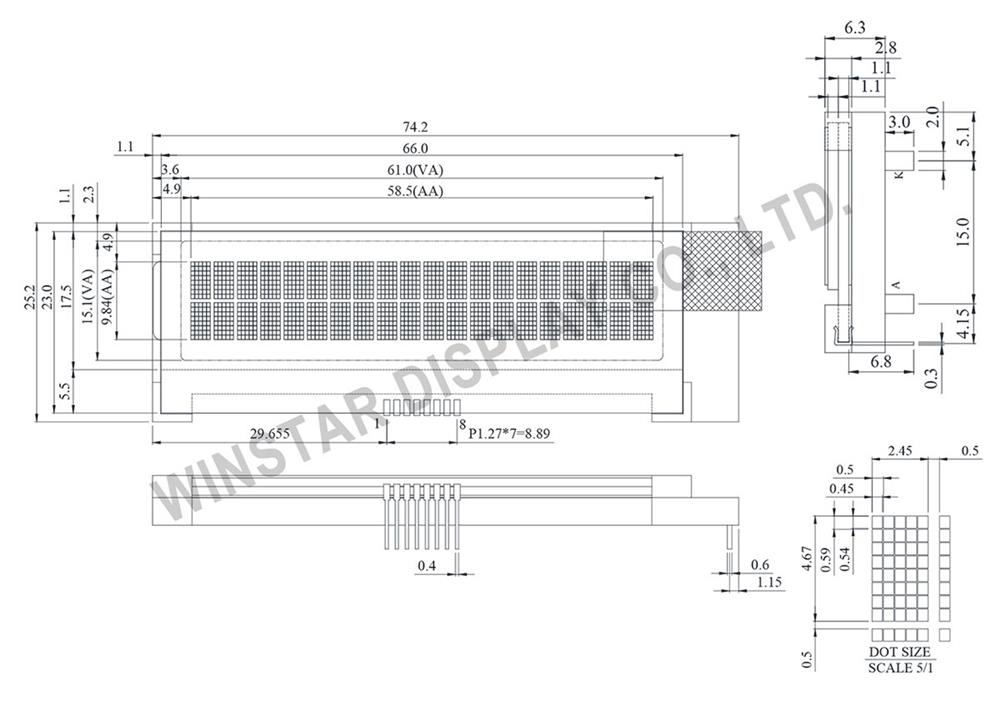

DRAWING

Winstar - WO2002A 20x2 COG LCD Module, 20x2 LCD Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 Vout Positive Voltage output
2 CAP1N DC/DC voltage converter.
3 CAP1P DC/DC voltage converter.
4 VDD Power supply for logic
5 VSS Ground
6 SDA Serial input data
7 SCL Serial clock input
8 RST Controller reset signal, Active Low



Mechanical Data

ItemStandard ValueUnit
Module Dimension 74.2 × 25.2 mm
Viewing Area 61.0 × 15.1 mm
Dot Pitch 0.50 × 0.59 mm
Dot Size 0.45 × 0.54 mm



Electrical Characteristics

ItemSymbolStandard value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 4.50 V


SKU: WO2002AT-86IA#FC
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
Price
€9.90
€7.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€9.90 excl tax

DESCRIPTION

20 characters x 2 lines standard COG LCD module. This 20x2 LCD Display is built in with ST7036i driver IC and the interface is I2C. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

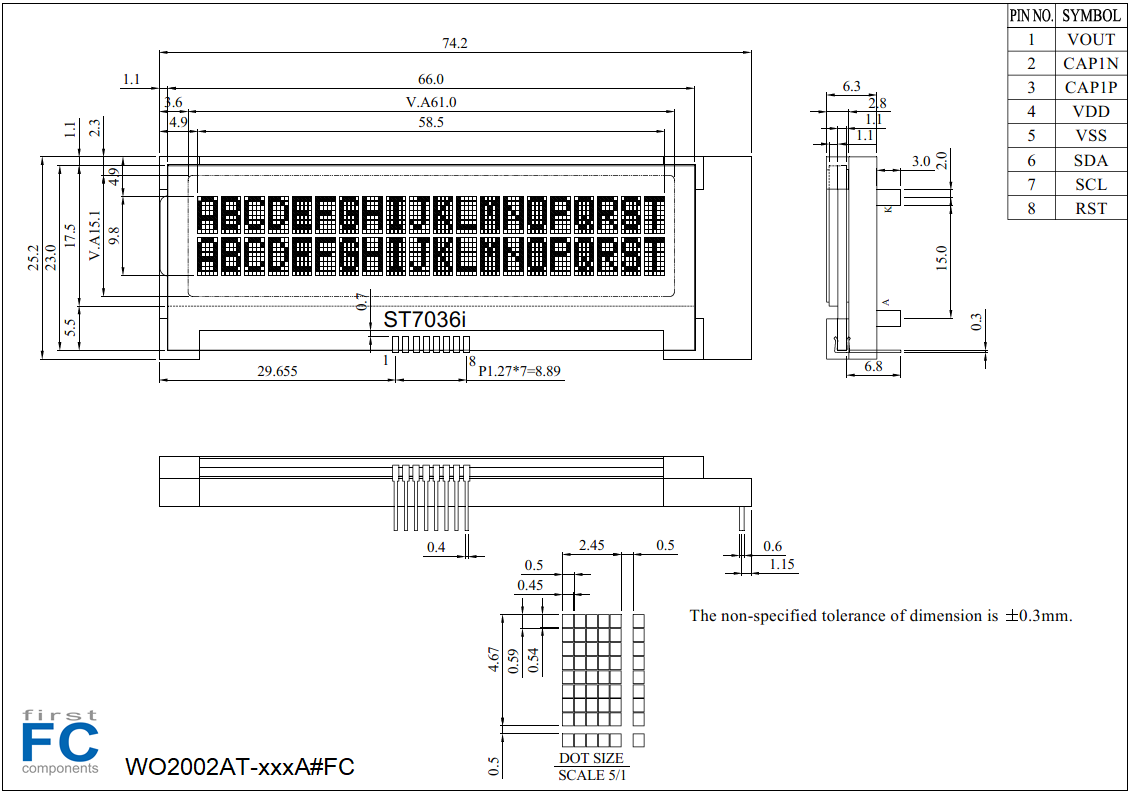

DRAWING

Winstar - WO2002A 20x2 COG LCD Module, 20x2 LCD Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 Vout Positive Voltage output
2 CAP1N DC/DC voltage converter.
3 CAP1P DC/DC voltage converter.
4 VDD Power supply for logic
5 VSS Ground
6 SDA Serial input data
7 SCL Serial clock input
8 RST Controller reset signal, Active Low



Mechanical Data

ItemStandard ValueUnit
Module Dimension 74.2 × 25.2 mm
Viewing Area 61.0 × 15.1 mm
Dot Pitch 0.50 × 0.59 mm
Dot Size 0.45 × 0.54 mm



Electrical Characteristics

ItemSymbolStandard value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 4.50 V


Products specifications
Brand Winstar
Size 2.3"
Resolution 20x2
Active Area (mm) 58.50x9.84
Dot Size 0.45x0.54
B/L color, LCD type B/L white, FSTN black neg
Power supply 3V
Interface I2C
Built-in Controller ST7036i
Structure COG
View Angle 6H
Frame No
O. Temperature (°C) -20~70
Display Connection Pin
Pin Nr. 8
Pin Pitch 1.27mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.3"
Resolution 20x2
Active Area (mm) 58.50x9.84
Dot Size 0.45x0.54
B/L color, LCD type B/L white, FSTN black neg
Power supply 3V
Interface I2C
Built-in Controller ST7036i
Structure COG
View Angle 6H
Frame No
O. Temperature (°C) -20~70
Display Connection Pin
Pin Nr. 8
Pin Pitch 1.27mm
Preferred - Not Preferred Not Preferred
