WO2004-05HB#FC

Picture of WO2004-05HB#FC Picture of WO2004-05HB#FC
Character LCD 2.4'' 20x4, Without B/L, FSTN white pos, Transflective, COG, 3V, Interface I2C (IC IST3602), 6 O'clock, Pin connection

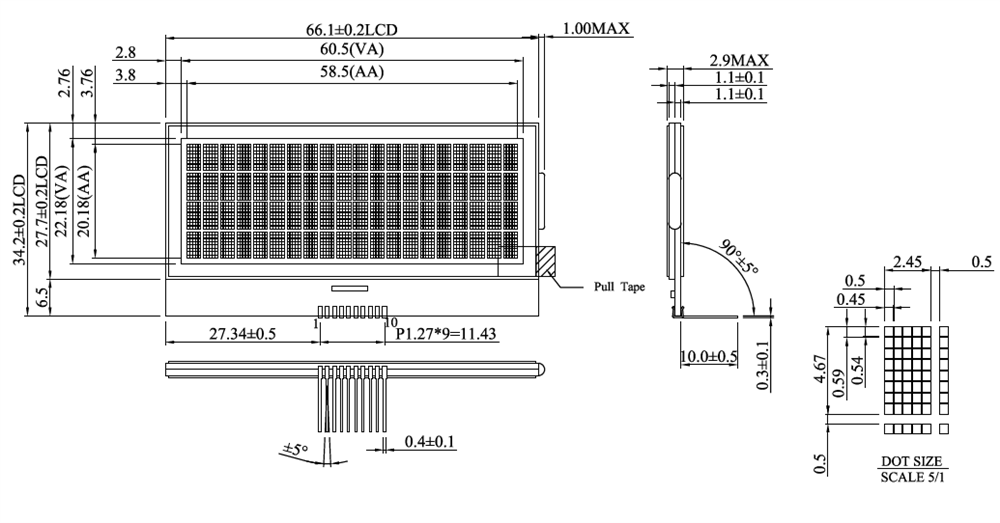

DRAWING

SPECIFICATIONS



Interface Pin Function

PinSymbolFunction Description
1 ITO ESD Ground
2 V0 LCD Power Supply
3 VSS Ground(VSS2&VSS3)
4 VDD Power Supply(VDD2&VDD3)
5 VSS1 Ground(VSS1)
6 VDD1 Power Supply(VDD1)
7 SDA Serial input data
8 SCL Serial input clock
9 RESB Hardware Reset input pin
10 ITO ESD Ground



Mechanical Data

ItemDimensionUnit
Number of Characters 20 characters x 4 Lines
Module dimension 74.3 x 36.4 mm
View area 60.5 x 22.18 mm
Active area 58.5 x 20.18 mm
Dot size 0.45x 0.54 mm
Dot pitch 0.50 x 0.59 mm
Character size 2.45 x 4.67 mm
Character pitch 2.95 x 5.17 mm
Duty 1/33DUTY,1/6BIAS
Backlight Type No Backlight
IC IST3602
Interface I2C



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



SKU: WO2004-05HB#FC
Brand: Winstar
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€6.90
€5.10
€4.90
€4.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€6.90 excl tax

DRAWING

SPECIFICATIONS



Interface Pin Function

PinSymbolFunction Description
1 ITO ESD Ground
2 V0 LCD Power Supply
3 VSS Ground(VSS2&VSS3)
4 VDD Power Supply(VDD2&VDD3)
5 VSS1 Ground(VSS1)
6 VDD1 Power Supply(VDD1)
7 SDA Serial input data
8 SCL Serial input clock
9 RESB Hardware Reset input pin
10 ITO ESD Ground



Mechanical Data

ItemDimensionUnit
Number of Characters 20 characters x 4 Lines
Module dimension 74.3 x 36.4 mm
View area 60.5 x 22.18 mm
Active area 58.5 x 20.18 mm
Dot size 0.45x 0.54 mm
Dot pitch 0.50 x 0.59 mm
Character size 2.45 x 4.67 mm
Character pitch 2.95 x 5.17 mm
Duty 1/33DUTY,1/6BIAS
Backlight Type No Backlight
IC IST3602
Interface I2C



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Products specifications
Brand Winstar
Size 2.4"
Resolution 20x4
Active Area (mm) 58.50x20.18
Dot Size 0.45x0.54
B/L color, LCD type Without B/L, FSTN white pos
Power supply 3V
Display Interface I2C
Display IC IST3602
Constructive Structure COG
View Angle 6H
Frame No
O. Temperature (°C) -20~70
Display Connection Pin
Pin Nr. 10
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 20x4
Active Area (mm) 58.50x20.18
Dot Size 0.45x0.54
B/L color, LCD type Without B/L, FSTN white pos
Power supply 3V
Display Interface I2C
Display IC IST3602
Constructive Structure COG
View Angle 6H
Frame No
O. Temperature (°C) -20~70
Display Connection Pin
Pin Nr. 10
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
