    Character LCD 2.4" 20x4, Without B/L, FSTN white pos, Transflective, COG, 3V/5V, Interface I2C (IC IST3602), 6 O'clock, FPC x ZIF connection
    Manufacturer: Winstar
    SKU: WO2004-05HC#FC
    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €8.90
    €8.00
    €7.60
    €7.40

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €8.90 excl tax
    i h

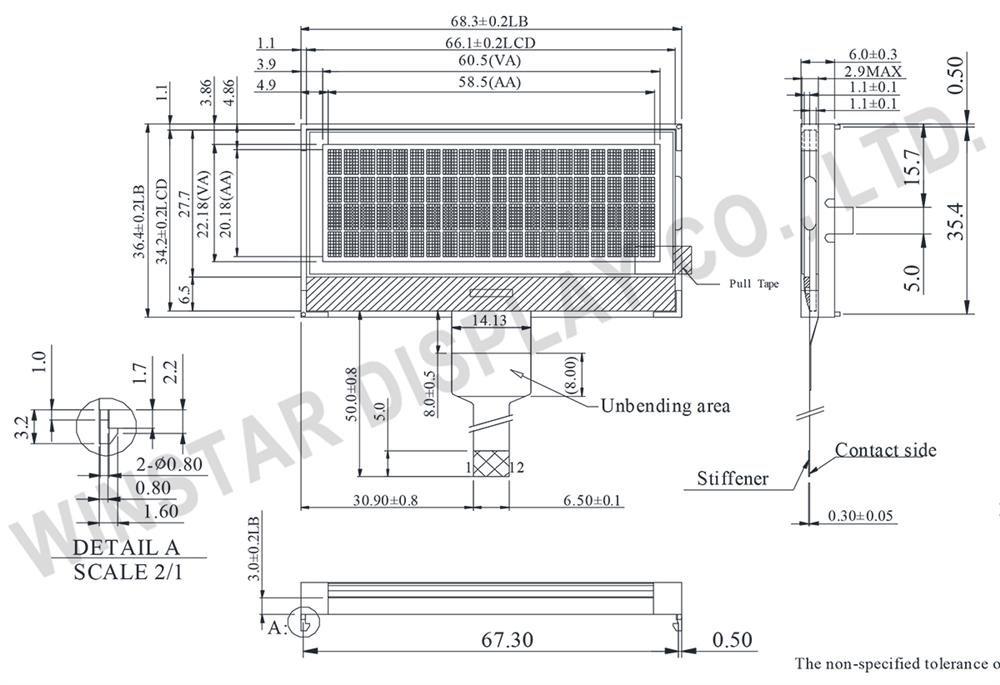

    DRAWING



    SPECIFICATIONS



    Interface Pin Function

    PinSymbolDescription
    1 ITO ESD Ground
    2 V0 LCD Power Supply
    3 VSS Ground(VSS2&VSS3)
    4 VDD Power Supply(VDD2&VDD3)
    5 VSS1 Ground(VSS1)
    6 VDD1 Power Supply(VDD1)
    7 SDA Serial input data
    8 SCL Serial input clock
    9 RESB Hardware Reset input pin
    10 ITO ESD Ground
    11 K LED-
    12 A LED+



    Mechanical Data

    ItemDimensionUnit
    Number of Characters 20 characters x 4 Lines
    Module dimension 68.3 x 36.4 mm
    View area 60.5 x 22.18 mm
    Active area 58.5 x 20.18 mm
    Dot size 0.45x 0.54 mm
    Dot pitch 0.50 x 0.59 mm
    Character size 2.45 x 4.67 mm
    Character pitch 2.95 x 5.17 mm
    Duty 1/33DUTY,1/6BIAS
    IC IST3602
    Interface I2C



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Products specifications
    Brand Winstar
    Size 2.4"
    Resolution 20x4
    Active Area (mm) 58.50x20.18
    Dot Size 0.45x0.54
    B/L color, LCD type Without B/L, FSTN white pos
    Power supply 3V
    Display Interface I2C
    Display IC IST3602
    Constructive Structure COG
    View Angle 6H
    Frame No
    O. Temperature (°C) -20~70
    Data Connection FFC Cable
    Pin Nr. 12
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
