WO2004A-TFH#

Character LCD 2.4'' 20x4, B/L white, FSTN white pos, Transflective, COG, 3V/5V, Interface I2C (IC SSD1803AM1Z), 6 O'clock

NOT RECOMMENDED FOR NEW PROJECTS

Not recommended for new projects. Please contact us for an alternative product at sales@first-components.com.



DESCRIPTION

COG Character 20 x 4 standard LCM module which have the outline size of 74.3 x 36.4 mm, VA size of 60.5 x 22.18 mm. We can offer a variety of pin out connections to suit your requirements. The COG LCM technology is very suitable for the applications that demand more compact package displays. If you are interested in these COG LCD Display 20x4, please contact us.

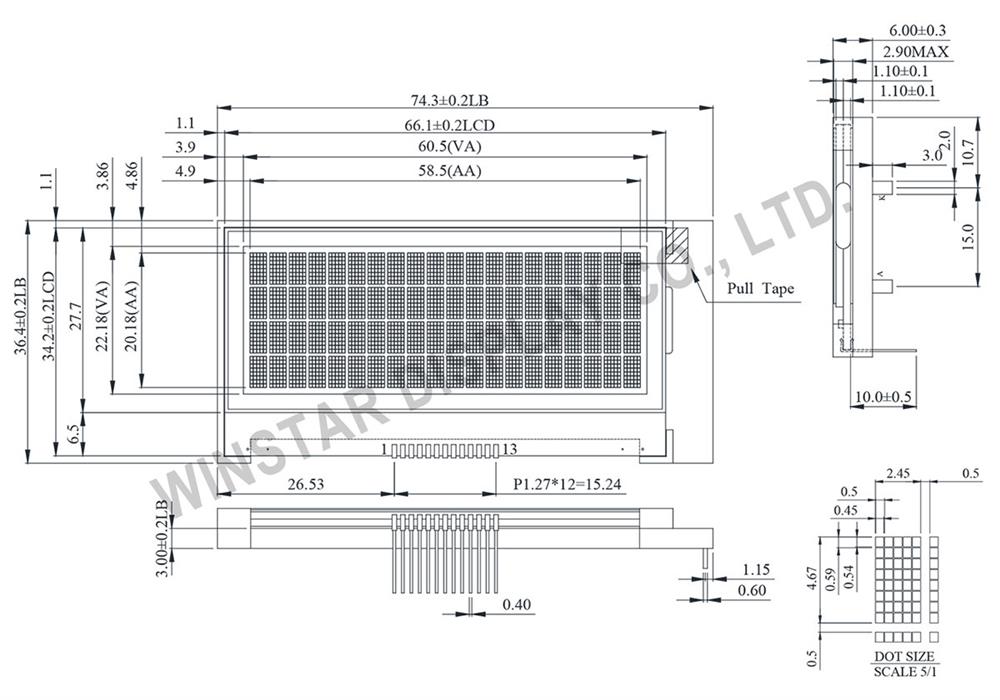

DRAWING

Winstar 20x4 LCD Module, COG LCD Display 20x4 - WO2004A

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 /RES Controller reset signal, Active Low
2 Vout Positive Voltage output
3~7 V0~V4 Bias voltage levels for LCD driving
8 VDD Power supply for logic
9 VDDREG Enable VDD regulator in 5V I/O Application:
10 VDDIO Power supply for logic
11 VSS Ground
12 SCL Serial clock input
13 SDA Serial input data



Mechanical Data

ItemStandard ValueUnit
Module Dimension 74.3 × 36.4 mm
Viewing Area 60.5 × 22.18 mm
Dot Pitch 0.50 × 0.59 mm
Dot Size 0.45 × 0.54 mm



Electrical Characteristics

ItemSymbolStandard value
typ.
Unit
Input Voltage VDD 3.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 7.80 V


SKU: WO2004-85HA#FC
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€15.10
€11.10
€10.70
€10.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€15.10 excl tax

NOT RECOMMENDED FOR NEW PROJECTS

Not recommended for new projects. Please contact us for an alternative product at sales@first-components.com.



DESCRIPTION

COG Character 20 x 4 standard LCM module which have the outline size of 74.3 x 36.4 mm, VA size of 60.5 x 22.18 mm. We can offer a variety of pin out connections to suit your requirements. The COG LCM technology is very suitable for the applications that demand more compact package displays. If you are interested in these COG LCD Display 20x4, please contact us.


DRAWING

Winstar 20x4 LCD Module, COG LCD Display 20x4 - WO2004A

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 /RES Controller reset signal, Active Low
2 Vout Positive Voltage output
3~7 V0~V4 Bias voltage levels for LCD driving
8 VDD Power supply for logic
9 VDDREG Enable VDD regulator in 5V I/O Application:
10 VDDIO Power supply for logic
11 VSS Ground
12 SCL Serial clock input
13 SDA Serial input data



Mechanical Data

ItemStandard ValueUnit
Module Dimension 74.3 × 36.4 mm
Viewing Area 60.5 × 22.18 mm
Dot Pitch 0.50 × 0.59 mm
Dot Size 0.45 × 0.54 mm



Electrical Characteristics

ItemSymbolStandard value
typ.
Unit
Input Voltage VDD 3.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 7.80 V


Products specifications
Brand Winstar
Size 2.4"
Resolution 20x4
Active Area (mm) 58.50x20.18
Dot Size 0.45x0.54
B/L color, LCD type B/L white, FSTN white pos
Power supply 3V/5V
Display Interface I2C
Display IC SSD1803AM1Z
Constructive Structure COG
View Angle 6H
Frame No
O. Temperature (°C) -20~70
Display Connection Pin
Pin Nr. 13
Pin Pitch 1.27mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 20x4
Active Area (mm) 58.50x20.18
Dot Size 0.45x0.54
B/L color, LCD type B/L white, FSTN white pos
Power supply 3V/5V
Display Interface I2C
Display IC SSD1803AM1Z
Constructive Structure COG
View Angle 6H
Frame No
O. Temperature (°C) -20~70
Display Connection Pin
Pin Nr. 13
Pin Pitch 1.27mm
Preferred - Not Preferred Not Preferred
