WO24064-84IA1#FC

Graphic LCD 5.2" 240x64, B/L white, STN blue neg, Transmissive, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock, Frame

DESCRIPTION

New version // Previous version P/N WO24064-84IA#FC in 'Related Product' section on the bottom page

2.2 inch 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7565P controller or equivalent IC.  It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.  This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.

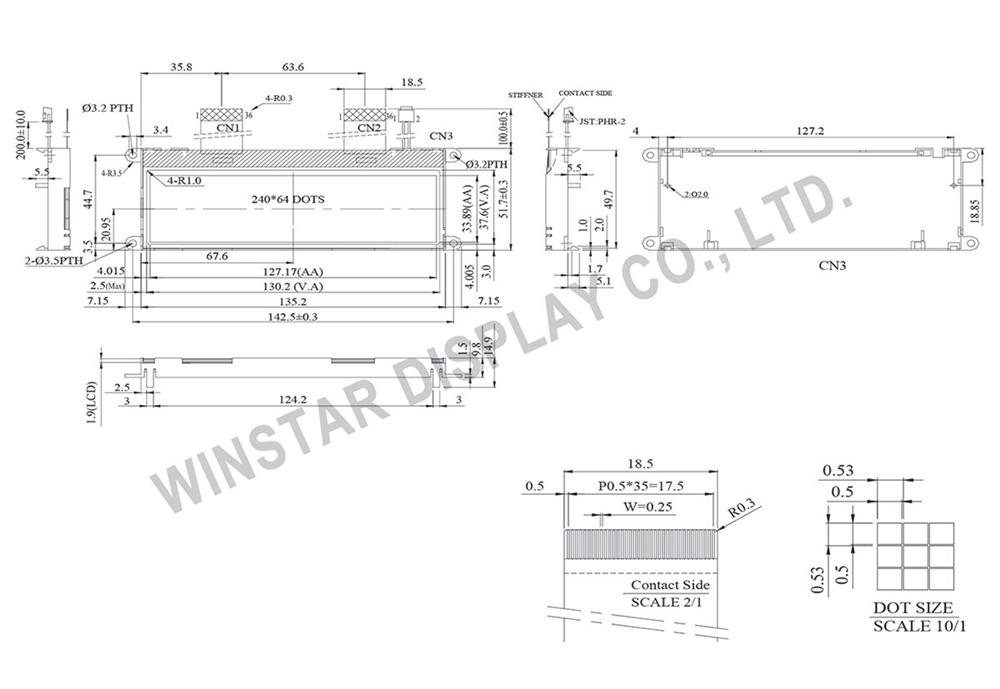

DRAWING

LCD COG Module 240x64 - Winstar WO24064A1

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 NC No connection
2 FR Scan start-up signal
3 CL External clock 2KHZ
4 /DOF This is the LCD blanking control terminal.
5 /CS1 The chip select signal
6 CS2 The chip select signal
7 /RES Controller reset signal, Active Low
8 A0 Data/ Instruction select signal
9 /WR Data write. Write data into LCD Controller
10 /RD Data read. Read data from LCD Controller
11~18 DB0~DB7 Data bus line
19 VDD Power supply for logic
20 VSS Ground
21 Vout Positive Voltage output
22 C3+ DC/DC voltage converter.
23 C1- DC/DC voltage converter.
24 C1+ DC/DC voltage converter.
25 C2+ DC/DC voltage converter.
26 C2- DC/DC voltage converter.
27~31 V4~V0 Bias voltage levels for LCD driving
32 VR LCD Contrast Adjustment when IRS = “L”
33 C86 Interface selection 6800/8080
34 P/S Selects the interface type: Serial or Parallel.
35~36 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 142.5 × 51.7 mm
Viewing Area 130.2 × 37.6 mm
Mounting Hole 135.2 × 44.7 mm
Dot Pitch 0.53 × 0.53 mm
Dot Size 0.50 × 0.50 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.3 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 11.0 V


SKU: WO24064-84IA1#FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€47.40
€39.50
€38.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€47.40 excl tax

DESCRIPTION

New version // Previous version P/N WO24064-84IA#FC in 'Related Product' section on the bottom page

2.2 inch 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7565P controller or equivalent IC.  It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.  This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.

DRAWING

LCD COG Module 240x64 - Winstar WO24064A1

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 NC No connection
2 FR Scan start-up signal
3 CL External clock 2KHZ
4 /DOF This is the LCD blanking control terminal.
5 /CS1 The chip select signal
6 CS2 The chip select signal
7 /RES Controller reset signal, Active Low
8 A0 Data/ Instruction select signal
9 /WR Data write. Write data into LCD Controller
10 /RD Data read. Read data from LCD Controller
11~18 DB0~DB7 Data bus line
19 VDD Power supply for logic
20 VSS Ground
21 Vout Positive Voltage output
22 C3+ DC/DC voltage converter.
23 C1- DC/DC voltage converter.
24 C1+ DC/DC voltage converter.
25 C2+ DC/DC voltage converter.
26 C2- DC/DC voltage converter.
27~31 V4~V0 Bias voltage levels for LCD driving
32 VR LCD Contrast Adjustment when IRS = “L”
33 C86 Interface selection 6800/8080
34 P/S Selects the interface type: Serial or Parallel.
35~36 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 142.5 × 51.7 mm
Viewing Area 130.2 × 37.6 mm
Mounting Hole 135.2 × 44.7 mm
Dot Pitch 0.53 × 0.53 mm
Dot Size 0.50 × 0.50 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.3 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 11.0 V


Products specifications
Brand Winstar
Size 5.2"
Resolution 240x64
Active Area (mm) 127.17x33.89
Dot Size 0.50x0.50
B/L color, LCD type B/L white, STN blue neg
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7565S
Constructive Structure COG
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.2"
Resolution 240x64
Active Area (mm) 127.17x33.89
Dot Size 0.50x0.50
B/L color, LCD type B/L white, STN blue neg
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7565S
Constructive Structure COG
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
