WO256128-85HA#FC

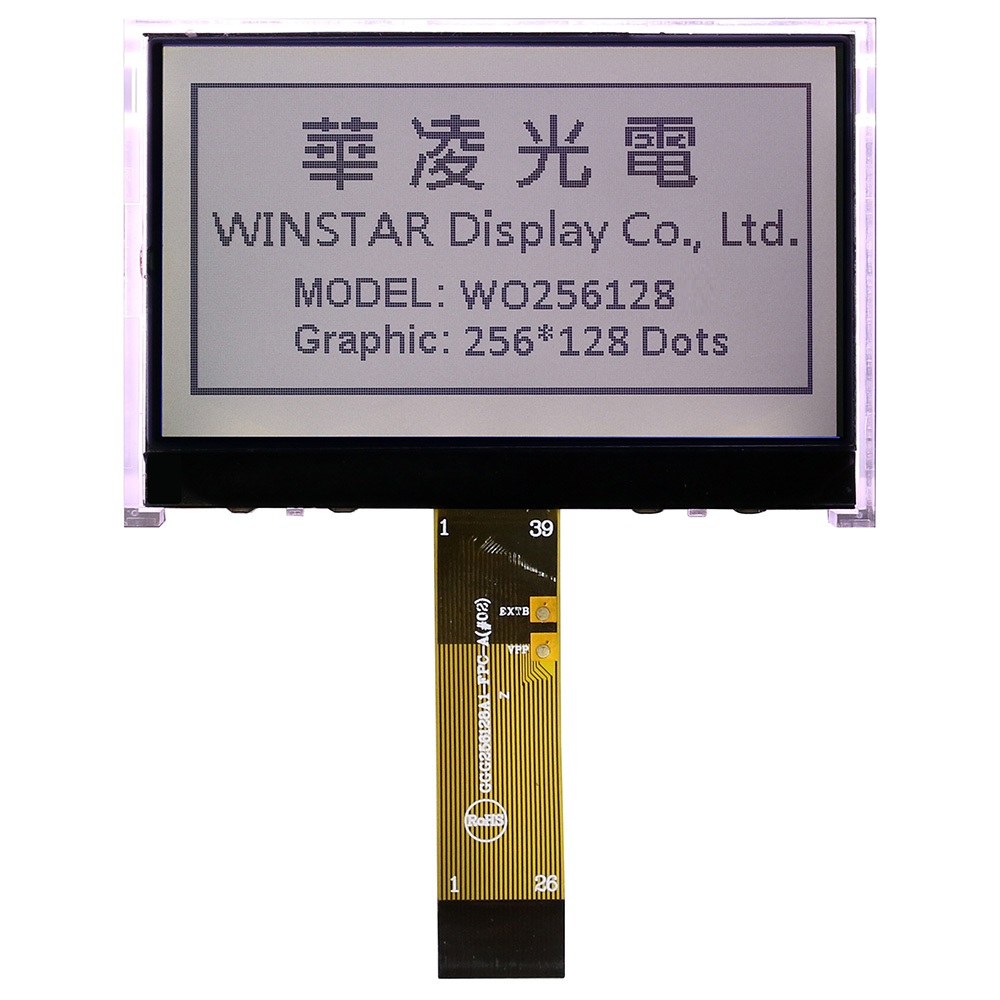

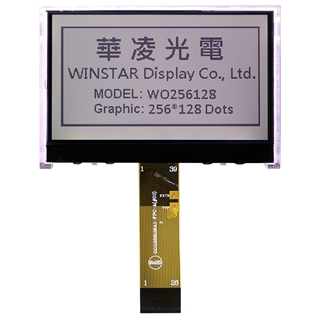

Picture of WO256128-85HA#FC Picture of WO256128-85HA#FC
Graphic LCD 2.9" 256x128, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI/I2C

MOQ

After sample PO, MP MOQ 500pcs



DESCRIPTION

Monochrome graphic LCD module made of 256x128 pixels, diagonal size 2.9 inch. This LCD Module is built in with ST75256 controller IC, it supports 6800 8-bit, 8080 8-bit parallel and 4-wire serial SPI and I2C interface. It has the same outline dimension, and VA size and same power supply 3.3V as WO12864-XXXD3#FC, but it has a much higher resolution and performance: the customers don’t have to change the mechanical design for their applications.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. It is available for different LCD mode options, STN Negative, FSTN Negative (Double film) and FSTN positive and with LED backlight options, like white LED. Please contact with us if you need different LCD type and LED combination.



DRAWING

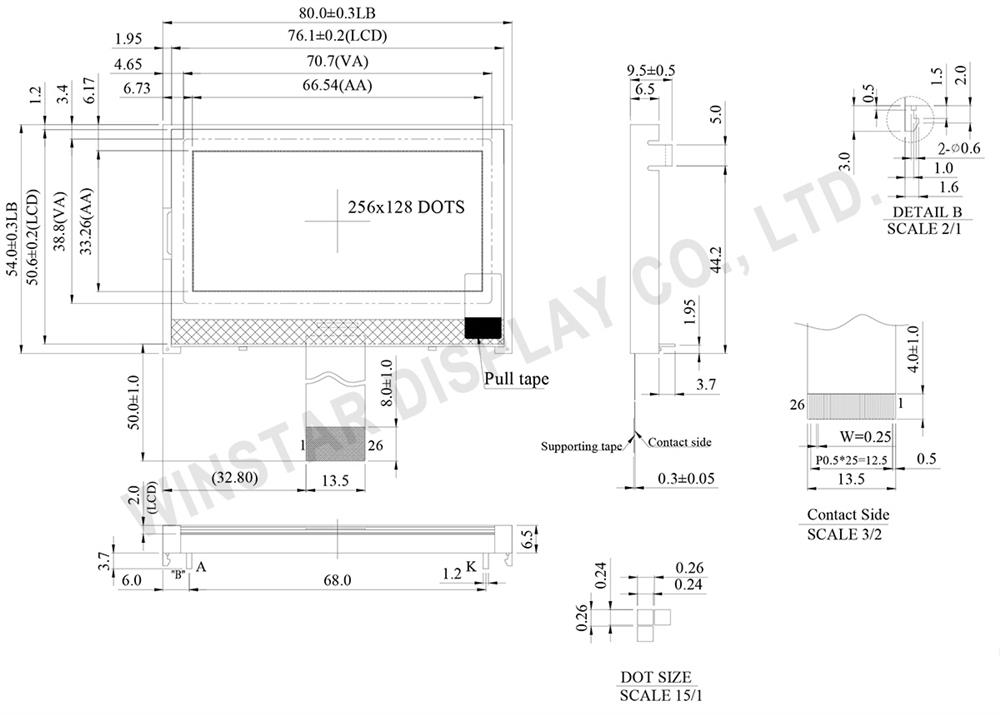

Graphic COG LCD 256x128, 256x128 LCD - WO256128A



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 ITOGND ESD PIN
2 VG Power of SEG-drivers
3 V0 Positive operating voltage of COM-drivers
4 XV0 Negative operating voltage of COM-drivers
5  CA1P DC/DC Voltage converte pin
6 CA1N DC/DC Voltage converte pin
7 VDDA +3.3V
8 VDD +3.3V
9 VSS ground
10 COMSCN Set scan directing of COM
11 IF1 These pins select interface operation mode
IF1IF0MPU interface type
L L 4-line serial interface
L H IIC serial interface
H L 8-bit 6800 parallel interface
H H 8-bit 8080 parallel interface
Note: Refer to "Parallel / Serial Interface" for detailed information. 　
12 IF0
13 CSB Chip select input pin
14 A0 Whether the access is related to data or command
15 ERD Read or write enable terminal
16 RWR Read/Write execution control pin
17 RSTB Reset input pin
18~25 D0~D7 Data bus line
26 ITOGND ESD PIN



Mechanical Data

ItemDimensionUnit
Number of dots 256 × 128 －
Module dimension 80.0 × 54.0 × 9.5 mm
View area 70.7 × 38.8 mm
Active area 66.54 × 33.26 mm
Dot size 0.24 × 0.24 mm
Dot pitch 0.26 × 0.26 mm
Drive Method 1/128 DUTY,1/12 BIAS
Backlight Type LED
IC ST75256i
Interface 4-Line SPI/IIC/8-bit 6800/8-bit 8080



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃
MPU Interface Input Voltage VIN -0.3 － VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 － 4.0 V
LCD Power supply voltage V0- XV0 -0.3 － 19.0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 3 3.3 3.6 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
14.2
－		 －
14.5
－		 －
14.8
－		 V
V
V
Input High Volt. VIH － 0.7 VDD － VDD V
Input Low Volt. VIL － VSS － 0.3 VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － VSS － 0.2 VDD V
Supply Current IDD VDD=3.3V － 1.5 － mA


SKU: WO256128-85HA#FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€14.70
€10.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€14.70 excl tax

MOQ

After sample PO, MP MOQ 500pcs



DESCRIPTION

Monochrome graphic LCD module made of 256x128 pixels, diagonal size 2.9 inch. This LCD Module is built in with ST75256 controller IC, it supports 6800 8-bit, 8080 8-bit parallel and 4-wire serial SPI and I2C interface. It has the same outline dimension, and VA size and same power supply 3.3V as WO12864-XXXD3#FC, but it has a much higher resolution and performance: the customers don’t have to change the mechanical design for their applications.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. It is available for different LCD mode options, STN Negative, FSTN Negative (Double film) and FSTN positive and with LED backlight options, like white LED. Please contact with us if you need different LCD type and LED combination.



DRAWING

Graphic COG LCD 256x128, 256x128 LCD - WO256128A



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 ITOGND ESD PIN
2 VG Power of SEG-drivers
3 V0 Positive operating voltage of COM-drivers
4 XV0 Negative operating voltage of COM-drivers
5  CA1P DC/DC Voltage converte pin
6 CA1N DC/DC Voltage converte pin
7 VDDA +3.3V
8 VDD +3.3V
9 VSS ground
10 COMSCN Set scan directing of COM
11 IF1 These pins select interface operation mode
IF1IF0MPU interface type
L L 4-line serial interface
L H IIC serial interface
H L 8-bit 6800 parallel interface
H H 8-bit 8080 parallel interface
Note: Refer to "Parallel / Serial Interface" for detailed information. 　
12 IF0
13 CSB Chip select input pin
14 A0 Whether the access is related to data or command
15 ERD Read or write enable terminal
16 RWR Read/Write execution control pin
17 RSTB Reset input pin
18~25 D0~D7 Data bus line
26 ITOGND ESD PIN



Mechanical Data

ItemDimensionUnit
Number of dots 256 × 128 －
Module dimension 80.0 × 54.0 × 9.5 mm
View area 70.7 × 38.8 mm
Active area 66.54 × 33.26 mm
Dot size 0.24 × 0.24 mm
Dot pitch 0.26 × 0.26 mm
Drive Method 1/128 DUTY,1/12 BIAS
Backlight Type LED
IC ST75256i
Interface 4-Line SPI/IIC/8-bit 6800/8-bit 8080



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃
MPU Interface Input Voltage VIN -0.3 － VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 － 4.0 V
LCD Power supply voltage V0- XV0 -0.3 － 19.0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 3 3.3 3.6 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
14.2
－		 －
14.5
－		 －
14.8
－		 V
V
V
Input High Volt. VIH － 0.7 VDD － VDD V
Input Low Volt. VIL － VSS － 0.3 VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － VSS － 0.2 VDD V
Supply Current IDD VDD=3.3V － 1.5 － mA


Products specifications
Brand Winstar
Size 2.9"
Resolution 256x128
Active Area (mm) 66.54x33.26
Dot Size 0.26x0.26
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI/I2C
Display IC ST75256
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 26
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.9"
Resolution 256x128
Active Area (mm) 66.54x33.26
Dot Size 0.26x0.26
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI/I2C
Display IC ST75256
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 26
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
