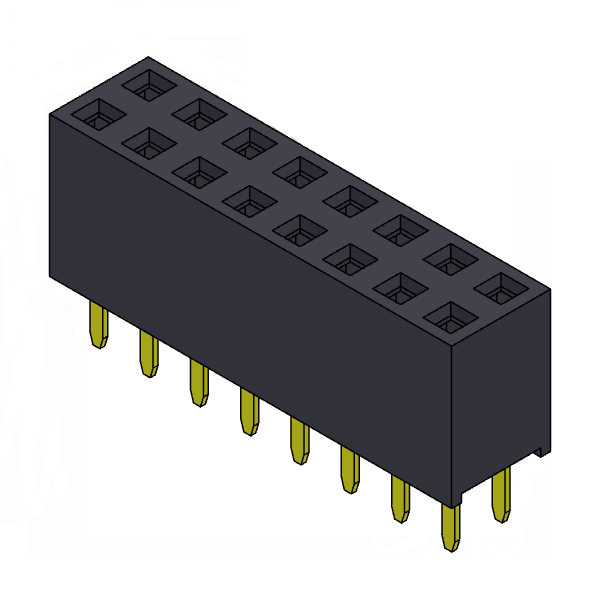

CSHA221-0802A001R1AC-Q5

Female Header - Straight Contact, Dual Row, 8 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 4-6,50mm)

Specifications

Current Rating：3.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 600VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC

Material

Contact Material：Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0

Dimensions

SKU: CSHA221-0802A001R1AC-Q5

Brand: Greenconn

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Prezzi per quantità

Quantità

10+

25+

50+

100+

Prezzo

€0,59

€0,50

€0,48

€0,44

€0,40

€0,34

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€0,59 IVA esclusa

Overview
Specifiche
Download
Contattaci

Specifications

Current Rating：3.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 600VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC

Material

Contact Material：Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0

Dimensions

Specifiche di prodotto
