NT043-C002WS

TFT 4.3'' 480x272, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 400cd/m², Frame, Capacitive touch panel I2C interface (GG, ILI2130 IC)

DESCRIPTION

The NT043-C002WS display is a 4.3'' Next Vision Display TFT module with Capacitive Touch Panel.  This module provides the following innovative advantages to offer outstanding performance for colorful displays:

  • It integrates a 36 pin-out connector on SSD1963 controller board and all connectors are the same direction.
  • It is available in 8 bit and 16 bit parallel interface options.
  • The pin no. 33 ~ 36 already pre-defined as backlight supply.
  • Built in backlight driver IC, this TFT display can be drive by 5.0V (3.5" and 4.3" also support 3.3V). The customers do not have to change the backlight driver circuits while change the TFT module sizes.

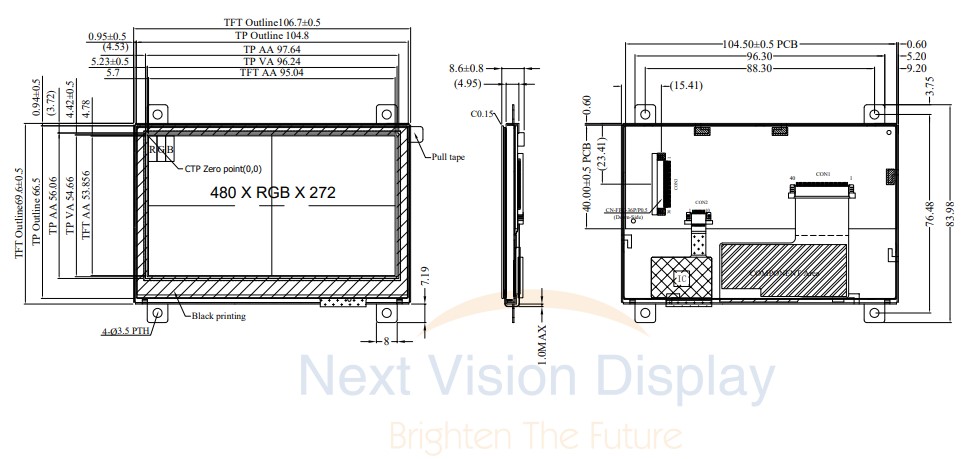

DRAWING



SPECIFICATIONS

Interface

PinSymbolFunction
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 D0~D7 Data bus
15~22 D8~D15 Data bus (When select 8bits mode, this pin is NC)
23 NC No connection
24 CTP_INT External interrupt to the host
25 CS Chip select
26 RESET Hardware reset
27 DIP ON Display control H: On \ L:Off
28 NC No connection
29 CTP_SCL Active low I2C clock input
30 CTP_SDA Data input I2C data input and output
31 CTP_RST External Reset, Low is active
32 NC No connection
33~34 VLED- VLED- for B/L LED inverter (GND)
35~36 VLED+ VLED+ for B/L LED inverter (+3.3V)



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 106.7 × 83.98 × 8.6 mm
Active area 95.04 × 53.856 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC SSD1963
TFT Interface Digital 8080 family MPU 8bit/16bit
PCAP FW Version 0x07.0x00.0x00.0x00.0x01.0x0C.0x11.0x43
PCAP IC ILI2130 or equivalent
PCAP Resolution 16384*16384
PCAP Interface I2C
Touch Panel Projected capacitive touch panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.1 3.3 V
Supply Current For LCM IDD 210 350 mA

Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"
SKU: NT043-C002WS
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€66,40
€58,70
€50,30

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€66,40 IVA esclusa

DESCRIPTION

The NT043-C002WS display is a 4.3'' Next Vision Display TFT module with Capacitive Touch Panel.  This module provides the following innovative advantages to offer outstanding performance for colorful displays:

  • It integrates a 36 pin-out connector on SSD1963 controller board and all connectors are the same direction.
  • It is available in 8 bit and 16 bit parallel interface options.
  • The pin no. 33 ~ 36 already pre-defined as backlight supply.
  • Built in backlight driver IC, this TFT display can be drive by 5.0V (3.5" and 4.3" also support 3.3V). The customers do not have to change the backlight driver circuits while change the TFT module sizes.

DRAWING



SPECIFICATIONS

Interface

PinSymbolFunction
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 D0~D7 Data bus
15~22 D8~D15 Data bus (When select 8bits mode, this pin is NC)
23 NC No connection
24 CTP_INT External interrupt to the host
25 CS Chip select
26 RESET Hardware reset
27 DIP ON Display control H: On \ L:Off
28 NC No connection
29 CTP_SCL Active low I2C clock input
30 CTP_SDA Data input I2C data input and output
31 CTP_RST External Reset, Low is active
32 NC No connection
33~34 VLED- VLED- for B/L LED inverter (GND)
35~36 VLED+ VLED+ for B/L LED inverter (+3.3V)



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 106.7 × 83.98 × 8.6 mm
Active area 95.04 × 53.856 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC SSD1963
TFT Interface Digital 8080 family MPU 8bit/16bit
PCAP FW Version 0x07.0x00.0x00.0x00.0x01.0x0C.0x11.0x43
PCAP IC ILI2130 or equivalent
PCAP Resolution 16384*16384
PCAP Interface I2C
Touch Panel Projected capacitive touch panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.1 3.3 V
Supply Current For LCM IDD 210 350 mA

Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"
Specifiche di prodotto
Brand Next Vision Display
Size 4.3"
Risoluzione 480x272
Area Attiva (mm) 95.04x53.85
Colore Full Color
Interfaccia Display MCU (Parallel)
Display IC SSD1963
Angolo Visione TN
Frame Yes
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 36
Passo Pin 0.5mm
IC Controller Touch Panel ILI2130
Preferred - Not Preferred Preferred
