    TFT 15.6" 1920x1080, HDMI Interface, 380cd/m², Wide View Angle (IPS), No Touch
    Cod.: NT156-N001ML

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €202,20
    €181,90
    €171,00

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €202,20 IVA esclusa
    i h

    DESCRIPTION

    The NT156-N001ML model is a Color TFT LCD supplied by Next Vision Display.
    This main Module has a 15.6 inch diagonally measured active display area with 1920(RGB)X1080 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes.
    The NT156-N001ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast.



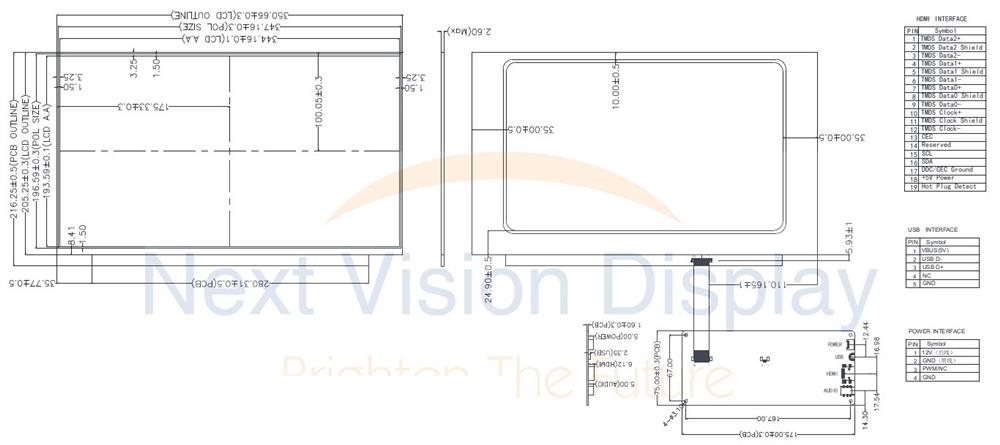

    DRAWING



    SPECIFICATIONS

    Interface Pin Connections

    HDMI interface

    No.SymbolDescription
    1 TMDS Data2+ Positive side of channel 2. TMDS low-voltage signal differential input pair
    2 TMDS Data2 Shield Ground
    3 TMDS Data2- Negative side of channel 2. TMDS low-voltage signal differential input pair
    4 TMDS Dara1+ Positive side of channel 1. TMDS low-voltage signal differential input pair
    5 TMDS Data1 Shield Ground
    6 TMDS Data1- Negative side of channel 1. TMDS low-voltage signal differential input pair
    7 TMDS Data0+ Positive side of channel 0. TMDS low-voltage signal differential input pair
    8 TMDS Data0 Shield Ground
    9 TMDS Data0- Negative side of channel 0. TMDS low-voltage signal differential input pair
    10 TMDS Clock+ Positive side of refrence clock. TMDS low-voltage signal differential input pair
    11 TMDS Clock Shiled Ground
    12 TMDS Clock- Negative side of reference clock. TMDS low-voltage signal differential input pair
    13 CEC No Connection
    14 Reserved (N.C.) No Connection
    15 SCL DDC SCL
    16 SDA DDC SDA
    17 DDC/CEC Ground Ground
    18 +5V Power +5V Power
    19 Hot Plug Detect Hot Plug Detect



    USB TOUCH interface

    No.SymbolDescription
    1 VUSB USB Power(5V)
    2 D- USB Data-
    3 D+ USB Data+
    4 NC No connection
    5 GND Power Ground



    Mechanical Data

    ItemStandard ValueUnit
    Display Mode Normally White, Transmissive LCD -
    Module Dimension 350.66x216.25x2.60 mm
    Resolution 1920(RGB)x1080 Pixels
    Active Display Area 344.16x193.59 mm
    Viewing Angle Free -
    Gray inversion direction Free
    LED Backlight Color White -
    Interface LCD:HDMI -
    Power Supply External 12V  -
    System Support Win7/Win8/Win10(Plug and play)
    Android/Linux (need to be configured first)



    Absolute Maximum Ratings

    ItemMinTypMaxUnitRemark
    Operating Temperature 0 - 50 °C
    Storage Temperature -20 - 60 °C
    Humidity - - 90% RH @60°C



    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Power Supply Voltage Power 9.0 12.0 16.0 V
    Specifiche di prodotto
    Brand Next Vision Display
    Size 15.6"
    Resolution 1920x1080
    Active Area (mm) 344.16x193.59
    Color Full Color
    Display Interface HDMI
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection HDMI Connector
