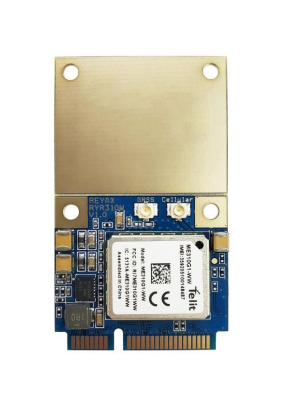

RYR310W

CAT-M1 / NB-IoT NB2 / GNSS Engine, ME310G1-WW (Worldwide), USB type
  • TELIT ME310G1-WW CAT-M1 / NB-IoT NB2 / GSM / GPRS / GNSS engine
  • Build-in nano SIM card holder.
  • HIROSE U.FL-R-SMT-1 RF CONNECTOR.
  • Standard mini PCIe full-size 30mm*50.95mm / half-size 30mm*26.8mm.
  • USB 2.0 / UART interface option.
  • eSIM support option.

The RYR310W is based on the PCI Express Mini Card standard with a USB 2.0 interface.

Item Min. Typ Max. Unit Description
Operating Voltage Power Input 3 03.03 05.05 V VCC
Current     2 A
VIH 01.25 01.08 0,10764 V High level input voltage
VIL     00.06 V Low-level input voltage
VOH 01.04 01.08   V High level output voltage
VOL     00.45 V Low level output voltage
USB Interface         V2.0
Operating Temperature Range -40 25 85 ˚C
Antenna Connector   2     U.FL-R-SMT-1
Weight   11   g
SKU: RYR310W
Brand: Reyax
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
Prezzo
€28,40
€27,50

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€28,40 IVA esclusa
  • TELIT ME310G1-WW CAT-M1 / NB-IoT NB2 / GSM / GPRS / GNSS engine
  • Build-in nano SIM card holder.
  • HIROSE U.FL-R-SMT-1 RF CONNECTOR.
  • Standard mini PCIe full-size 30mm*50.95mm / half-size 30mm*26.8mm.
  • USB 2.0 / UART interface option.
  • eSIM support option.

The RYR310W is based on the PCI Express Mini Card standard with a USB 2.0 interface.

Item Min. Typ Max. Unit Description
Operating Voltage Power Input 3 03.03 05.05 V VCC
Current     2 A
VIH 01.25 01.08 0,10764 V High level input voltage
VIL     00.06 V Low-level input voltage
VOH 01.04 01.08   V High level output voltage
VOL     00.45 V Low level output voltage
USB Interface         V2.0
Operating Temperature Range -40 25 85 ˚C
Antenna Connector   2     U.FL-R-SMT-1
Weight   11   g
