    WEA128128L#AA3N00000-FC

    PMOLED 1.5" Graphic 128x128, Yellow, COG + PCB, 3~5V, Interface SPI, Anti-glare
    Brand: Winstar
    Cod.: WEA128128L#AA3N00000-FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €17,10
    €15,40
    €14,40
    €14,10

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €17,10 IVA esclusa
    i h

    DESCRIPTION

    WEA128128x#Axxxxxxxx-FC model is the extension item of WEO128128x#Axx-FC which is having a PCB board on module; it’s diagonal size 1.5 inch, made of 128x128 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. WEA128128x#Axxxxxxxx-FC OLED module is built in with SSD1327 IC; it supports 4-wire SPI interface; optional I2C interface, 16 (4bits) gray scale, driving duty 1/128, supply voltage for logic is from 3.3V ~5V, the display with 50% Check board current is 160 mA @3.3VDD (typical value).

    This OLED module is suitable for smart home application, medical device, smart control, meter, etc. WEA128128x#Axxxxxxxx-FC module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



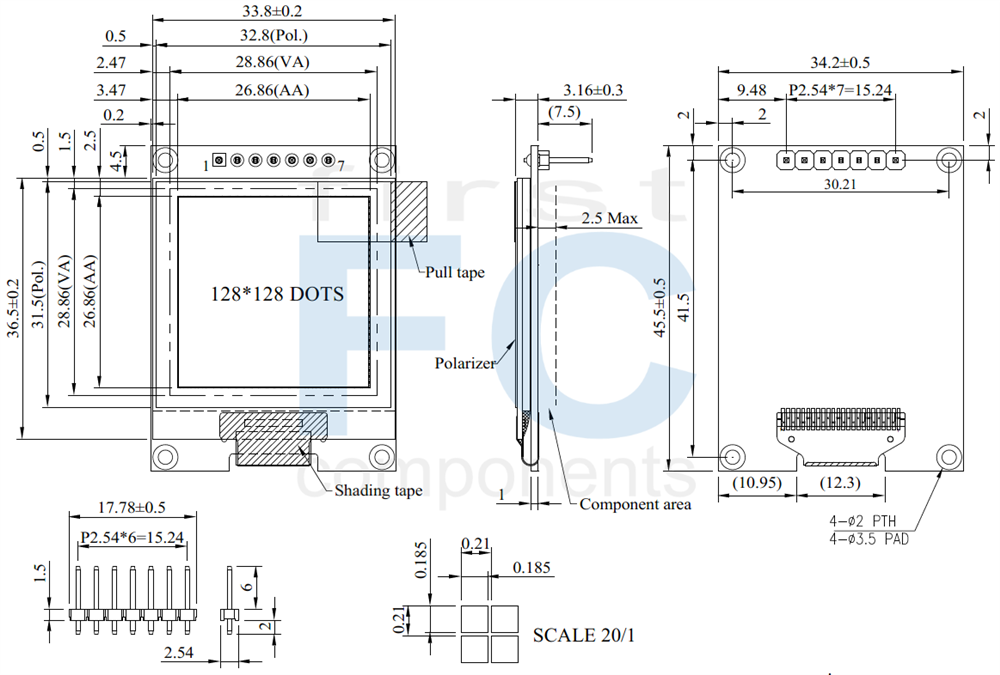

    DRAWING

    OLED 1.5 inch,1.5 OLED Display, 1.5 inch OLED Display, 1.5 inch OLED Module - WEA128128A



    SPECIFICATIONS

    Interface Pin Function

    No.SymbolFunction
    1 GND This is a ground pin.
    2 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin. It is supplied by external high voltage source.
    3 D0 These pins are bi-directional data bus connecting to the MCU data bus.
    Unused pins are recommended to tie LOW.
    When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
    4 D1
    5 RES# This pin is reset signal input.
    When the pin is pulled LOW, initialization of the chip is executed.
    Keep this pin pull HIGH during normal operation.
    6 D/C# This pin is Data/Command control pin connecting to the MCU.
    When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
    When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
    7 CS# This pin is the chip select input connecting to the MCU.
    The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).



    General Specification

    ItemDimensionUnit
    Dot Matrix 128 x 128 Dots -
    Module dimension 34.2 x 45.5 x 3.16 mm
    Active Area 26.86 x 26.86 mm
    Pixel Size 0.185 x 0.185 mm
    Pixel Pitch 0.210 x 0.210 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/128 Duty
    Gray Scale 4 bits
    IC SSD1327
    Interface 4-Wire SPI option I2C
    Size 1.5 inch



    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    Supply Voltage for Logic VCC 1.65 5.5 V
    Operating Temperature TOP -40 +80 °C
    Storage Temperature TSTG -40 +85 °C



    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic(3V/5V) VCC - 2.8 3.3 5.2 V
    Input High Volt. VIH - 0.8×VCC - VCC V
    Input Low Volt. VIL - 0 - 0.2×VCC V
    Output High Volt. VOH - 0.9×VCC - VCC V
    Output Low Volt. VOL - 0 - 0.1×VCC V
    50% Check Board operating Current ICC VCC=3.3V - 160 320 mA

    Specifiche di prodotto
    Size 1.5"
    Resolution 128x128
    Active Area (mm) 26.86x26.86
    Dot Size 0.18x0.18
    Polarizer Anti-glare
    Color Yellow
    Power supply 3~5V
    Display Interface SPI
    Display IC SSD1327
    Constructive Structure COG + PCB
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection Pin Strip
    Pin Nr. 7
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
