WEA12864W#LP3N00F00-FC

PMOLED 1.28'' Graphic 128x64, White, COG + PCB, 3~5V, Interface SPI, Glare

DESCRIPTION

Graphic COG with PCB OLED module, which is made of resolution 128x64 pixels, diagonal size 1.28 inch. It is built in with SH1106G IC; it supports SPI interface, 1/64 driving duty. This model has PCB outline size 35.50×32.0 mm with mounting holes on board and 7x1 metal pins on module.

The supply voltage for logic is 3V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 25mA@3.3VDD (typical value). Operating temperatures from -40℃ to +80℃; storage temperatures from -40℃ to +85℃.

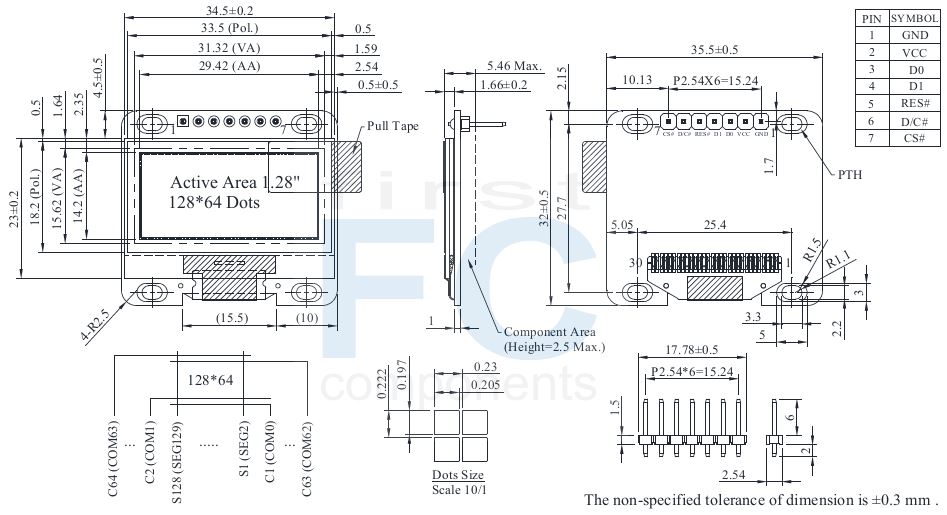

DRAWING



SPECIFICATIONSInterface Pin Function



Symbol

Function

1

VCC

Power supply input: 2.9 – 5.2V

2

GND

Ground

3

SCL

When the SPI interface is selected, then D0 serves as the serial clock input pad (SCL) and D1
serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.

4

SDA



Mechanical Data

Item

Dimension

Unit

Dot Matrix

128 × 64 Dots

Module dimension

35.50 × 32.00 × 2.66

mm

Active Area

29.42 × 14.20

mm

Pixel Size

0.205 × 0.197

mm

Pixel Pitch

0.230 × 0.222

mm

Display Mode

Passive Matrix

Display Color

White

Drive Duty

1/64 Duty

Controller IC

SH1106G

Interface

SPI

Size

1.28 inch



Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Supply Voltage for Logic

VCC

1.65

5.5

V

Operating Temperature

TOP

-40

+80

°C

Storage Temperature

TSTG

-40

+85

°C



Electronical Characteristics

DC Electrical Characteristics

Item

Symbol

Condition

Min

Typ

Max

Unit

Supply Voltage for Logic

VCC

2.9

3.3

5.2

V

Input High Volt.

VIH

0.8×VCC

VCC

V

Input Low Volt.

VIL

0

0.2×VCC

V

Output High Volt.

VOH

0.9×VCC

VCC

V

Output Low Volt.

VOL

0

0.1×VCC

V

50% Check Board operating Current

ICC

VCC =3.3V

-

25

37.5

mA

SKU: WEA12864W#LP3N00F00-FC
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€12,10
€8,80
€8,50
€8,20

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€12,10 IVA esclusa

DESCRIPTION

Graphic COG with PCB OLED module, which is made of resolution 128x64 pixels, diagonal size 1.28 inch. It is built in with SH1106G IC; it supports SPI interface, 1/64 driving duty. This model has PCB outline size 35.50×32.0 mm with mounting holes on board and 7x1 metal pins on module.

The supply voltage for logic is 3V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 25mA@3.3VDD (typical value). Operating temperatures from -40℃ to +80℃; storage temperatures from -40℃ to +85℃.



DRAWING



SPECIFICATIONSInterface Pin Function



Symbol

Function

1

VCC

Power supply input: 2.9 – 5.2V

2

GND

Ground

3

SCL

When the SPI interface is selected, then D0 serves as the serial clock input pad (SCL) and D1
serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.

4

SDA



Mechanical Data

Item

Dimension

Unit

Dot Matrix

128 × 64 Dots

Module dimension

35.50 × 32.00 × 2.66

mm

Active Area

29.42 × 14.20

mm

Pixel Size

0.205 × 0.197

mm

Pixel Pitch

0.230 × 0.222

mm

Display Mode

Passive Matrix

Display Color

White

Drive Duty

1/64 Duty

Controller IC

SH1106G

Interface

SPI

Size

1.28 inch



Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Supply Voltage for Logic

VCC

1.65

5.5

V

Operating Temperature

TOP

-40

+80

°C

Storage Temperature

TSTG

-40

+85

°C



Electronical Characteristics

DC Electrical Characteristics

Item

Symbol

Condition

Min

Typ

Max

Unit

Supply Voltage for Logic

VCC

2.9

3.3

5.2

V

Input High Volt.

VIH

0.8×VCC

VCC

V

Input Low Volt.

VIL

0

0.2×VCC

V

Output High Volt.

VOH

0.9×VCC

VCC

V

Output Low Volt.

VOL

0

0.1×VCC

V

50% Check Board operating Current

ICC

VCC =3.3V

-

25

37.5

mA

Specifiche di prodotto
Brand Winstar
Size 1.28"
Risoluzione 128x64
Area Attiva (mm) 29.42x14.20
Dot Size 0.20x0.19
Polarizzatore Glare
Colore White
Alimentazione 3~5V
Interfaccia Display SPI
Display IC SH1106
Struttura Costruttiva COG + PCB
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display Strip Connector
Nr. Pin 7
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
