WEA12864S#LA3N00000-FC

PMOLED 1.28'' Graphic 128x64, Sky Blue, COG + PCB, 3~5V, Interface I2C, Glare

DESCRIPTION

Graphic COG with PCB OLED module, which is made of resolution 128x64 pixels, diagonal size 1.28 inch. It is built in with SH1106G IC; it supports SPI interface, 1/64 driving duty. This model has PCB outline size 35.50×32.0 mm with mounting holes on board and 4x1 metal pins on module.

The supply voltage for logic is 3V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 25mA@3.3VDD (typical value). Operating temperatures from -40℃ to +80℃; storage temperatures from -40℃ to +85℃.

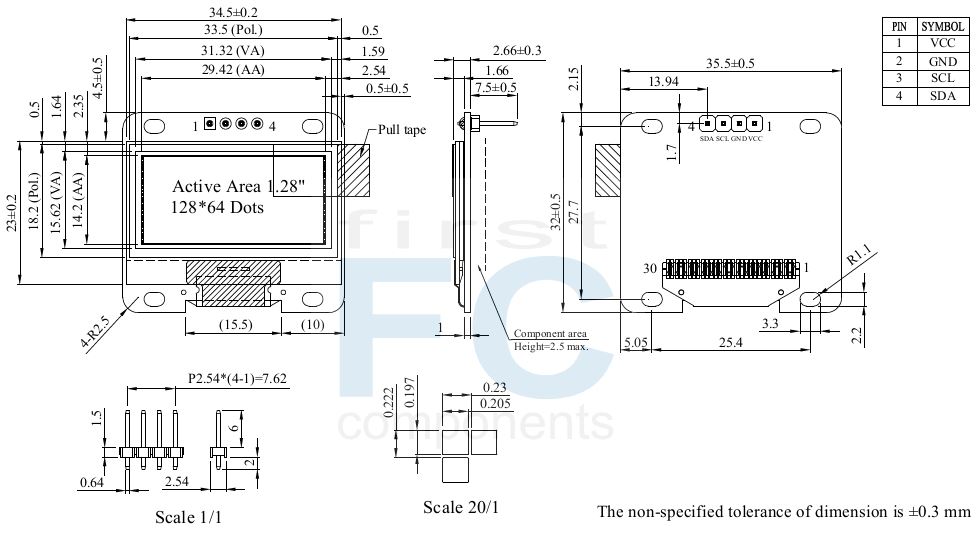

DRAWING

SPECIFICATIONSInterface Pin Function

	Symbol	Function
1	VCC	Power supply input: 2.9 – 5.2V
2	GND	Ground
3	SCL	When the SPI interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
4	SDA

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 × 64 Dots	－
Module dimension	35.50 × 32.00 × 2.66	mm
Active Area	29.42 × 14.20	mm
Pixel Size	0.205 × 0.197	mm
Pixel Pitch	0.230 × 0.222	mm
Display Mode	Passive Matrix
Display Color	Sky Blue
Drive Duty	1/64 Duty
Controller IC	SH1106G
Interface	I2C
Size	1.28 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VCC	1.65	5.5	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VCC	－	2.9	3.3	5.2	V
Input High Volt.	VIH	－	0.8×VCC	－	VCC	V
Input Low Volt.	VIL	－	0	－	0.2×VCC	V
Output High Volt.	VOH	－	0.9×VCC	－	VCC	V
Output Low Volt.	VOL	－	0	－	0.1×VCC	V
50% Check Board operating Current	ICC	VCC =3.3V	-	25	37.5	mA
