    WFN0210DA2#0P15-FC

    TFT 2.1" 480x480, Round LCD Panel, Interface RGB+SPI IC ST7701S, Wide View Angle (IPS), 430 cd/m², Standard Temp., Capacitive touch panel I2C Interface (GG, CST826 IC)
    Brand: Winstar
    Cod.: WFN0210DA2#0P15-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €40,90
    €36,80
    €34,60
    €33,80

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €40,90 IVA esclusa
    i h

    DESCRIPTION

    The WFN0210DA2#0P15-FC is a 2.1-inch 480x480 round TFT display module with an IPS panel that provides wide viewing angles (85/85/85/85) and consistent image quality. Featuring a typical brightness of 430 cd/m² (range: 360–430 cd/m²) and a contrast ratio of 1000:1, this module delivers vibrant visuals suitable for indoor environments.

    It integrates a projected capacitive touch panel (PCAP) with optical bonding for improved clarity and durability. The CST826 touch controller supports single-finger operation via the I²C interface, enabling smooth and responsive interaction. Its high-transmittance surface—referred to as “Pristine”—enhances display sharpness and vibrancy.

    The module uses the ST7701 IC for display driving and supports both 3-wire SPI and 18-bit RGB interfaces, offering flexible integration options. The square 53.28 × 53.28 mm active area provides a true circular display zone, within a compact 71.27 × 71.27 × 3.43 mm form factor that fits seamlessly into space-constrained designs.

    Application Examples

    Thanks to its round form factor, PCAP touch support, and brilliant image clarity, the WFN0210DA2#0P15-FC is ideal for:

    • Smart home control panels
    • HVAC thermostats with touch UI
    • Health and fitness monitoring devices
    • Industrial control interfaces
    • Consumer electronics with circular displays



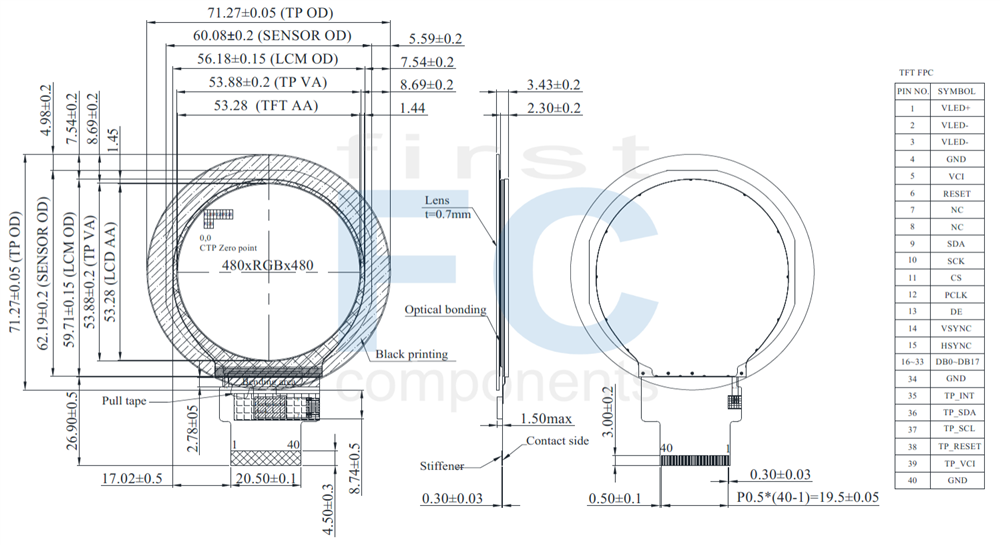

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 2.1 inch
    Dot Matrix 480 x RGB x 480 (TFT) dots
    Module dimension 71.27 x 71.27 x 3.43 mm
    Active area 53.28 x 53.28 mm
    Pixel pitch 0.111 x 0.111 mm
    LCD type TFT, Normally Black, Transmissive
    Viewing Angle 85/85/85/85
    TFT Interface 3W SPI+RGB18bit
    Backlight Type LED, Normally White
    TFT Controller IC ST7701
    CTP Driver IC CST826
    CTP Support Operation Support single-finger touch
    CTP Interface I2C
    CTP FW Version 0X10
    CTP Resolution 480 * 480
    Touch Panel Projected Capacitive Touch Panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Operating Conditions

    ItemSymbolMin.Typ.Max.Unit
    Power supply Voltage VCI 2.6 3.0 3.3 V
    CTP Power supply Voltage TP_VCI 2.8 3.0 3.3 V
    Input Signal Voltage Low Level VIL 0 - 0.3 x VCI V
    High Level VIH 0.7 x VCI - VCI V
    Power supply Voltage IVCI - 24 35 mA
    CTP Power supply Current ICTP_VCI - 10 20 mA


    LED Driving Conditions

    ItemSymbolMin.Typ.Max.Unit
    LED current - - 20 25 mA
    LED voltage VLED+ - 12.8 14 V
    LED Life Time - 30000 - - Hr



    Interface

    LCM PIN Definition

    Match connector: XF2M-4015-1A(OMRON)or equivalent.
    PIN NoSymbolI/ODescription
    1 VLED+ P LED ANODE
    2 VLED- P LED CATHODE
    3 VLED- P LED CATHODE
    4 GND P Ground
    5 VCI P Power supply (VCI=VDD=VCC=VDDI)
    6 RESET I Reset Signal ,Active Low (RESX)
    7 NC - No connect.
    8 NC - No connect.
    9 SDA I SPI Data signal (In: DIN, Out: DOUT)
    10 SCK I SPI Clock signal (SCL)
    11 CS I SPI Chip select signal (CSX)
    12 PCLK I RGB dot clock signal (DOTCLK)
    13 DE I RGB data enable signal (ENABLE)
    14 VSYNC I RGB frame synchronizing signal (VS)
    15 HSYNC I RGB line synchronizing signal (HS)
    16~33 DB0~DB17 I RGB data signal:
    DB0:BLUE LSB--DB5:BLUE MSB; DB6:GREEN LSB--DB11:GREEN,MSB; DB12:RED LSB--DB17:RED MSB.
    34 GND P Ground
    35 TP_INT - Touch Interrupt
    36 TP_SDA - Touch IIC Data signal
    37 TP_SCL - Touch IIC Clock signal
    38 TP_RESET - Touch Reset Signal
    39 TP_VCI - Touch Power supply
    40 GND P Ground
    I:Input, O:Output, P:Power/Ground
    Specifiche di prodotto
    Size 2.1"
    Resolution 480x480
    Active Area (mm) 53.28x53.28
    Color Full Color
    Display Interface RGB+SPI
    Display IC ST7701S
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller CST826
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
