WEA12864W#D08-FC

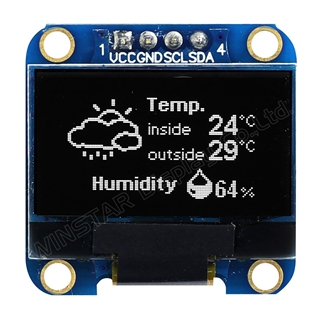

PMOLED 0.96'' Graphic 128x64, White, COG + Small PCB, 3V, Interface I2C (4 Pin)

DESCRIPTION



4 pin OLED display module diagonal size 0.96 inch 128x64pixels COG OLED display with PCB board on it. It is built in with SSD1306BZ IC, it communicates via I2C interface only, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. This module has a smaller PCB than standard version.

This 0.96 inch OLED module is suitable for smart control, industrial control, smart home application, medical device, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

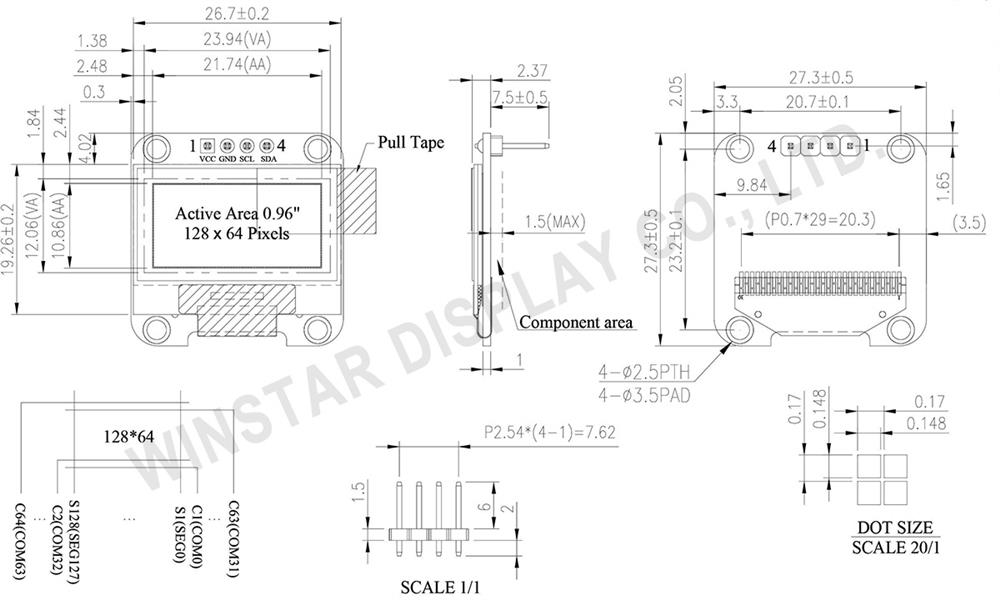

DRAWING

4 Pin OLED Display (COG+PCB) 0.96", 128x64 - WEA012864D-03



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 VCC Power supply input: 2.8 – 5.2V
2 GND Ground
3 SCL The serial clock input.
4 SDA The serial data input/output.



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 Dots
Module dimension 27.30 × 27.30 × 2.37 mm
Active Area 21.74 × 10.86 mm
Pixel Size 0.148 × 0.148 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1306
Interface I2C
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 1.65 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC 2.8 3.3 5.2 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.9×VCC VCC V
Output Low Volt. VOL 0 0.1×VCC V
50% Check Board operating Current ICC Vcc=3.3V 12.0 20.0 mA


SKU: WEA12864W#D08-FC
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
25+
50+
Prezzo
€6,20
€4,60
€4,50
€4,30
€4,10

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€6,20 IVA esclusa

DESCRIPTION



4 pin OLED display module diagonal size 0.96 inch 128x64pixels COG OLED display with PCB board on it. It is built in with SSD1306BZ IC, it communicates via I2C interface only, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. This module has a smaller PCB than standard version.

This 0.96 inch OLED module is suitable for smart control, industrial control, smart home application, medical device, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.



DRAWING

4 Pin OLED Display (COG+PCB) 0.96", 128x64 - WEA012864D-03



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 VCC Power supply input: 2.8 – 5.2V
2 GND Ground
3 SCL The serial clock input.
4 SDA The serial data input/output.



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 Dots
Module dimension 27.30 × 27.30 × 2.37 mm
Active Area 21.74 × 10.86 mm
Pixel Size 0.148 × 0.148 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1306
Interface I2C
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 1.65 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC 2.8 3.3 5.2 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.9×VCC VCC V
Output Low Volt. VOL 0 0.1×VCC V
50% Check Board operating Current ICC Vcc=3.3V 12.0 20.0 mA
