WEH2002L#AP5N00100-FC

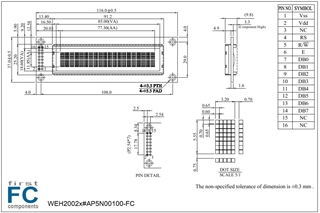

Immagine di WEH2002L#AP5N00100-FC Immagine di WEH2002L#AP5N00100-FC
PMOLED 3.08'' 20x2, Yellow color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH2002L#A08-FC in 'Related Product' section on the bottom page

The OLED 20x2 has the same outline size, VA size and pin out as Winstar LCD item no. WH2002A. We suggest customers to consider using this low power 20x2 character OLED display to replace your existing STN character display. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

  • Faster response time "At +25 ℃ 10 μsec."
  • Unlimited viewing angle "Up to 175 degree"
  • Thin – No need of backlight, self emitting
  • High Brightness
  • High contrast ratio "Up to 2000:1"
  • Wide Operation Temperature "-40 ℃ ~ 80 ℃"
  • Lower power consumption - reduce CO2 emissions

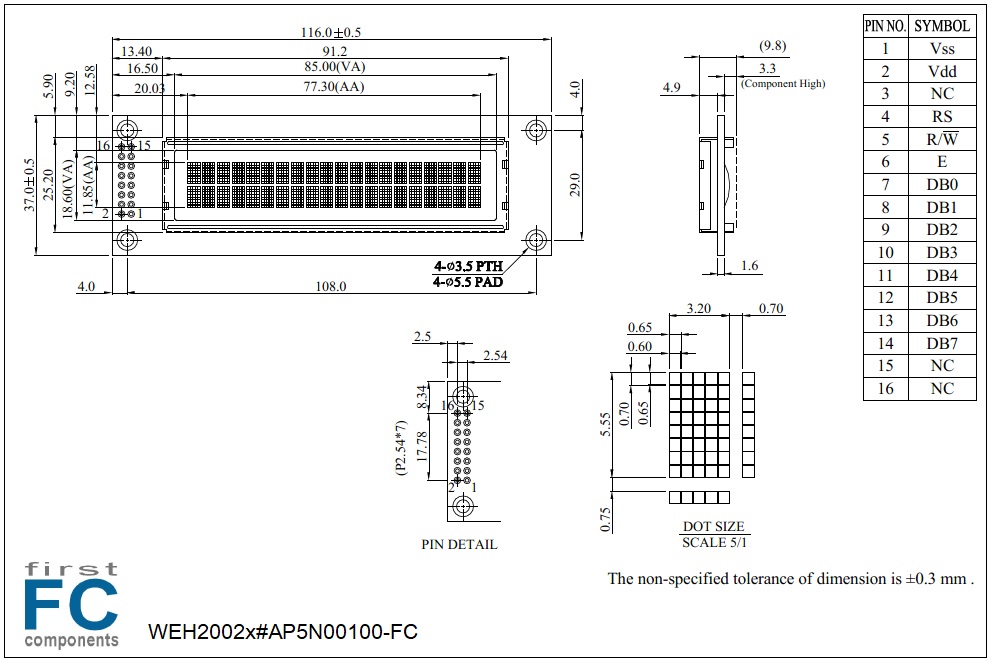

DRAWING

WEH002002A - Character OLED Display, OLED 20x2

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC － No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC － No connect
16 NC － No connect

General Specification

ItemDimensionUnit
Number of Characters 20 characters × 2 Lines －
Module dimension 116.0 × 37.0 × 9.8 mm
View area 85.0 × 18.6 mm
Active area 77.3 × 11.85 mm
Dot size 0.6 × 0.65 mm
Dot pitch 0.65× 0.70 mm
Character size 3.2 × 5.55 mm
Character pitch 3.9 × 6.3 mm
Panel type OLED , Monochrome
Duty 1/16

Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V

Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 4.8 5.0 5.3 V
Input High Volt. VIH － 0.8 VDD － VDD V
Input Low Volt. VIL － GND － 0.2 VDD V
Output High Volt. VOH IOH=-0.5mA 0.8 VDD － VDD V
Output Low Volt. VOL IOL=0.5mA GND － 0.2 VDD V
50% Check Board
Operating Current		 IDD VDD=5V 30 35 42 mA



SKU: WEH2002L#AP5N00100-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€19,50
€15,60
€15,00

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€19,50 IVA esclusa

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH2002L#A08-FC in 'Related Product' section on the bottom page

The OLED 20x2 has the same outline size, VA size and pin out as Winstar LCD item no. WH2002A. We suggest customers to consider using this low power 20x2 character OLED display to replace your existing STN character display. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

  • Faster response time "At +25 ℃ 10 μsec."
  • Unlimited viewing angle "Up to 175 degree"
  • Thin – No need of backlight, self emitting
  • High Brightness
  • High contrast ratio "Up to 2000:1"
  • Wide Operation Temperature "-40 ℃ ~ 80 ℃"
  • Lower power consumption - reduce CO2 emissions



DRAWING

WEH002002A - Character OLED Display, OLED 20x2

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC － No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC － No connect
16 NC － No connect

General Specification

ItemDimensionUnit
Number of Characters 20 characters × 2 Lines －
Module dimension 116.0 × 37.0 × 9.8 mm
View area 85.0 × 18.6 mm
Active area 77.3 × 11.85 mm
Dot size 0.6 × 0.65 mm
Dot pitch 0.65× 0.70 mm
Character size 3.2 × 5.55 mm
Character pitch 3.9 × 6.3 mm
Panel type OLED , Monochrome
Duty 1/16

Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V

Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 4.8 5.0 5.3 V
Input High Volt. VIH － 0.8 VDD － VDD V
Input Low Volt. VIL － GND － 0.2 VDD V
Output High Volt. VOH IOH=-0.5mA 0.8 VDD － VDD V
Output Low Volt. VOL IOL=0.5mA GND － 0.2 VDD V
50% Check Board
Operating Current		 IDD VDD=5V 30 35 42 mA



Specifiche di prodotto
Brand Winstar
Size 3.08"
Risoluzione 20x2
Area Attiva (mm) 77.30x11.85
Dot Size 0.60x0.65
Polarizzatore Glare
Colore Yellow
Alimentazione 5V
Interfaccia Display 6800 (option 8080/SPI)
IC Controller Display WS0010-TX
Struttura Costruttiva COB
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display Soldering PAD
Nr. Pin 16
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 3.08"
Risoluzione 20x2
Area Attiva (mm) 77.30x11.85
Dot Size 0.60x0.65
Polarizzatore Glare
Colore Yellow
Alimentazione 5V
Interfaccia Display 6800 (option 8080/SPI)
IC Controller Display WS0010-TX
Struttura Costruttiva COB
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display Soldering PAD
Nr. Pin 16
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
