WF0128-240240BD#0P19B-FC

TFT 1.28" 240x240, Round with KNOB, LCD + IC Controller, Interface MCU (SPI) IC GC9A01, Wide View Angle (IPS), 320cd/m², Capacitive touch panel



DESCRIPTION



WF0128-240240BD#0P19B-FC is a diameter 1.28-inch round IPS TFT-LCD module with KNOB with capacitive touch panel made of resolution of 240x240 pixels. This round TFT display with KNOB comprises an IPS TFT-LCD panel built with a GC9A01 driver IC that can communicate via SPI interface and is equipped with a capacitive touch panel that supports I2C interface.

WF0128-240240BD#0P19B-FC is adopted IPS panel, which has the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1,000:1 (typical value), brightness 320 nits (typical value), glare surface panel.

The power supply voltage for analog(VCI)is from 2.65 to 3.3 V, the typical value of 2.8V. It can operate temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃. The round TFT display modules are suited for compact devices like wearable devices, and smart home applications.

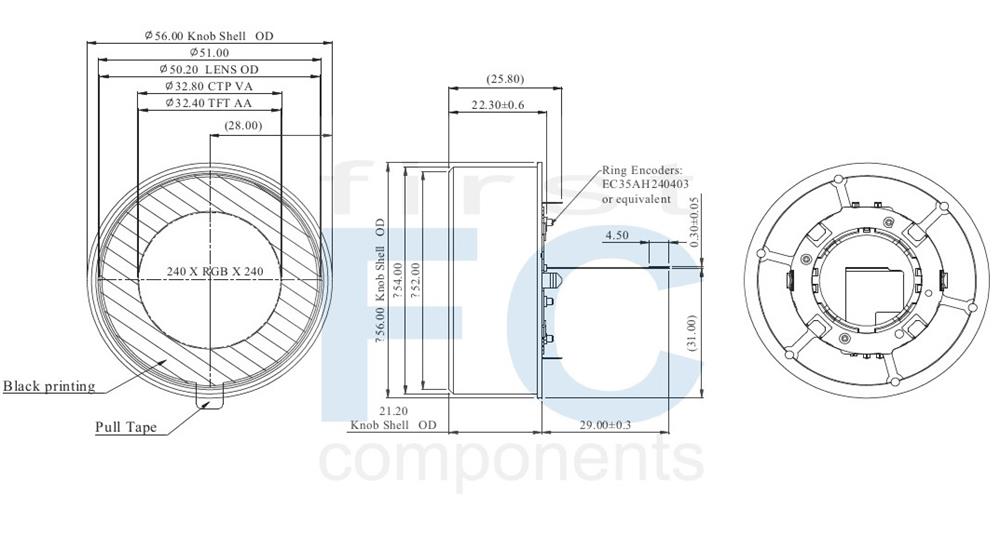

DRAWING

SPECIFICATIONS



Interface

LCM PIN Definition

Pin

Symbol

Function

Remark

1

TP_INT

INTERUPT SIGNAL



2

TP_SDA

IIC DATA



3

TP_SCL

IIC CLOCK



4

TP_RESET

TP RESET SIGNAL



5

TP_GND

Ground



6

TP_VDD3.3V

CTP POWER SUPPLY



7

VLED+

Backlit positive



8

VLED-

Backlit negative



9

GND

Ground



10

CS

Chip select signal



11

SCL

Serial clock



12

SDA

Serial data signal



13

RS

Register select signal



14

TE

TE signal



15

RESET

LCD RESET Signal



16

VCI3.3V

LCD Power supply



17

NC

No connection



18

GND

Ground





General Specifications

Item

Dimension

Unit

Size

1.28

inch

Dot Matrix

240 x RGB x 240 (TFT)

dots

Module dimension

56.0 x 56.0 x 25.8

mm

Active area

32.40 x 32.40

mm

Dot pitch

0.043 X 0.135

mm

LCD type

TFT, Normally Black, Transmissive

Viewing Angle

80/80/80/80

TFT Interface

SPI

Backlight Type

LED ,Normally White

Driver IC

GC9A01

CTP Driver IC

CTS816 or equivalent

CTP FW Version

0X1

CTP    Resolution

240*240

With /Without TP

With CTP

Surface

Glare

*Color tone slight changed by temperature and driving voltage.



Optical Characteristics

Item

Symbol



Min



Unit

Remark

Response time

Tr+ Tf

8=0°Φ=0°

-

30

-

.ms

Note 3

Contrast ratio

CR

At optimized
viewing angle

-

1000

-

-

Note 4

Color

Chromaticity

White

Wx

8=0°Φ=0

0.254

0.304

0.354

-

Note

2,5,6

Wy

0.277

0.327

0.377

-

Viewing angle
(Gray Scale
Inversion
Direction)



ΘR

CR≧10

-

80

-



Note 1

ΘL

-

80

-



ΦT

-

80

-

ΦB

-

80

-

Brightness

-

-

290

320

-

cd/m2

Center of
display

Uniformity

(U)

-

75

-

-

%

Note 5





Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions

Item

Symbol

Conditions

Standard Value

Unit

Min

Typ

Max

Power Supply Voltage for Analog

VCI

Ta= +25℃

2.65

2.8

3.3

V

Supply CTP

TP_VDD3.3

Ta= +25°C

2.65

2.8

3.3

V

ICTP

Ta= +25°C

-

3.0

4.5

mA

Input High Voltage for LCD

VIH

-

0.8Iovcc

-

Iovcc

V

Input Low Voltage for LCD

VIL

-

Vss

-

0.2 Iovcc

V

Output High Voltage for LCD

VOH

-

0.8Iovcc

-

Iovcc

V

Output Low Voltage for LCD

VOL

-

Vss

-

0.2 Iovcc

V



LED driving conditions

Parameter

Symbol



Unit

Remark

LED current

-

-

40

-

mA

-

LED voltage

VLED+

3.0

3.2

3.4

V

Note 1

LED Life Time

-

-

20,000

-

Hr

Note 2,3,4

SKU: WF0128-240240BD#0P19B-FC
Brand: Winstar
Kit Accessori



DESCRIPTION



WF0128-240240BD#0P19B-FC is a diameter 1.28-inch round IPS TFT-LCD module with KNOB with capacitive touch panel made of resolution of 240x240 pixels. This round TFT display with KNOB comprises an IPS TFT-LCD panel built with a GC9A01 driver IC that can communicate via SPI interface and is equipped with a capacitive touch panel that supports I2C interface.

WF0128-240240BD#0P19B-FC is adopted IPS panel, which has the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1,000:1 (typical value), brightness 320 nits (typical value), glare surface panel.

The power supply voltage for analog(VCI)is from 2.65 to 3.3 V, the typical value of 2.8V. It can operate temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃. The round TFT display modules are suited for compact devices like wearable devices, and smart home applications.







DRAWING

SPECIFICATIONS



Interface

LCM PIN Definition

Pin

Symbol

Function

Remark

1

TP_INT

INTERUPT SIGNAL



2

TP_SDA

IIC DATA



3

TP_SCL

IIC CLOCK



4

TP_RESET

TP RESET SIGNAL



5

TP_GND

Ground



6

TP_VDD3.3V

CTP POWER SUPPLY



7

VLED+

Backlit positive



8

VLED-

Backlit negative



9

GND

Ground



10

CS

Chip select signal



11

SCL

Serial clock



12

SDA

Serial data signal



13

RS

Register select signal



14

TE

TE signal



15

RESET

LCD RESET Signal



16

VCI3.3V

LCD Power supply



17

NC

No connection



18

GND

Ground





General Specifications

Item

Dimension

Unit

Size

1.28

inch

Dot Matrix

240 x RGB x 240 (TFT)

dots

Module dimension

56.0 x 56.0 x 25.8

mm

Active area

32.40 x 32.40

mm

Dot pitch

0.043 X 0.135

mm

LCD type

TFT, Normally Black, Transmissive

Viewing Angle

80/80/80/80

TFT Interface

SPI

Backlight Type

LED ,Normally White

Driver IC

GC9A01

CTP Driver IC

CTS816 or equivalent

CTP FW Version

0X1

CTP    Resolution

240*240

With /Without TP

With CTP

Surface

Glare

*Color tone slight changed by temperature and driving voltage.



Optical Characteristics

Item

Symbol



Min



Unit

Remark

Response time

Tr+ Tf

8=0°Φ=0°

-

30

-

.ms

Note 3

Contrast ratio

CR

At optimized
viewing angle

-

1000

-

-

Note 4

Color

Chromaticity

White

Wx

8=0°Φ=0

0.254

0.304

0.354

-

Note

2,5,6

Wy

0.277

0.327

0.377

-

Viewing angle
(Gray Scale
Inversion
Direction)



ΘR

CR≧10

-

80

-



Note 1

ΘL

-

80

-



ΦT

-

80

-

ΦB

-

80

-

Brightness

-

-

290

320

-

cd/m2

Center of
display

Uniformity

(U)

-

75

-

-

%

Note 5





Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions

Item

Symbol

Conditions

Standard Value

Unit

Min

Typ

Max

Power Supply Voltage for Analog

VCI

Ta= +25℃

2.65

2.8

3.3

V

Supply CTP

TP_VDD3.3

Ta= +25°C

2.65

2.8

3.3

V

ICTP

Ta= +25°C

-

3.0

4.5

mA

Input High Voltage for LCD

VIH

-

0.8Iovcc

-

Iovcc

V

Input Low Voltage for LCD

VIL

-

Vss

-

0.2 Iovcc

V

Output High Voltage for LCD

VOH

-

0.8Iovcc

-

Iovcc

V

Output Low Voltage for LCD

VOL

-

Vss

-

0.2 Iovcc

V



LED driving conditions

Parameter

Symbol



Unit

Remark

LED current

-

-

40

-

mA

-

LED voltage

VLED+

3.0

3.2

3.4

V

Note 1

LED Life Time

-

-

20,000

-

Hr

Note 2,3,4

Specifiche di prodotto
Brand Winstar
Size 1.28"
Risoluzione 240x240
Area Attiva (mm) 32.40x32.40
Colore Full Color
Interfaccia Display MCU (SPI)
Display IC GC9A01
Angolo Visione IPS
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 18
Passo Pin 0.5mm
IC Controller Touch Panel CTS816
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 1.28"
Risoluzione 240x240
Area Attiva (mm) 32.40x32.40
Colore Full Color
Interfaccia Display MCU (SPI)
Display IC GC9A01
Angolo Visione IPS
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 18
Passo Pin 0.5mm
IC Controller Touch Panel CTS816
Preferred - Not Preferred Preferred
