    WF104-1024768GH#VSPW8-FC

    TFT 10.4" 1024x768, HDMI / Raspberry Interface, High Brightness 800cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel USB interface (GG, IC ILI2511), Suitable for Raspberry Pi 1~3 & Pi3B+ versions
    Brand: Winstar
    Cod.: WF104-1024768GH#VSPW8-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €252,00
    €226,80
    €213,20

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €252,00 IVA esclusa
    i h

    DESCRIPTION

    The WF104-1024768GH#VSPW8-FC is a high-brightness 1024x768 HDMI TFT-LCD display with a projected capacitive touch panel (PCAP). This module features a diagonal size of 10.4 inches and an aspect ratio of 4:3. Featuring the TFP401 Controller IC, the WF104-1024768GH#VSPW8-FC comes with a control board that exclusively supports the HDMI signal interface (DVI) for the Raspberry Pi system. Specifically designed for the Raspberry Pi platform, this TFT module includes a 40-pin GPIO connector for seamless integration. Additionally, the WF104G HDMI series supports PWM (Pulse Width Modulation) functionality for adjusting LED backlight brightness.

    The WF104-1024768GH#VSPW8-FC adopts an IPS panel, providing a wider viewing angle of 80 degrees (typical value) in all directions: Left: 80 / Right: 80 / Up: 80 / Down: 80. It boasts a brightness of 800 nits (typical value) and a contrast ratio of 800:1 (typical value). Equipped with a projected capacitive touch panel (PCAP) featuring the ILI2511 IC, it supports a USB interface and offers 1/ 2/ multi-point touch capabilities.

    The LCM power supply voltage ranges from 11.4V to 12.6V, with a typical value of 12.0V. The display operates within temperatures ranging from -20℃ to +70℃, with storage temperatures from -30℃ to +80℃. The 10.4-inch 1024x768 HDMI display module of the WF104-1024768GH#VSPW8-FC is suitable for use in control panels for infotainment systems in cars, industrial control systems, boat dashboards, and home security.



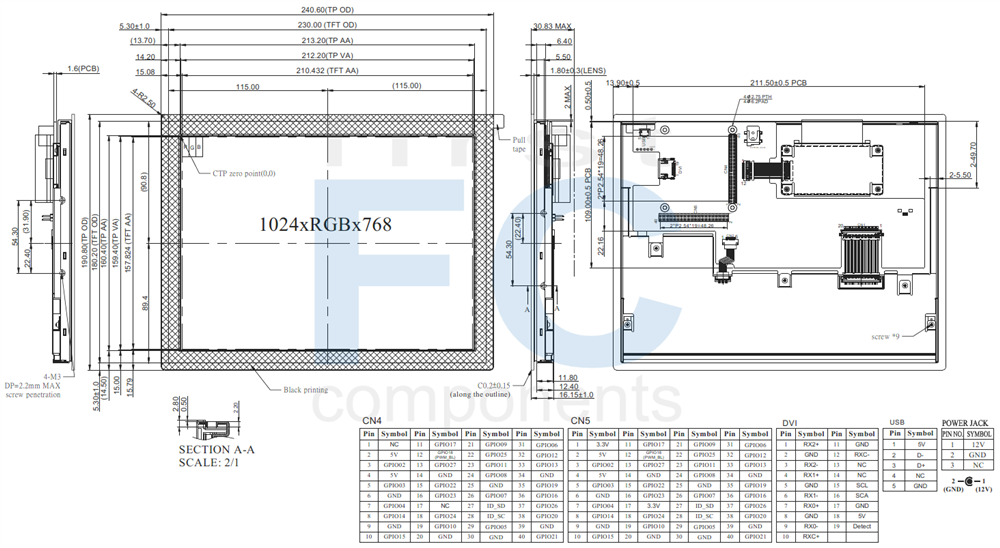

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 10.4 inch
    Dot Matrix 1024 × RGB × 768 (TFT) dots
    Module dimension 240.6 × 190.8 × 30.83 mm
    Active area 210.432 × 157.824 mm
    Pixel Pitch 0.2055 × 0.2055 mm
    LCD type TFT, Normally Black, Transmissive
    Viewing Angle 80/80/80/80 min
    Aspect Ratio 4:3
    Controller IC TFP401
    Backlight Type LED, Normally White
    TFT Interface HDMI (only for DVI)
    PCAP IC ILI2511 or Equivalent
    PCAP Interface USB
    PCAP FW Version 6.0.0.0.0.0.0.3
    PCAP Resolution 16384*16384
    Touch Panel Projected capacitive touch screen (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Operating conditions

    ItemSymbolMinTypMaxUnit
    Supply Voltage For LCM 12V 11.4 12.0 12.6 V
    Supply Current For LCM I12V - 940 1410 mA
    LED life time - - 100,000 - Hr



    Interface

    1.CN4

    Pin No.SymbolFunction
    1 NC No connection
    2 5V Raspberry Pi:Power 5V
    3 GPIO02 Raspberry Pi:GPIO02
    4 5V Raspberry Pi:Power 5V
    5 GPIO03 Raspberry Pi:GPIO03
    6 GND Raspberry Pi:GND
    7 GPIO04 Raspberry Pi:GPIO04
    8 GPIO14 Raspberry Pi:GPIO14
    9 GND Raspberry Pi:GND
    10 GPIO15 Raspberry Pi:GPIO15
    11 GPIO17 Raspberry Pi:GPIO17
    12 GPIO18
    (PWM_BL)
    Backlight Enable,Active_H (Raspberry Pi:GPIO18)
    13 GPIO27 Raspberry Pi:GPIO27
    14 GND Raspberry Pi:GND
    15 GPIO22 Raspberry Pi:GPIO22
    16 GPIO23 Raspberry Pi:GPIO23
    17 NC No connection
    18 GPIO24 Raspberry Pi:GPIO24
    19 GPIO10 Raspberry Pi:GPIO10
    20 GND Raspberry Pi:GND
    21 GPIO09 Raspberry Pi:GPIO09
    22 GPIO25 Raspberry Pi:GPIO25
    23 GPIO11 Raspberry Pi:GPIO11
    24 GPIO08 Raspberry Pi:GPIO08
    25 GND Raspberry Pi:GND
    26 GPIO07 Raspberry Pi:GPIO07
    27 ID_SD Raspberry Pi:ID_SD
    28 ID_SC Raspberry Pi:ID_SC
    29 GPIO05 Raspberry Pi:GPIO05
    30 GND Raspberry Pi:GND
    31 GPIO06 Raspberry Pi:GPIO06
    32 GPIO12 Raspberry Pi:GPIO12
    33 GPIO13 Raspberry Pi:GPIO13
    34 GND Raspberry Pi:GND
    35 GPIO19 Raspberry Pi:GPIO19
    36 GPIO16 Raspberry Pi:GPIO16
    37 GPIO26 Raspberry Pi:GPIO26
    38 GPIO20 Raspberry Pi:GPIO20
    39 GND Raspberry Pi:GND
    40 GPIO21 Raspberry Pi:GPIO21



    2. CN5

    Pin No.SymbolFunction
    1 3.3V TFT Module Power limit can only output 3.3V,100mA
    2 5V Raspberry Pi:Power 5V
    3 GPIO02 Raspberry Pi:GPIO02
    4 5V Raspberry Pi:Power 5V
    5 GPIO03 Raspberry Pi:GPIO03
    6 GND Raspberry Pi:GND
    7 GPIO04 Raspberry Pi:GPIO04
    8 GPIO14 Raspberry Pi:GPIO14
    9 GND Raspberry Pi:GND
    10 GPIO15 Raspberry Pi:GPIO15
    11 GPIO17 Raspberry Pi:GPIO17
    12 GPIO18
    (PWM_BL)
    Backlight Enable ,Active_H (Raspberry Pi:GPIO18)
    13 GPIO27 Raspberry Pi:GPIO27
    14 GND Raspberry Pi:GND
    15 GPIO22 Raspberry Pi:GPIO22
    16 GPIO23 Raspberry Pi:GPIO23
    17 3.3V TFT Module Power limit can only output 3.3V,100mA
    18 GPIO24 Raspberry Pi:GPIO24
    19 GPIO10 Raspberry Pi:GPIO10
    20 GND Raspberry Pi:GND
    21 GPIO09 Raspberry Pi:GPIO09
    22 GPIO25 Raspberry Pi:GPIO25
    23 GPIO11 Raspberry Pi:GPIO11
    24 GPIO08 Raspberry Pi:GPIO08
    25 GND Raspberry Pi:GND
    26 GPIO07 Raspberry Pi:GPIO07
    27 ID_SD Raspberry Pi:ID_SD
    28 ID_SC Raspberry Pi:ID_SC
    29 GPIO05 Raspberry Pi:GPIO05
    30 GND Raspberry Pi:GND
    31 GPIO06 Raspberry Pi:GPIO06
    32 GPIO12 Raspberry Pi:GPIO12
    33 GPIO13 Raspberry Pi:GPIO13
    34 GND Raspberry Pi:GND
    35 GPIO19 Raspberry Pi:GPIO19
    36 GPIO16 Raspberry Pi:GPIO16
    37 GPIO26 Raspberry Pi:GPIO26
    38 GPIO20 Raspberry Pi:GPIO20
    39 GND Raspberry Pi:GND
    40 GPIO21 Raspberry Pi:GPIO21



    3. DVI

    Pin No.SymbolI/OFunction
    1 Rx2+ I Channel-2 positive receiver input; low-voltage signal differential- input pair.
    2 GND P Ground
    3 Rx2- I Channel-2 negative receiver input; low-voltage signal differential- input pair.
    4 Rx1+ I Channel-1 positive receiver input; low-voltage signal differential- input pair.
    5 GND P Ground
    6 Rx1- I Channel-1 negative receiver input; low-voltage signal differential- input pair.
    7 Rx0+ I Channel-0 positive receiver input; low-voltage signal differential- input pair.
    8 GND P Ground
    9 Rx0- I Channel-0 negative receiver input; low-voltage signal differential- input pair.
    10 RxC+ I Clock positive receiver input; low-voltage signal differential- input pair.
    11 GND P Ground
    12 RxC- I Clock negative receiver input; low-voltage signal differential- input pair.
    13-14 NC - No connection
    15 SCL I/O DDC(Data Display Channel) Clock
    16 SDA I/O DDC(Data Display Channel) Data
    17 GND P Ground
    18 5V P Power Supply
    19 Detect I/O Hot plug detect

    I: input, O: output, P: Power



    4. CTP USB PIN Definition

    PinSymbolFunction
    1 5V Power Supply (5V)
    2 D- Data line -
    3 D+ Data line +
    4 NC No connection
    5 GND Power Ground



    5. POWER JACK

    PinSymbolFunction
    1 12V Power Supply (12.0V)
    2 GND Power Ground
    3 NC No connection
