    WF121-1024768EL#0PW0-FC

    TFT 12.1" 1024x768 LCD Module, Interface LVDS, 600cd/m², Wide View Angle (IPS), Super extended Temperature, No touch
    Brand: Winstar
    Cod.: WF121-1024768EL#0PW0-FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €163,90
    €147,50
    €138,70

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €163,90 IVA esclusa
    i h

    DESCRIPTION



    12.1 inch Wide Temperature TFT LCD with IPS great angle-visibility. This 12.1” IPS LCD TFT display is featured with resolution 1024x4768 pixels. it supports LVDS interface, with brightness 600 nits (typical value), aspect ratio 4:3, anti-glare surface panel.

    This 12.1 inch 1024x768 TFT LCD display is an IPS (In-Plane Switching) Panel which has the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical). Operating temperatures from -30℃ to +85℃; storage temperature from -40℃ to +90℃.

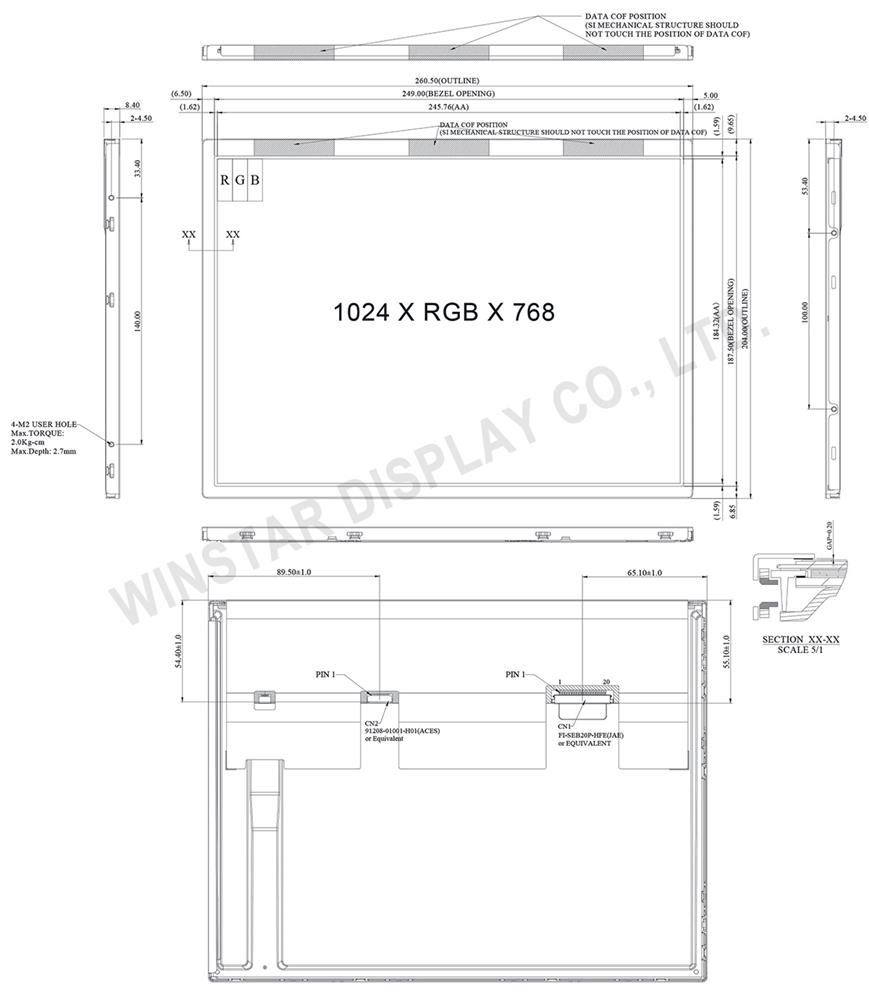

    DRAWING





    SPECIFICATIONS



    Interface Pin Function

    TFT LCD Module

    PinNameDescription
    1 RX3+ Differential Data Input, CH3 ( Positive )
    2 RX3- Differential Data Input, CH3 (Negative )
    3 NC NC
    4 SEL68 LVDS 6/8 bit select function control,
    Low or NC 6 bit Input Mode
    High 8 bit Input Mode
    5 GND Ground
    6 RXC+ Differential Clock Input ( Positive )
    7 RXC- Differential Clock Input ( Negative )
    8 GND Ground
    9 RX2+ Differential Data Input , CH2 ( Positive )
    10 RX2- Differential Data Input , CH2 ( Negative )
    11 GND Ground
    12 RX1+ Differential Data Input , CH1 ( Positive )
    13 RX1- Differential Data Input, CH1 ( Negative )
    14 GND Ground
    15 RX0+ Differential Data Input, CH0 ( Positive )
    16 RX0- Differential Data Input, CH0 (Negative )
    17 reLR Horizontal Reverse Scan Control,
    Low or NC Normal Mode.
    High Horizontal Reverse Scan
    18 reUD Vertical Reverse Scan Control,
    Low or NC Normal Mode, High Vertical Reverse Scan
    19 VCC Power supply
    20 VCC Power supply




    Backlight Unit (Converter connector pin)

    PinSymbolDescription
    1 Vi Converter input voltage
    2 Vi Converter input voltage
    3 Vi Converter input voltage
    4 Vi Converter input voltage
    5 VGND Converter ground
    6 VGND Converter ground
    7 VGND Converter ground
    8 VGND Converter ground
    9 EN Enable pin
    10 ADJ Backlight Adjust



    General Specifications

    ItemDimensionUnit
    Size 12.1 inch
    Pixel Number 1024 × R.G.B. × 768 pixel
    Module dimension 260.5 × 204.0 × 8.4 mm
    Bezel Opening Area 249.0 × 187.5  mm
    Active Area 245.76 (H) × 184.32 (V) mm
    Pixel Pitch 0.240(H) × 0.240(V) mm
    LCD type TFT, Normally black, Transmissive
    View Direction Wide View
    Aspect Ratio 4:3
    TFT Driver IC --
    TFT Interface 1ch-LVDS
    Backlight Type LED, Normally White
    Touch Panel Without Touch Panel
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +85 ℃
    Storage Temperature TST -40 - +90 ℃



    Electrical Characteristics

    TFT LCD Module

    ParameterSymbolValueUnit
    MinTypMax
    Power Supply Voltage VCC 3.0 3.3 3.6 V
    Rush Current IRUSH - - 4 A
    Power Supply Current White   - - 370 450 mA
    Black - 300 380 mA
    Power Consumption PL - 1.22 1.49 W
    LVDS differential input voltage |VID| 100 - 600 mV
    LVDS common input voltage VICM 0.7 - 1.6 V


    Specifiche di prodotto
    Size 12.1"
    Resolution 1024x768
    Active Area (mm) 245.76x184.32
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -30~85
    Data Connection LVDS Connector
    Pin Nr. 20+10
    Pin Pitch 1.25mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
