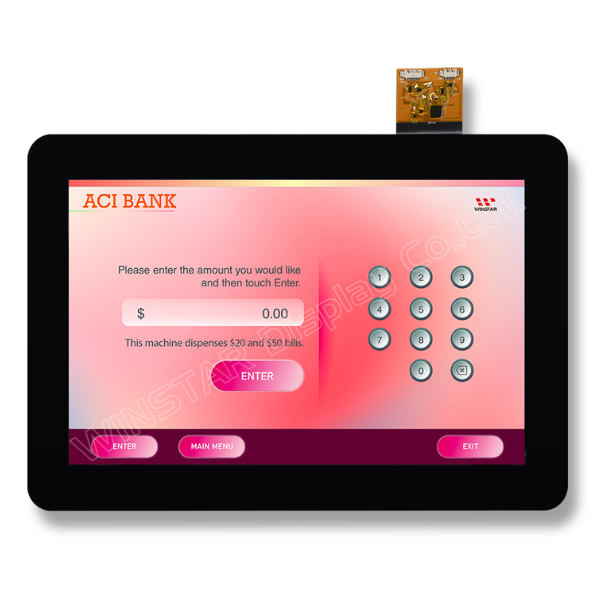

WF121-1280800FL#0SP8-FC

Immagine di WF121-1280800FL#0SP8-FC Immagine di WF121-1280800FL#0SP8-FC
TFT 12.1" 1280X800 LCD Panel, Interface LVDS, High Brightness 800cd/m², Wide View Angle (IPS), Capacitive touch panel USB/I2C option interface (GG, ILI2132 IC)

DESCRIPTION

The WF121-1280800FL#0SP8-FC is a 12.1-inch high-brightness TFT capacitive display** designed for applications requiring precise visual clarity and responsive touch interaction. With a resolution of 1280 × 800 pixels (WXGA) and a 16:9 aspect ratio, this capacitive touchscreen display delivers sharp, detailed images even in bright lighting conditions, making it suitable for both indoor and outdoor use.

Featuring an LVDS interface, the module ensures stable and reliable data transmission. The integrated capacitive touch functionality is driven by the ILI2132 driver IC, supporting USB and I²C interfaces, and providing 10-point multi-touch capability. Its high sensitivity and accuracy allow smooth operation with multiple simultaneous touches, making this TFT capacitive display ideal for interactive systems such as medical devices, ATMs, industrial control panels, and self-service kiosks.

With a peak brightness of 800 nits and a contrast ratio of 1200:1, the module delivers vibrant and lifelike visuals. The IPS technology provides wide viewing angles of 85° in all directions, maintaining consistent color fidelity from multiple viewing positions. The capacitive touchscreen display ensures that user interaction is intuitive and precise.

Designed for reliability, the WF121-1280800FL#0SP8-FC operates within a temperature range of -20°C to +70°C, guaranteeing stable performance across varied environmental conditions.

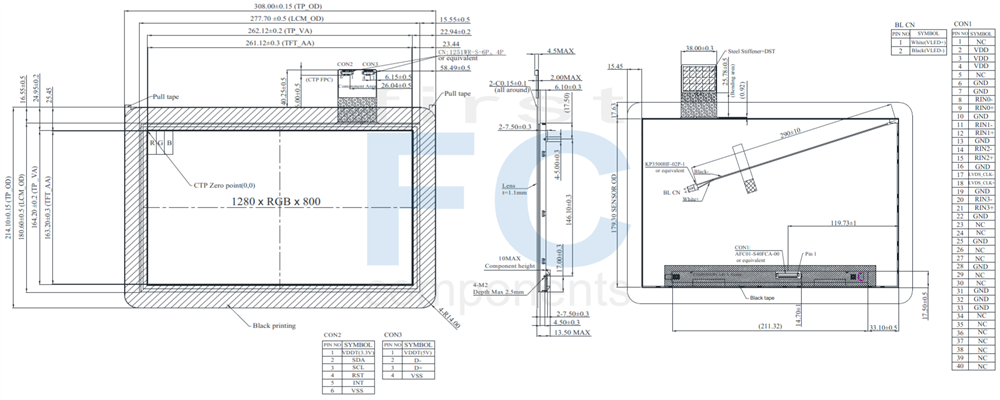

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 12.1 inch
Dot Matrix 1280 x 3(RGB) x 800 dots
Module dimension 308.0 x 214.1 x 13.5 mm
Active area 261.12 x 163.2 mm
Pixel pitch 0.204 x 0.204 mm
LCD type TFT, Normally Black ,Transmissive
Backlight Type LED, Normally White
View Angle 85/85/85/85 (IPS)
Interface LVDS
Aspect Ratio 16:9
PCAP Driver IC ILI2132 or equivalent
PCAP Resolution 16384*16384
PCAP Interface USB (I2C available)
PCAP FW Version 0x07.0x00.0x00.0x00.0x02.0x00.0x00.0x00
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Treatment Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolMinTypMaxUnit
Supply voltage VDD 3.0 3.3 3.6 V
Current Consumption
All Black		 Logic ICC+IIN - 440 660 mA
Analog
Supply CTP VDDT(3.3V) 3.0 3.3 3.6 V
IDDT(3.3V) - 87 135 mA
VDDT(5V) - 5.0 - V
IDDT(5V) - 92 140 mA


Backlight Driving Conditions

ParameterSymbolMin.Typ.Max.Unit
LED current ILED - 360 - mA
LED voltage VLED+ 22.8 24.08 27.2 V
LED Life Time   - 50,000 - Hr



Interface Pin Function

1.LCM PIN Definition

Pin No.SymbolFunction
1 NC No contact
2 VDD Power supply VDDIN=3.3V
3 VDD
4 VDD
5 NC No contact
6 GND Digital power
7 GND Digital ground
8 RIN0- LVDS Negative data signal (-)
9 RIN0+ LVDS Negative data signal (+)
10 GND GND
11 RIN1- LVDS Negative data signal (-)
12 RIN1+ LVDS Negative data signal (+)
13 GND GND
14 RIN2- LVDS Negative data signal (-)
15 RIN2+ LVDS Negative data signal (+)
16 GND GND
17 LVDS_CLK- LVDS Negative CLK signal (-)
18 LVDS_CLK+ LVDS Negative CLK signal (+)
19 GND GND
20 RIN3- LVDS Negative data signal (-)
21 RIN3+ LVDS Negative data signal (+)
22 GND GND
23 NC No contact
24 NC No contact
25 GND GND
26 NC No contact
27 NC No contact
28 GND GND
29 NC No contact
30 NC No contact
31 GND GND
32 GND GND
33 GND GND
34-40 NC No contact


2.BL CN

Pin No.SymbolFunction
1 White(VLED+) LED_ Anode
2 Black(VLED-) LED_ Cathode


3.CON2

Pin No.SymbolFunction
1 VDDT(3.3V) Power supply
2 SDA I2C data input and output
3 SCL I2C clock input I2C clock input
4 RST External Reset, Low is active
5 INT External interrupt to the host
6 VSS Ground for analog circuit


4. CON3

Pin No.SymbolFunction
1 VDDT(5V) Power supply
2 D- Data -
3 D+ Data +
4 VSS System ground

SKU: WF121-1280800FL#0SP8-FC
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€184,20
€175,10
€141,20

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€184,20 IVA esclusa

DESCRIPTION

The WF121-1280800FL#0SP8-FC is a 12.1-inch high-brightness TFT capacitive display** designed for applications requiring precise visual clarity and responsive touch interaction. With a resolution of 1280 × 800 pixels (WXGA) and a 16:9 aspect ratio, this capacitive touchscreen display delivers sharp, detailed images even in bright lighting conditions, making it suitable for both indoor and outdoor use.

Featuring an LVDS interface, the module ensures stable and reliable data transmission. The integrated capacitive touch functionality is driven by the ILI2132 driver IC, supporting USB and I²C interfaces, and providing 10-point multi-touch capability. Its high sensitivity and accuracy allow smooth operation with multiple simultaneous touches, making this TFT capacitive display ideal for interactive systems such as medical devices, ATMs, industrial control panels, and self-service kiosks.

With a peak brightness of 800 nits and a contrast ratio of 1200:1, the module delivers vibrant and lifelike visuals. The IPS technology provides wide viewing angles of 85° in all directions, maintaining consistent color fidelity from multiple viewing positions. The capacitive touchscreen display ensures that user interaction is intuitive and precise.

Designed for reliability, the WF121-1280800FL#0SP8-FC operates within a temperature range of -20°C to +70°C, guaranteeing stable performance across varied environmental conditions.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 12.1 inch
Dot Matrix 1280 x 3(RGB) x 800 dots
Module dimension 308.0 x 214.1 x 13.5 mm
Active area 261.12 x 163.2 mm
Pixel pitch 0.204 x 0.204 mm
LCD type TFT, Normally Black ,Transmissive
Backlight Type LED, Normally White
View Angle 85/85/85/85 (IPS)
Interface LVDS
Aspect Ratio 16:9
PCAP Driver IC ILI2132 or equivalent
PCAP Resolution 16384*16384
PCAP Interface USB (I2C available)
PCAP FW Version 0x07.0x00.0x00.0x00.0x02.0x00.0x00.0x00
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Treatment Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolMinTypMaxUnit
Supply voltage VDD 3.0 3.3 3.6 V
Current Consumption
All Black		 Logic ICC+IIN - 440 660 mA
Analog
Supply CTP VDDT(3.3V) 3.0 3.3 3.6 V
IDDT(3.3V) - 87 135 mA
VDDT(5V) - 5.0 - V
IDDT(5V) - 92 140 mA


Backlight Driving Conditions

ParameterSymbolMin.Typ.Max.Unit
LED current ILED - 360 - mA
LED voltage VLED+ 22.8 24.08 27.2 V
LED Life Time   - 50,000 - Hr



Interface Pin Function

1.LCM PIN Definition

Pin No.SymbolFunction
1 NC No contact
2 VDD Power supply VDDIN=3.3V
3 VDD
4 VDD
5 NC No contact
6 GND Digital power
7 GND Digital ground
8 RIN0- LVDS Negative data signal (-)
9 RIN0+ LVDS Negative data signal (+)
10 GND GND
11 RIN1- LVDS Negative data signal (-)
12 RIN1+ LVDS Negative data signal (+)
13 GND GND
14 RIN2- LVDS Negative data signal (-)
15 RIN2+ LVDS Negative data signal (+)
16 GND GND
17 LVDS_CLK- LVDS Negative CLK signal (-)
18 LVDS_CLK+ LVDS Negative CLK signal (+)
19 GND GND
20 RIN3- LVDS Negative data signal (-)
21 RIN3+ LVDS Negative data signal (+)
22 GND GND
23 NC No contact
24 NC No contact
25 GND GND
26 NC No contact
27 NC No contact
28 GND GND
29 NC No contact
30 NC No contact
31 GND GND
32 GND GND
33 GND GND
34-40 NC No contact


2.BL CN

Pin No.SymbolFunction
1 White(VLED+) LED_ Anode
2 Black(VLED-) LED_ Cathode


3.CON2

Pin No.SymbolFunction
1 VDDT(3.3V) Power supply
2 SDA I2C data input and output
3 SCL I2C clock input I2C clock input
4 RST External Reset, Low is active
5 INT External interrupt to the host
6 VSS Ground for analog circuit


4. CON3

Pin No.SymbolFunction
1 VDDT(5V) Power supply
2 D- Data -
3 D+ Data +
4 VSS System ground

Specifiche di prodotto
Brand Winstar
Size 12.1"
Risoluzione 1280x800
Area Attiva (mm) 261.12x163.20
Colore Full Color
Interfaccia Display LVDS
Display IC No
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display LVDS Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel ILI2132
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 12.1"
Risoluzione 1280x800
Area Attiva (mm) 261.12x163.20
Colore Full Color
Interfaccia Display LVDS
Display IC No
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display LVDS Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel ILI2132
Preferred - Not Preferred Preferred
