WFN0700DD9P#001-FC

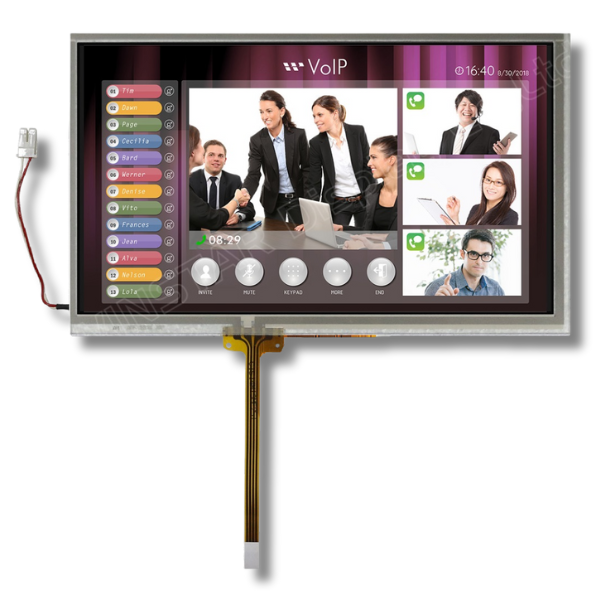

TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 250cd/m², Resistive touch panel

DESCRIPTION

TFT 7.0”is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.

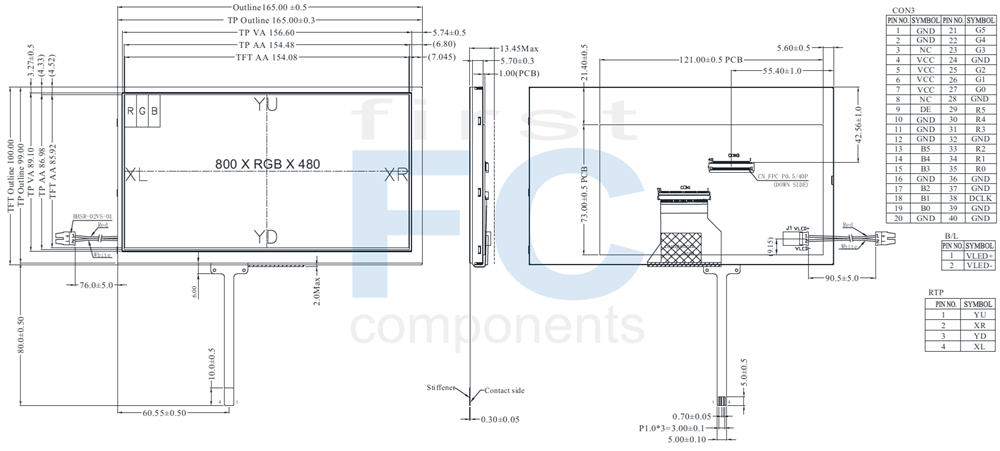

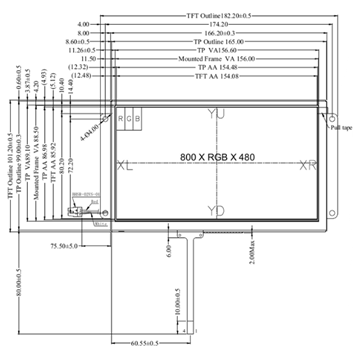

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 × RGB × 480(TFT)	dots
Module dimension	165.0 × 100 x 13.45	mm
Active area	154.08 × 85.92	mm
Dot pitch	0.1926 × 0.179	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
TFT Interface	18-bit RGB
Backlight Type	LED, Normally White
Color arrangement	RGB-STRIPE
TFT Driver IC	ILI6137A +ILI5960-9G or equivalent
With/Without TP	With RTP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For Logic	VCC	3.0	3.3	3.6	V
Power Supply For Current	VCC = 3.3V	－	12	18	mA

Interface

LCM PIN Definition

Pin No.	Symbol	Function
1	GND	Power ground
2	GND	Power ground
3	NC	No connection
4	VCC	Power for Digital Circuit
5	VCC	Power for Digital Circuit
6	VCC	Power for Digital Circuit
7	VCC	Power for Digital Circuit
8	NC	No connection
9	DE	Data Input Enable
10	GND	Power ground
11	GND	Power ground
12	GND	Power ground
13	B5	Blue data
14	B4	Blue data
15	B3	Blue data
16	GND	Power ground
17	B2	Blue data
18	B1	Blue data
19	B0	Blue data (LSB)
20	GND	Power ground
21	G5	Green data
22	G4	Green data
23	G3	Green data
24	GND	Power ground
25	G2	Green data
26	G1	Green data
27	G0	Green data (LSB)
28	GND	Power ground
29	R5	Red data
30	R4	Red data
31	R3	Red data
32	GND	Power ground
33	R2	Red data
34	R1	Red data
35	R0	Red data (LSB)
36	GND	Power ground
37	GND	Power ground
38	DCLK	Sample clock (CLK)
39	GND	Power ground
40	GND	Power ground

Backlight Driving Part

Pin No.	Symbol	Function
1	VLED+	Red, LED_Anode
2	VLED-	White, LED_Cathode

SKU: WFN0700DD9P#001-FC

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

10+

Prezzo

€56,00

€50,40

€41,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€56,00 IVA esclusa
