WF57-640480A5D#0SP0-FC

TFT 5.7" 640x480 LCD Panel, Interface RGB, High Brightness 1100cd/m², Wide View Angle (IPS), No touch

DESCRIPTION

The WF57-640480A5D#0SP0-FC is a 5.7-inch IPS TFT display with a resolution of 640x480 pixels, offering a luminance of 1100 cd/m² for clear visuals even in bright environments. With a contrast ratio of 1200:1 (typical value), details are presented with high clarity.

Its rugged construction and reliable performance make it suitable for industrial control systems, precision measurement instruments, and advanced industrial equipment. The IPS panel provides wide viewing angles of Left: 80° / Right: 80° / Up: 80° / Down: 80° (typical value), ensuring consistent image quality from multiple perspectives. The anti-glare surface reduces reflections, improving visibility in various lighting conditions.

Equipped with a JD9168S driver IC and supporting RGB 18-bit SYNC+DE mode interfaces, it integrates seamlessly with various systems. Its dimensions are 124.7 x 100.0 mm, with an active area of 115.2 x 86.4 mm, offering a compact yet spacious display area.

It operates within a temperature range of -20°C to +70°C and can be stored between -30°C to +80°C. Suitable for industrial control displays, medical equipment, and smart appliances, this display meets the needs of diverse applications.

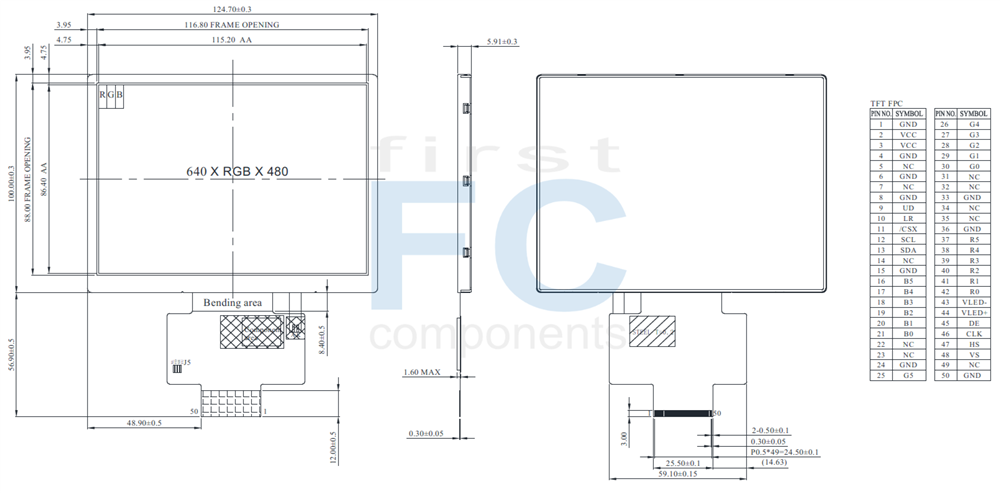

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	5.7	inch
Dot Matrix	640 × RGB × 480(TFT)	dots
Module dimension	124.7(W) × 100.0(H) × 5.91(D)	mm
Active area	115.2×86.4	mm
Dot pitch	0.18×0.18	mm
LCD type	TFT, Normally Black, Transmissive
View Direction	80/80/80/80
TFT Driver IC	JD9168S or Equivalent
TFT Interface	RGB18bits SYNC+DE mode
Aspect Ratio	4:3
Backlight Type	LED ,Normally White
Touch Panel	Without Touch Panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Operating conditions

Parameter		Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage		VCC	Ta=25⁰C	3.0	3.3	3.6	V
Input voltage	H	VIH	VCC=3.0V	0.7VCC	-	VCC
Input voltage	L	VIL	VCC=3.0V	0	-	0.3VCC	mW
Power supply Current Operating)		ICC	VCC=3.0V	-	50	75	mA

LED driving conditions

Parameter	Symbol	Min	Typ	Max	Unit
LED current	-	-	160	-	mA
Power Consumption	-	2688	2880	3072	mW
LED voltage	VLED+	16.8	18.0	19.2	V
LED Life Time	-	50,000	-	-	Hr

Interface

LCM PIN Definition

Pin No.	Symbol	I/O	Function
1	GND	P	Ground.
2	VCC	P	Power supply for TFT
3	VCC	P	Power supply for TFT
4	GND	P	Ground.
5	NC	-	No connection
6	GND	P	Ground.
7	NC	-	No connection
8	GND	P	Ground.
9	UD	I	Up/down selection
10	LR	I	Left /right selection
11	/CSX	I	Chip select pin. 0: Chip can be accessed; 1: Chip cannot be accessed. If this pin is not used, please connect it to VCC.
12	SCL	I	Serial clock input in SPI interface .If not use, let it open or VCC or GND.
13	SDA	I	Serial data input / output pin in SPI interface operation. If not use, let it open.
14	NC	-	No connection
15	GND	P	Ground.
16	B5	I	Blue Data bus
17	B4	I	Blue Data bus
18	B3	I	Blue Data bus
19	B2	I	Blue Data bus
20	B1	I	Blue Data bus
21	B0	I	Blue Data bus
22	NC	-	No connection
23	NC	-	No connection
24	GND	P	Ground.
25	G5	I	Green Data bit
26	G4	I	Green Data bit
27	G2	I	Green Data bit
28	G2	I	Green Data bit
29	G1	I	Green Data bit
30	G0	I	Green Data bit
31	NC	-	No connection
32	NC	-	No connection
33	GND	P	Ground.
34	NC	-	No connection
35	NC	-	No connection
36	GND	P	Ground.
37	R5	I	Red Data bit
38	R4	I	Red Data bit
39	R3	I	Red Data bit
40	R2	I	Red Data bit
41	R1	I	Red Data bit
42	R0	I	Red Data bit
43	VLED-	P	Power supply for LED cathode
44	VLED+	P	Power supply for LED anode
45	DE	I	Data enable input in RGB interface.
46	CLK	I	Pixel clock input in RGB interface.
47	HS	I	Horizontal sync input in RGB interface.
48	VS	I	Vertical sync input in RGB interface
49	NC	-	No connection
50	GND	P	Ground.

SKU: WF57-640480A5D#0SP0-FC

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

10+

Prezzo

€72,60

€65,30

€61,40

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€72,60 IVA esclusa
