WFN1330EA2#0SP0-FC

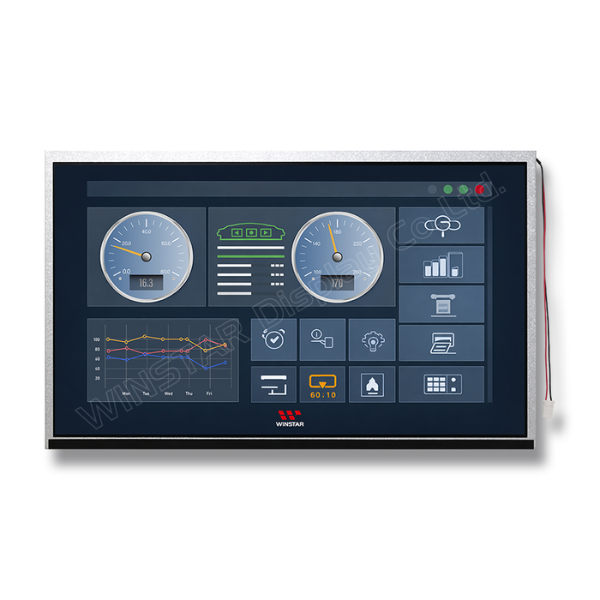

Immagine di WFN1330EA2#0SP0-FC Immagine di WFN1330EA2#0SP0-FC
TFT 13.3" 1920x1080 LCD Panel, Interface eDP, High Brightness 1100cd/m², Wide View Angle (IPS), No touch

DESCRIPTION

The WFN1330EA2#0SP0-FC 13.3-inch Full HD TFT LCD module features a LED backlight with a typical luminance of 1100 cd/m². It has a normally black, transmissive TFT panel with a 1920×1080 resolution and wide 85° viewing angles in all directions.

The display uses an eDP interface with the TC2055D TFT driver IC, ensuring stable signal transmission and display performance. This module is without a touch panel, featuring an anti-glare surface for clear viewing in various lighting conditions.

The module supports an operating temperature range of –20°C to +70°C and an LED backlight rated for up to 50,000 hours.

This module is suitable for industrial control systems, electrical control panels, instrumentation displays, and other industrial HMI applications, providing clear visuals and stable performance.

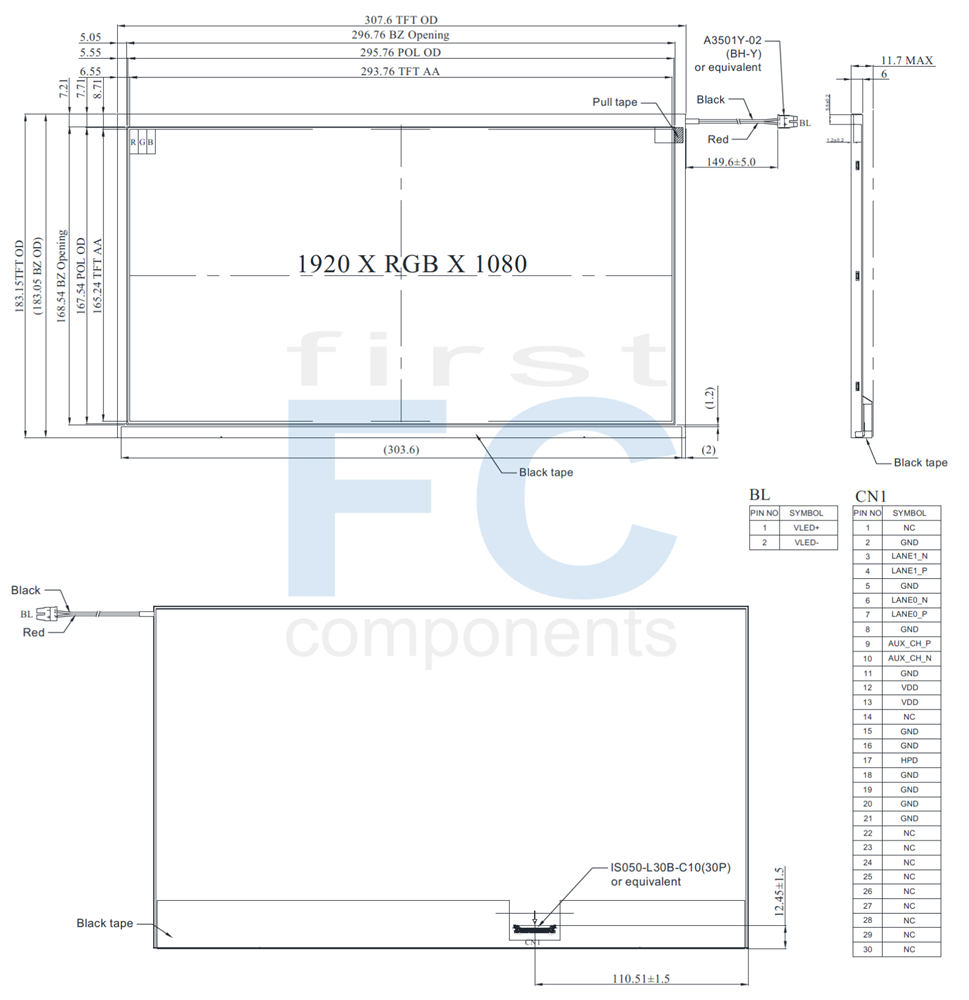

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 13.3 inch
Dot Matrix 1920 x RGB x 1080 dots
Module dimension 307.6 x 183.15 x 11.7 mm
Active area 293.76 x 165.24 mm
Pixel Pitch 0.153 x 0.153 mm
LCD type TFT, Normally Black, Transmissive
View Angle 85/85/85/85
TFT Interface eDP
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operation Conditions

ParameterSymbolValuesUnit
Min.Typ.Max.
Power supply input voltage VDD 3.0 3.3 3.6 V
Power supply current IDD - 450 675 mA


LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current ILED - 700 - mA
LED voltage VLED+ 16.2 18.0 19.8 V
LED Life Time - 50,000 - - Hr



Interface Pin Function

1.LCM PIN Definition

Pin NoSymbolFunction
1 NC No Connection
2 GND Power Ground
3 LANE1-N Complement Signal Link Lane 1
4 LANE1-P True Signal Line 1
5 GND Power Ground
6 LANE0-N Complement Signal Link Lane 0
7 LANE0-P True Signal Line 0
8 GND Power Ground
9 AUX-CH-P True Signal Auxiliary Ch.
10 AUX-CH-N Complement Signal Auxiliary Ch.
11 GND Power Ground
12 VDD LCD Logic and Driver Power  (3.3V)
13 VDD LCD Logic and Driver Power  (3.3V)
14 NC No Connection
15 GND Power Ground
16 GND Power Ground
17 HPD Hot plug detect output
18 GND Power Ground
19 GND Power Ground
20 GND Power Ground
21 GND Power Ground
22-30 NC No Connection


2.Backlight Driving Part

Pin No.SymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- Black, LED_ Cathode
SKU: WFN1330EA2#0SP0-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€126,20
€120,00
€106,70

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€126,20 IVA esclusa

DESCRIPTION

The WFN1330EA2#0SP0-FC 13.3-inch Full HD TFT LCD module features a LED backlight with a typical luminance of 1100 cd/m². It has a normally black, transmissive TFT panel with a 1920×1080 resolution and wide 85° viewing angles in all directions.

The display uses an eDP interface with the TC2055D TFT driver IC, ensuring stable signal transmission and display performance. This module is without a touch panel, featuring an anti-glare surface for clear viewing in various lighting conditions.

The module supports an operating temperature range of –20°C to +70°C and an LED backlight rated for up to 50,000 hours.

This module is suitable for industrial control systems, electrical control panels, instrumentation displays, and other industrial HMI applications, providing clear visuals and stable performance.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 13.3 inch
Dot Matrix 1920 x RGB x 1080 dots
Module dimension 307.6 x 183.15 x 11.7 mm
Active area 293.76 x 165.24 mm
Pixel Pitch 0.153 x 0.153 mm
LCD type TFT, Normally Black, Transmissive
View Angle 85/85/85/85
TFT Interface eDP
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operation Conditions

ParameterSymbolValuesUnit
Min.Typ.Max.
Power supply input voltage VDD 3.0 3.3 3.6 V
Power supply current IDD - 450 675 mA


LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current ILED - 700 - mA
LED voltage VLED+ 16.2 18.0 19.8 V
LED Life Time - 50,000 - - Hr



Interface Pin Function

1.LCM PIN Definition

Pin NoSymbolFunction
1 NC No Connection
2 GND Power Ground
3 LANE1-N Complement Signal Link Lane 1
4 LANE1-P True Signal Line 1
5 GND Power Ground
6 LANE0-N Complement Signal Link Lane 0
7 LANE0-P True Signal Line 0
8 GND Power Ground
9 AUX-CH-P True Signal Auxiliary Ch.
10 AUX-CH-N Complement Signal Auxiliary Ch.
11 GND Power Ground
12 VDD LCD Logic and Driver Power  (3.3V)
13 VDD LCD Logic and Driver Power  (3.3V)
14 NC No Connection
15 GND Power Ground
16 GND Power Ground
17 HPD Hot plug detect output
18 GND Power Ground
19 GND Power Ground
20 GND Power Ground
21 GND Power Ground
22-30 NC No Connection


2.Backlight Driving Part

Pin No.SymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- Black, LED_ Cathode
Specifiche di prodotto
Brand Winstar
Size 13.3"
Risoluzione 1920x1080
Area Attiva (mm) 293.76x165.24
Colore Full Color
Interfaccia Display eDP
Display IC No
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display eDP Connector
Nr. Pin 30
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
