WF70-800480D3H#V00-FC

Immagine di WF70-800480D3H#V00-FC Immagine di WF70-800480D3H#V00-FC
TFT 7" 800x480, HDMI / Raspberry Interface, IC TFP401, 400cd/m², Incl. 2 connectors, No touch, Suitable for Raspberry Pi 1~3 & Pi3B+ versions

DESCRIPTION

TFT 7.0”is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD  module, It is usually designed for industrial application and this module follows RoHs.



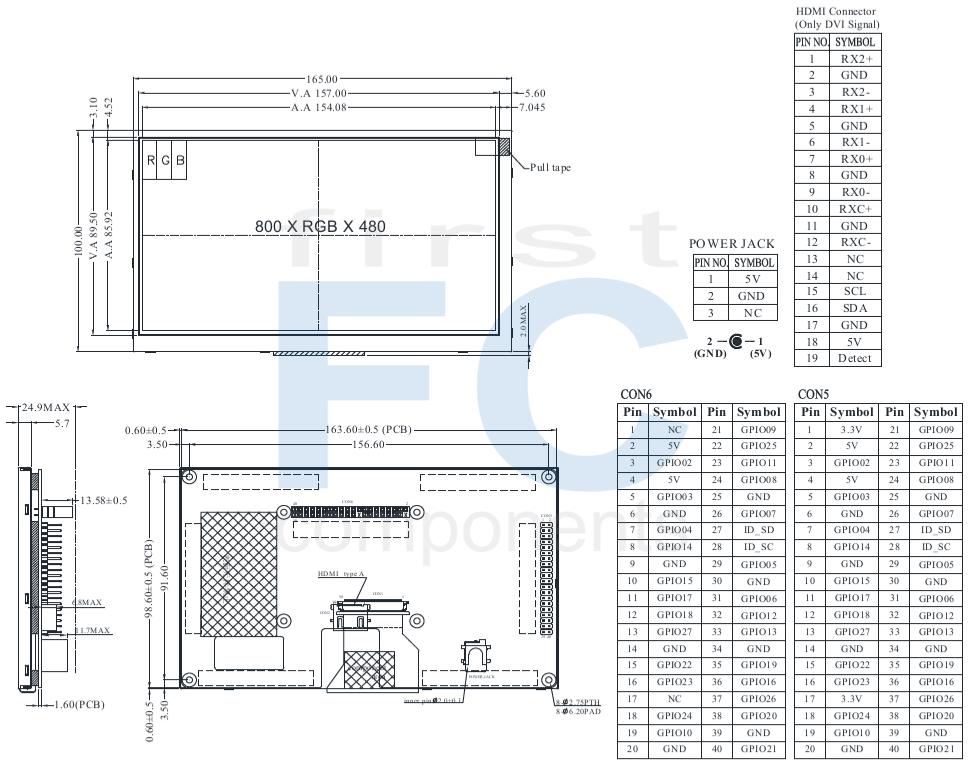

DRAWING



SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 165.0(W) × 100(H) x 24.9(D) mm
Active area 154.08 × 85.92 mm
Dot pitch 0.1926 × 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Controller IC TFP401 or equivalent
Backlight Type LED, Normally White
TFT Interface HDMI (only for DVI)
With/Without TP Without TP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 4.9 5 5.1 V
Supply Current For LCM IDD － 850 1300 mA
LED life time － 50,000 - － Hr

Interface

LCM PIN Definition (CON6)

Pin No.SymbolFunction
1 NC No connection
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi: GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi: GPIO03
6 GND Raspberry Pi: GND
7 GPIO04 Raspberry Pi: GPIO04
8 GPIO14 Raspberry Pi: GPIO14
9 GND Raspberry Pi: GND
10 GPIO15 Raspberry Pi: GPIO15
11 GPIO17 Raspberry Pi: GPIO17
12 GPIO18 Raspberry Pi: GPIO18 (backlight Enable)
13 GPIO27 Raspberry Pi: GPIO27
14 GND Raspberry Pi: GND
15 GPIO22 Raspberry Pi: GPIO22
16 GPIO23 Raspberry Pi: GPIO23
17 NC No connection
18 GPIO24 Raspberry Pi: GPIO24
19 GPIO10 Raspberry Pi: GPIO10
20 GND Raspberry Pi: GND
21 GPIO09 Raspberry Pi: GPIO09
22 GPIO25 Raspberry Pi: GPIO25
23 GPIO11 Raspberry Pi: GPIO11
24 GPIO08 Raspberry Pi: GPIO08
25 GND Raspberry Pi: GND
26 GPIO07 Raspberry Pi: GPIO07
27 ID_SD Raspberry Pi: ID_SD
28 ID_SC Raspberry Pi: ID_SC
29 GPIO05 Raspberry Pi: GPIO05
30 GND Raspberry Pi: GND
31 GPIO06 Raspberry Pi: GPIO06
32 GPIO12 Raspberry Pi: GPIO12
33 GPIO13 Raspberry Pi: GPIO13
34 GND Raspberry Pi: GND
35 GPIO19 Raspberry Pi: GPIO19
36 GPIO16 Raspberry Pi: GPIO16
37 GPIO26 Raspberry Pi: GPIO26
38 GPIO20 Raspberry Pi: GPIO20
39 GND Raspberry Pi: GND
40 GPIO21 Raspberry Pi: GPIO21

LCM PIN Definition (CON5)

Pin No.SymbolFunction
1 3.3V TFT Module Power limit can only output 3.3V, 100mA
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi: GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi: GPIO03
6 GND Raspberry Pi: GND
7 GPIO04 Raspberry Pi: GPIO04
8 GPIO14 Raspberry Pi: GPIO14
9 GND Raspberry Pi: GND
10 GPIO15 Raspberry Pi: GPIO15
11 GPIO17 Raspberry Pi: GPIO17
12 GPIO18 Raspberry Pi: GPIO18 (backlight Enable)
13 GPIO27 Raspberry Pi: GPIO27
14 GND Raspberry Pi: GND
15 GPIO22 Raspberry Pi: GPIO22
16 GPIO23 Raspberry Pi: GPIO23
17 3.3V TFT Module Power limit can only output 3.3V, 100mA
18 GPIO24 Raspberry Pi: GPIO24
19 GPIO10 Raspberry Pi: GPIO10
20 GND Raspberry Pi: GND
21 GPIO09 Raspberry Pi: GPIO09
22 GPIO25 Raspberry Pi: GPIO25
23 GPIO11 Raspberry Pi: GPIO11
24 GPIO08 Raspberry Pi: GPIO08
25 GND Raspberry Pi: GND
26 GPIO07 Raspberry Pi: GPIO07
27 ID_SD Raspberry Pi: ID_SD
28 ID_SC Raspberry Pi: ID_SC
29 GPIO05 Raspberry Pi: GPIO05
30 GND Raspberry Pi: GND
31 GPIO06 Raspberry Pi: GPIO06
32 GPIO12 Raspberry Pi: GPIO12
33 GPIO13 Raspberry Pi: GPIO13
34 GND Raspberry Pi: GND
35 GPIO19 Raspberry Pi: GPIO19
36 GPIO16 Raspberry Pi: GPIO16
37 GPIO26 Raspberry Pi: GPIO26
38 GPIO20 Raspberry Pi: GPIO20
39 GND Raspberry Pi: GND
40 GPIO21 Raspberry Pi: GPIO21

HDMI Connector (Only DVI Signal)

Pin No.SymbolI/OFunction
1 Rx2+ I Channel-2 positive receiver input; low-voltage signal differential- input pair.
2 GND P Ground
3 Rx2- I Channel-2 negative receiver input; low-voltage signal differential- input pair.
4 Rx1+ I Channel-1 positive receiver input; low-voltage signal differential- input pair.
5 GND P Ground
6 Rx1- I Channel-1 negative receiver input; low-voltage signal differential- input pair.
7 Rx0+ I Channel-0 positive receiver input; low-voltage signal differential- input pair.
8 GND P Ground
9 Rx0- I Channel-0 negative receiver input; low-voltage signal differential- input pair.
10 RxC+ I Clock positive receiver input; low-voltage signal differential- input pair.
11 GND P Ground
12 RxC- I Clock negative receiver input; low-voltage signal differential- input pair.
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power

POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection
