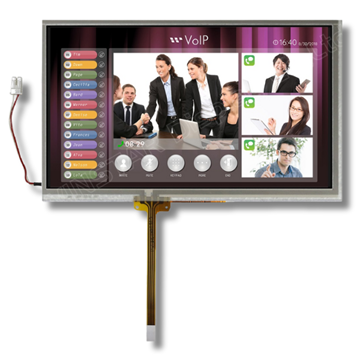

    WFN0700DD9P#005-FC

    TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 250cd/m², Frame, Resistive touch panel
    Brand: Winstar
    Cod.: WFN0700DD9P#005-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €69,40
    €62,50
    €58,70

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €69,40 IVA esclusa
    i h

    DESCRIPTION

    TFT 7.0” is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD  module, It is usually designed for industrial application and this module follows RoHs.

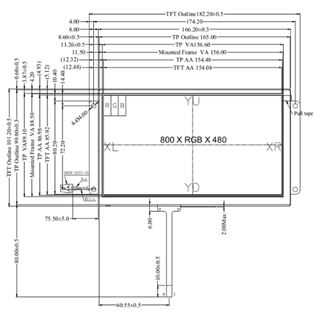

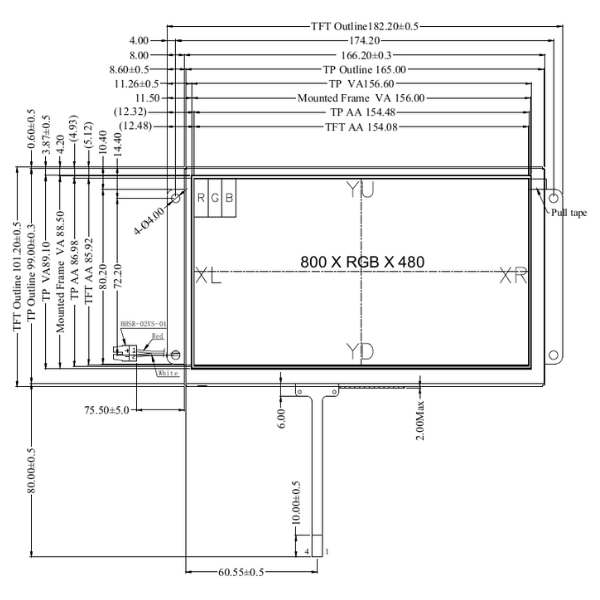

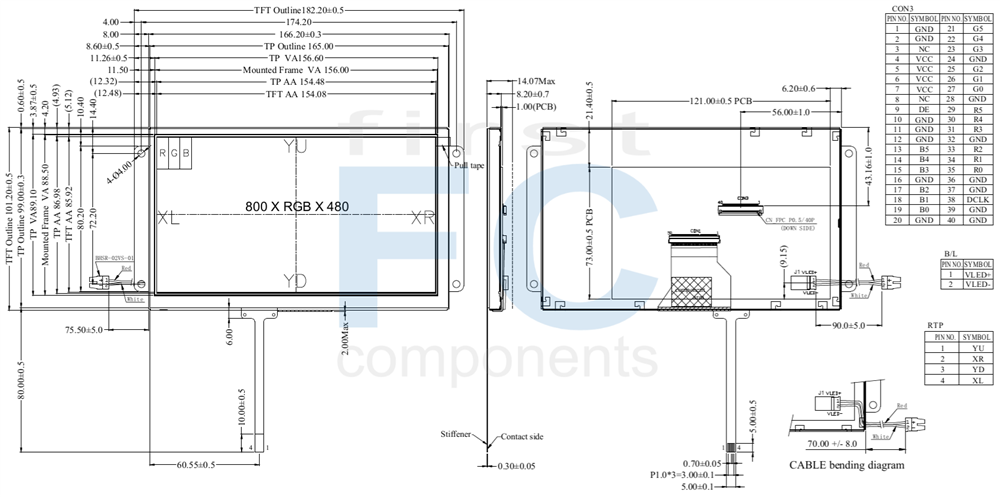

    DRAWING



    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 800 × RGB × 480(TFT) dots
    Module dimension 182.20 × 101.20 x 14.07 mm
    Active area 154.08 × 85.92 mm
    Dot pitch 0.1926 × 0.179 mm
    LCD type TFT, Normally White, Transmissive
    View Direction 12 o'clock
    Gray Scale Inversion Direction 6 o'clock
    Aspect Ratio 16:9
    TFT Interface 18-bit RGB
    Backlight Type LED, Normally White
    Color arrangement RGB-STRIPE
    TFT Driver IC ILI6137A +ILI5960-9G or equivalent
    With/Without TP With RTP
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Supply Voltage For Logic VCC 3.0 3.3 3.6 V
    Power Supply For Current VCC = 3.3V - 12 18 mA



    Interface

    LCM PIN Definition

    Pin No.SymbolFunction
    1 GND Power ground
    2 GND Power ground
    3 NC No connection
    4 VCC Power for Digital Circuit
    5 VCC Power for Digital Circuit
    6 VCC Power for Digital Circuit
    7 VCC Power for Digital Circuit
    8 NC No connection
    9 DE Data Input Enable
    10 GND Power ground
    11 GND Power ground
    12 GND Power ground
    13 B5 Blue data
    14 B4 Blue data
    15 B3 Blue data
    16 GND Power ground
    17 B2 Blue data
    18 B1 Blue data
    19 B0 Blue data (LSB)
    20 GND Power ground
    21 G5 Green data
    22 G4 Green data
    23 G3 Green data
    24 GND Power ground
    25 G2 Green data
    26 G1 Green data
    27 G0 Green data (LSB)
    28 GND Power ground
    29 R5 Red data
    30 R4 Red data
    31 R3 Red data
    32 GND Power ground
    33 R2 Red data
    34 R1 Red data
    35 R0 Red data (LSB)
    36 GND Power ground
    37 GND Power ground
    38 DCLK Sample clock (CLK)
    39 GND Power ground
    40 GND Power ground

    Backlight Driving Part

    Pin No.SymbolFunction
    1 VLED+ Red, LED_Anode
    2 VLED- White, LED_Cathode



    Specifiche di prodotto
    Size 7"
    Resolution 800x480
    Active Area (mm) 154.08x85.92
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle TN
    Frame Yes
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
