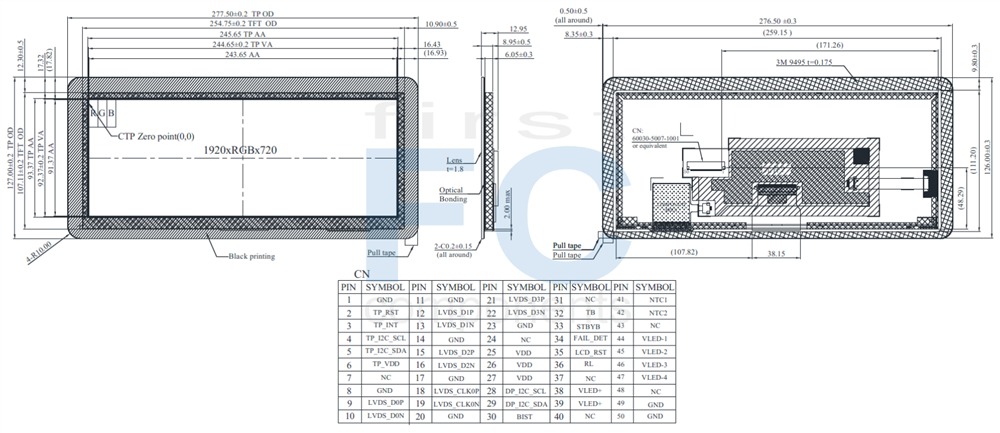

| Pin. No | Symbol | I/O | Function |
| 1 |
GND |
P |
Ground |
| 2 |
TP_RST |
- |
TP Reset pin |
| 3 |
TP_INT |
- |
TP Interrupt |
| 4 |
TP_I2C_SCL |
- |
TP High speed interface Clock differential signal input pins. |
| 5 |
TP_I2C_SDA |
- |
TP serial data input/output bi-direction pin |
| 6 |
TP_VDD |
- |
Power supply for CTP |
| 7 |
NC |
- |
No connection |
| 8 |
GND |
P |
Ground |
| 9 |
LVDS_D0P |
I |
+LVDS Differential Data Input |
| 10 |
LVDS_D0N |
I |
-LVDS Differential Data Input |
| 11 |
GND |
P |
Ground |
| 12 |
LVDS_D1P |
I |
+LVDS Differential Data Input |
| 13 |
LVDS_D1N |
I |
-LVDS Differential Data Input |
| 14 |
GND |
P |
Ground |
| 15 |
LVDS_D2P |
I |
+LVDS Differential Data Input |
| 16 |
LVDS_D2N |
I |
-LVDS Differential Data Input |
| 17 |
GND |
P |
Ground |
| 18 |
LVDS_CLK0P |
I |
+LVDS Differential Clock Input |
| 19 |
LVDS_CLK0N |
I |
-LVDS Differential Clock Input |
| 20 |
GND |
P |
Ground |
| 21 |
LVDS_D3P |
I |
+LVDS Differential Data Input |
| 22 |
LVDS_D3N |
I |
-LVDS Differential Data Input |
| 23 |
GND |
P |
Ground |
| 24 |
NC |
- |
No connection |
| 25-27 |
VDD |
P |
Power supply |
| 28 |
DP_I2C_SCL |
I |
Serial communication data input. |
| 29 |
DP_I2C_SDA |
I |
Serial communication clock input. |
| 30 |
BIST |
I |
Enable built-in self test (BIST) function BISTEN=H, BIST mode BISTEN=L, Normal mode (Default) |
| 31 |
NC |
- |
No connect. |
| 32 |
TB |
I |
Vertical shift direction (Gate output) selection.TB function is the hardware setting “XOR” with register setting when FCS=L.) H:Forward,Top-Bottom (Default) L:Reverse,Bottom-Top |
| 33 |
STBYB |
I |
Standby mode. STBYB=H : normal (Default), STBYB=L: standby mode. |
| 34 |
FAIL_DET |
O |
Fail detection signal output Normal = H , Abnormal = L |
| 35 |
LCD_RST |
I |
Global reset pin. Active low to enter reset state. Keep VDD during operation. Normally pull high. |
| 36 |
RL |
I |
Horizontal shift direction (Source output) selection. H: Left - Right (Default); L: Right - Left. |
| 37 |
NC |
- |
No connection |
| 38-39 |
LEDA |
P |
Power Supply For LED Backlight Anode Input |
| 40 |
NC |
- |
No connection |
| 41 |
NTC1 |
P |
NTC PIN |
| 42 |
NTC2 |
P |
NTC PIN |
| 43 |
NC |
- |
No connection |
| 44 |
VLEDK1 |
P |
Power Supply For LED Backlight Cathode Input |
| 45 |
VLEDK2 |
P |
Power Supply For LED Backlight Cathode Input |
| 46 |
VLEDK3 |
P |
Power Supply For LED Backlight Cathode Input |
| 47 |
VLEDK4 |
P |
Power Supply For LED Backlight Cathode Input |
| 48 |
NC |
- |
No connection |
| 49-50 |
GND |
P |
Ground |
