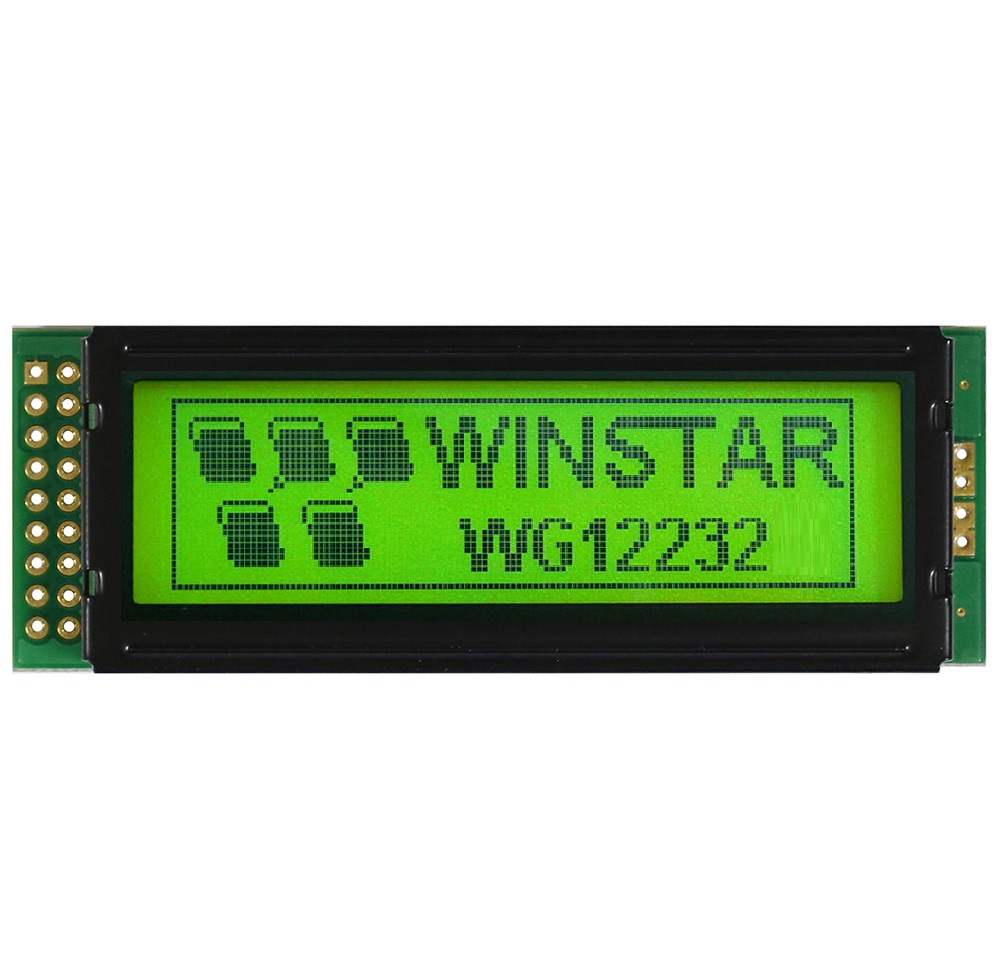

WG12232O-YYH-VE#A

Graphic LCD 2.2'' 122x32, B/L yellow/green, STN yellow/green pos, COB, 3V, Interface 6800, 6 O'clock, VNEG (EDGE B/L)

DESCRIPTION



WG12232O is a monochrome 122x32 graphic 2.2” LCD display module.  This 122x32 graphic LCD display is built in with SBN1661G controller IC which supports 6800 8-bit parallel interface.  This module is 5V power supply, also negative voltage 3V optional.  Please note WG12232O is white LED backlight available only.  If you need other color LED, please contact with us.


DRAWING

Winstar WG12232O 122x32 Graphic Displays



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 Vdd Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction select signal
5 E1 Enable signal
6 E2 Enable signal
7 NC/CL No connection / External clock 2KHz
8 NC/E No connection / Enable signal
9 R/W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 /RST Controller reset signal, Active Low



Mechanical Data

ItemStandard ValueUnit
Module Dimension 77.8 × 27.2 mm
Viewing Area 60.0 × 18.0 mm
Dot Pitch 0.44 × 0.49 mm
Dot Size 0.40 × 0.45 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.45 V


SKU: WG12232O-YYH-VE#A
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€12,80
€9,40
€7,80
€7,60

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€12,80 IVA esclusa

DESCRIPTION



WG12232O is a monochrome 122x32 graphic 2.2” LCD display module.  This 122x32 graphic LCD display is built in with SBN1661G controller IC which supports 6800 8-bit parallel interface.  This module is 5V power supply, also negative voltage 3V optional.  Please note WG12232O is white LED backlight available only.  If you need other color LED, please contact with us.


DRAWING

Winstar WG12232O 122x32 Graphic Displays



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 Vdd Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction select signal
5 E1 Enable signal
6 E2 Enable signal
7 NC/CL No connection / External clock 2KHz
8 NC/E No connection / Enable signal
9 R/W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 /RST Controller reset signal, Active Low



Mechanical Data

ItemStandard ValueUnit
Module Dimension 77.8 × 27.2 mm
Viewing Area 60.0 × 18.0 mm
Dot Pitch 0.44 × 0.49 mm
Dot Size 0.40 × 0.45 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.45 V


Specifiche di prodotto
Brand Winstar
Size 2.2"
Risoluzione 122x32
Area Attiva (mm) 53.64x15.64
Dot Size 0.40x0.45
Colore B/L, Tipo LCD B/L yellow/green, STN yellow/green pos
Alimentazione 3V
Interfaccia 6800
Controllore a Bordo SBN1661G
Struttura COB
Angolo Visione 6H
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 18
Passo Pin 2.54mm
Preferred - Not Preferred Not Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.2"
Risoluzione 122x32
Area Attiva (mm) 53.64x15.64
Dot Size 0.40x0.45
Colore B/L, Tipo LCD B/L yellow/green, STN yellow/green pos
Alimentazione 3V
Interfaccia 6800
Controllore a Bordo SBN1661G
Struttura COB
Angolo Visione 6H
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 18
Passo Pin 2.54mm
Preferred - Not Preferred Not Preferred
