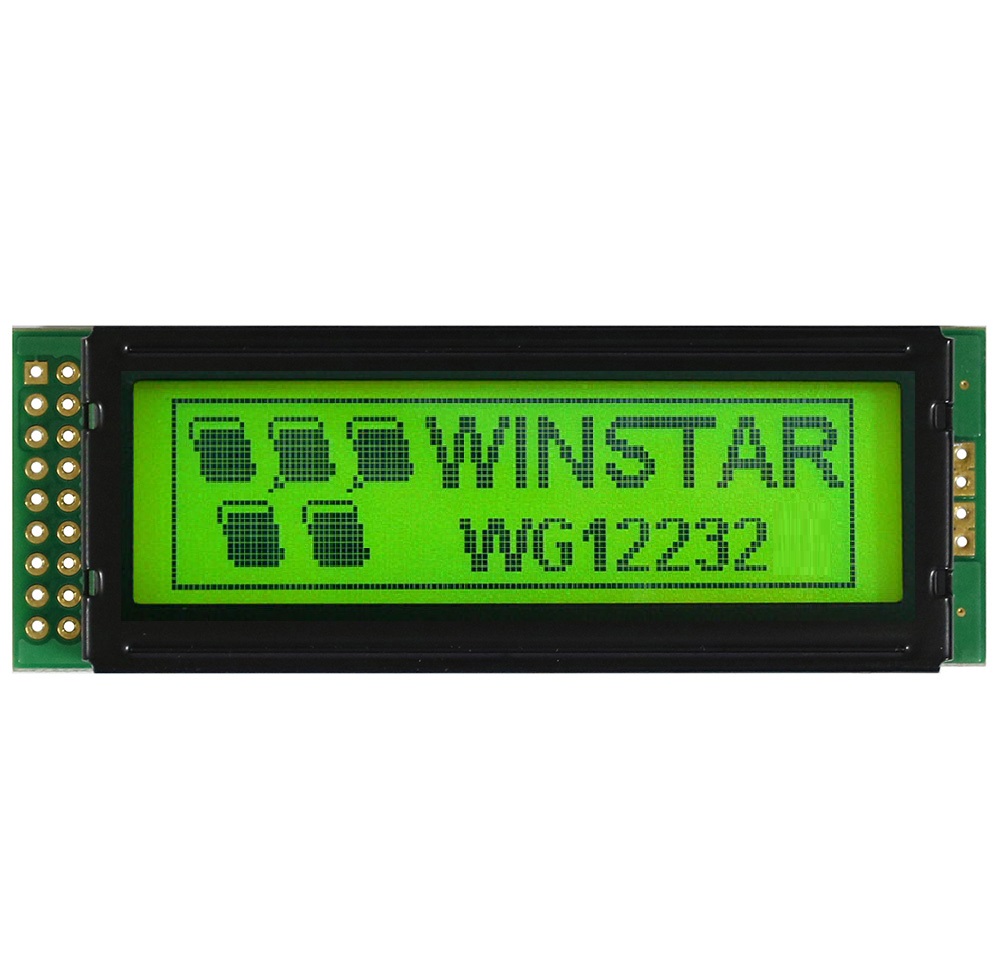

WG12232O-YYH-VE#J

Graphic LCD 2.2'' 122x32, B/L yellow/green, STN yellow/green pos, Transflective, COB, 3V, Interface 6800, 6 O'clock, VNEG (EDGE B/L), IC AiP31520

DESCRIPTION

WG12232O is a monochrome 122x32 graphic 2.2” LCD display module. This 122x32 graphic LCD display is built in with AiP31520 controller IC which supports 6800 8-bit parallel interface. This module is 5V power supply, also negative voltage 3V optional. Please note WG12232O is white LED backlight available only. If you need other color LED, please contact with us.

DRAWING

Winstar WG12232O 122x32 Graphic Displays

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_dd	Power supply for logic
3	V_O	Contrast Adjustment
4	A0	Data/ Instruction select signal
5	E1	Enable signal
6	E2	Enable signal
7	NC/CL	No connection / External clock 2KHz
8	NC/E	No connection / Enable signal
9	R/W	Read/Write select signal
10~17	DB0~DB7	Data bus line
18	/RST	Controller reset signal, Active Low

Mechanical Data

Item	Standard Value	Unit
Module Dimension	77.8 × 27.2	mm
Viewing Area	60.0 × 18.0	mm
Dot Pitch	0.44 × 0.49	mm
Dot Size	0.40 × 0.45	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	4.45	V

SKU: WG12232O-YYH-VE#J

Brand: Winstar

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Prezzi per quantità

Quantità

10+

25+

Prezzo

€14,90

€10,90

€10,50

€10,20

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€14,90 IVA esclusa

Overview
Specifiche
Download
Contattaci

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_dd	Power supply for logic
3	V_O	Contrast Adjustment
4	A0	Data/ Instruction select signal
5	E1	Enable signal
6	E2	Enable signal
7	NC/CL	No connection / External clock 2KHz
8	NC/E	No connection / Enable signal
9	R/W	Read/Write select signal
10~17	DB0~DB7	Data bus line
18	/RST	Controller reset signal, Active Low

Mechanical Data

Item	Standard Value	Unit
Module Dimension	77.8 × 27.2	mm
Viewing Area	60.0 × 18.0	mm
Dot Pitch	0.44 × 0.49	mm
Dot Size	0.40 × 0.45	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	4.45	V

Specifiche di prodotto

Brand	Winstar
Size	2.2"
Risoluzione	122x32
Area Attiva (mm)	53.64x15.64
Dot Size	0.40x0.45
Colore B/L, Tipo LCD	B/L yellow/green, STN yellow/green pos
Alimentazione	3V
Interfaccia Display	6800
Display IC	AiP31520
Struttura Costruttiva	COB
Angolo Visione	6H
Frame	No
Touch Panel	No touch
Temperatura O. (°C)	-20~70
Connessione Display	Soldering PAD
Nr. Pin	18
Passo Pin	2.54mm
Preferred - Not Preferred	Preferred
