WG240128B-YGH-VZ#

Graphic LCD 4.8'' 240x128, B/L yellow/green, STN gray pos., COB, 5V, Interface 8080, 6 O'clock, VNEG

DESCRIPTION



WG240128B is a 240 x 128 graphic LCD module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240x128 graphic LCD module is built in with RA6963 controller and negative voltage built in on module.  It supports 8080 8-bit parallel interface and 5V power supply, this module is temperature compensation optional, and touch panel optional.  WG240128B module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

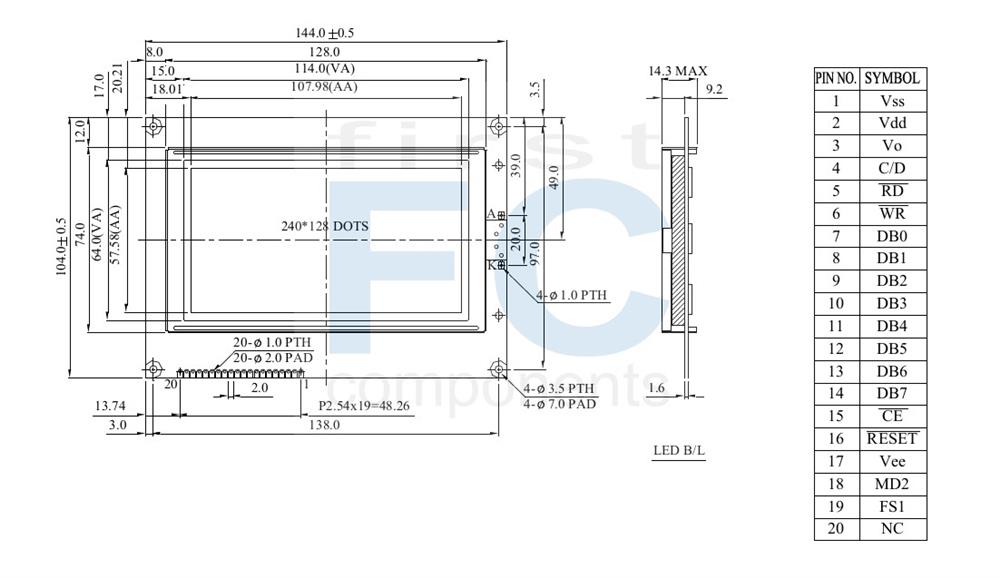

DRAWING

240x128 Graphic LCD, 240x128 LCD Module - Winstar WG240128B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 C/D Data/ Instruction select signal
5 /RD Data read. Read data from LCD Controller
6 /WR Data write. Write data into LCD Controller
7~14 DB0~DB7 Data bus line
15 /CE Enable signal
16 /RESET Controller reset signal, Active Low
17 VEE Negative Voltage Output
18 MD2 H: 32 columns ; L: 40 columns
19 FS1 Selection of font; H : 6 * 8 , L : 8 * 8
20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 144.0 × 104.0 mm
Viewing Area 114.0 × 64.0 mm
Mounting Hole 138.0 × 97.0 mm
Dot Pitch 0.45 × 0.45 mm
Dot Size 0.43 × 0.43 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 19.5 V


SKU: WG240128B-YGH-VZ#
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€58,80
€52,00
€43,60

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€58,80 IVA esclusa

DESCRIPTION



WG240128B is a 240 x 128 graphic LCD module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240x128 graphic LCD module is built in with RA6963 controller and negative voltage built in on module.  It supports 8080 8-bit parallel interface and 5V power supply, this module is temperature compensation optional, and touch panel optional.  WG240128B module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

240x128 Graphic LCD, 240x128 LCD Module - Winstar WG240128B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 C/D Data/ Instruction select signal
5 /RD Data read. Read data from LCD Controller
6 /WR Data write. Write data into LCD Controller
7~14 DB0~DB7 Data bus line
15 /CE Enable signal
16 /RESET Controller reset signal, Active Low
17 VEE Negative Voltage Output
18 MD2 H: 32 columns ; L: 40 columns
19 FS1 Selection of font; H : 6 * 8 , L : 8 * 8
20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 144.0 × 104.0 mm
Viewing Area 114.0 × 64.0 mm
Mounting Hole 138.0 × 97.0 mm
Dot Pitch 0.45 × 0.45 mm
Dot Size 0.43 × 0.43 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 19.5 V


Specifiche di prodotto
Brand Winstar
Size 4.8"
Risoluzione 240x128
Area Attiva (mm) 107.98x57.58
Dot Size 0.43x0.43
Colore B/L, Tipo LCD B/L yellow/green, STN gray pos
Alimentazione 5V
Interfaccia 8080
Controllore a Bordo RA6963
Struttura COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 4.8"
Risoluzione 240x128
Area Attiva (mm) 107.98x57.58
Dot Size 0.43x0.43
Colore B/L, Tipo LCD B/L yellow/green, STN gray pos
Alimentazione 5V
Interfaccia 8080
Controllore a Bordo RA6963
Struttura COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
