    Character LCD 1.2" 8x2, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock
    Brand: Winstar
    Cod.: WH0802A1-TMI-ET#

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €7,80
    €7,00
    €6,60
    €6,40

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €7,80 IVA esclusa
    i h

    DESCRIPTION

    The WH0802A1 is an 8-character by 2-line LCD display module (8x2 Character LCD Display Module) with a module dimension of 58.0 x 32.0 mm and an active area size of 27.81 x 11.5 mm (1.18" diagonal). It operates with a 5V power supply, compatible with 3V, while the negative voltage is limited to 3V. The 8x2 LCD module comes with a PCB board that includes mounting holes, facilitating easy installation in various applications.

    This 8x2 Character LCD Display Module is available with or without LED backlight options and offers various LCD panel colors, including gray, yellow/green, and blue. The WH0802A1 features the ST7066 controller (or equivalent), which supports different language fonts like English/Japanese, English/Western European, English/Eastern European, English/Scandinavian European, English/Cyrillic (Russian), and Hebrew/Arabic.

    The WH0802A1 model provides different interfaces, including the default 6800 4/8-bit parallel interface using the ST7066 IC. Additionally, it offers optional SPI and I2C interfaces when using the RW1063 IC.

    There are three interface options for the WH0802A1 series:
    WH0802A1: 6800 interface (ST7066 IC)
    WH0802A2: SPI interface (RW1063 IC)
    WH0802A3: I2C interface (RW1063 IC)

    This 1.18-inch LCD display module with an 8x2 display format is well-suited for integration into various small-scale measuring instruments and monitoring devices. Its compact size and ability to provide basic numerical and text displays make it ideal for applications such as:

    • Detectors: It can be utilized in temperature gauges, humidity meters, gas detectors, etc., to display measurement results or status information efficiently.
    • Angle Measurement Devices: This display can showcase precise angle data in angle measurement tools, enhancing the accuracy of the instrument.
    • Digital Voice Recorders: Small-sized voice recorders can use this display to show recording time, mode settings, and other essential information.
    • Mini Timers: Suitable for small-scale timers, this display module can present time and timing results effectively.
    • Handheld Instruments: The module is well-suited for various handheld measuring devices like electronic rangefinders, handheld temperature and humidity meters, providing users with clear and concise information.
    • Compact Monitoring Devices: In applications requiring the monitoring of environmental changes, such as small weather stations, this display allows for the presentation of relevant data in a straightforward manner.


    These diverse applications highlight the versatility of the WH0802A1 8x2 LCD display module, offering a simple yet effective means of information display in a range of compact measuring instruments and monitoring tools.

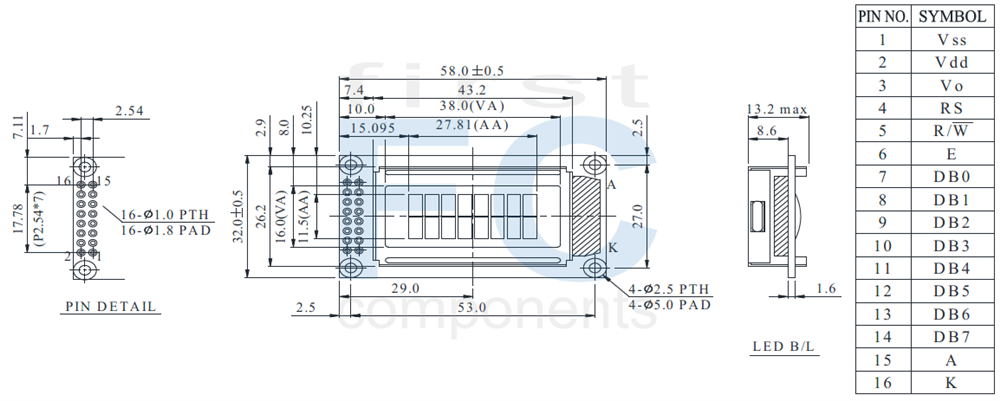

    DRAWING

    SPECIFICATIONS

    Mechanical Data

    ItemDimensionUnit
    Number of Characters 8 Characters x 2 Lines -
    Module dimension 58.0 x 32.0 x 13.2 (MAX) mm
    View area 38.0 x 16.0 mm
    Active area 27.81 x 11.5 mm
    Dot size 0.56 x 0.66 mm
    Dot pitch 0.60 x 0.70 mm
    Character size 2.96 x 5.56 mm
    Character pitch 3.55 x 5.94 mm
    Duty 1/16
    Backlight Type LED
    IC ST7066U
    Interface 6800



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃
    Input Voltage VI VSS - VDD V
    Supply Voltage For Logic VDD-VSS -0.3 - 7 V
    Supply Voltage For LCD VDD-Vo -0.3 - 13 V



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For Logic VDD-VSS - 4.5 5.0 5.5 V
    Supply Voltage For LCD VDD-V0 Ta=-20℃
    Ta=25℃
    Ta=70℃
    -
    4.2
    3.5
    -
    4.35
    -
    5.5
    4.5
    -
    V
    V
    V
    Input High Volt. VIH - 0.7 VDD - VDD V
    Input Low Volt. VIL - VSS - 0.6 V
    Output High Volt. VOH - 3.9 - VDD V
    Output Low Volt. VOL - 0 - 0.4 V
    Supply Current IDD VDD=5.0V 1.0 1.2 1.5 mA



    Interface Pin Function

    Pin No.SymbolLevelDescription
    1 VSS 0V Ground
    2 VDD 5.0V Supply Voltage for logic
    3 VO (Variable) Operating voltage for LCD
    4 RS H/L H: DATA, L: Instruction code
    5 R/W H/L H: Read   L: Write
    6 E H,H→L Chip enable signal
    7 DB0 H/L Data bus line
    8 DB1 H/L Data bus line
    9 DB2 H/L Data bus line
    10 DB3 H/L Data bus line
    11 DB4 H/L Data bus line
    12 DB5 H/L Data bus line
    13 DB6 H/L Data bus line
    14 DB7 H/L Data bus line
    15 A - Power supply for B/L +
    16 K - Power supply for B/L -
    Specifiche di prodotto
    Size 1.2"
    Resolution 8x2
    Active Area (mm) 27.81x11.50
    Dot Size 0.56x0.66
    B/L color, LCD type B/L white, STN blue neg
    Power supply 5V
    Display Interface 6800
    Display IC ST7066
    Constructive Structure COB
    View Angle 6H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
