WH1602O-TMI-JT#

Character LCD 2.3'' 16x2, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION



Winstar WH1602O is a 16x2 Character dot Matrix LCD Display Module which is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel.  WH1602O is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH1602O series, details as below:
►WH1602O : 6800 interface (ST7066 IC)
►WH1602O2 : I2C interface (RW1063 IC)

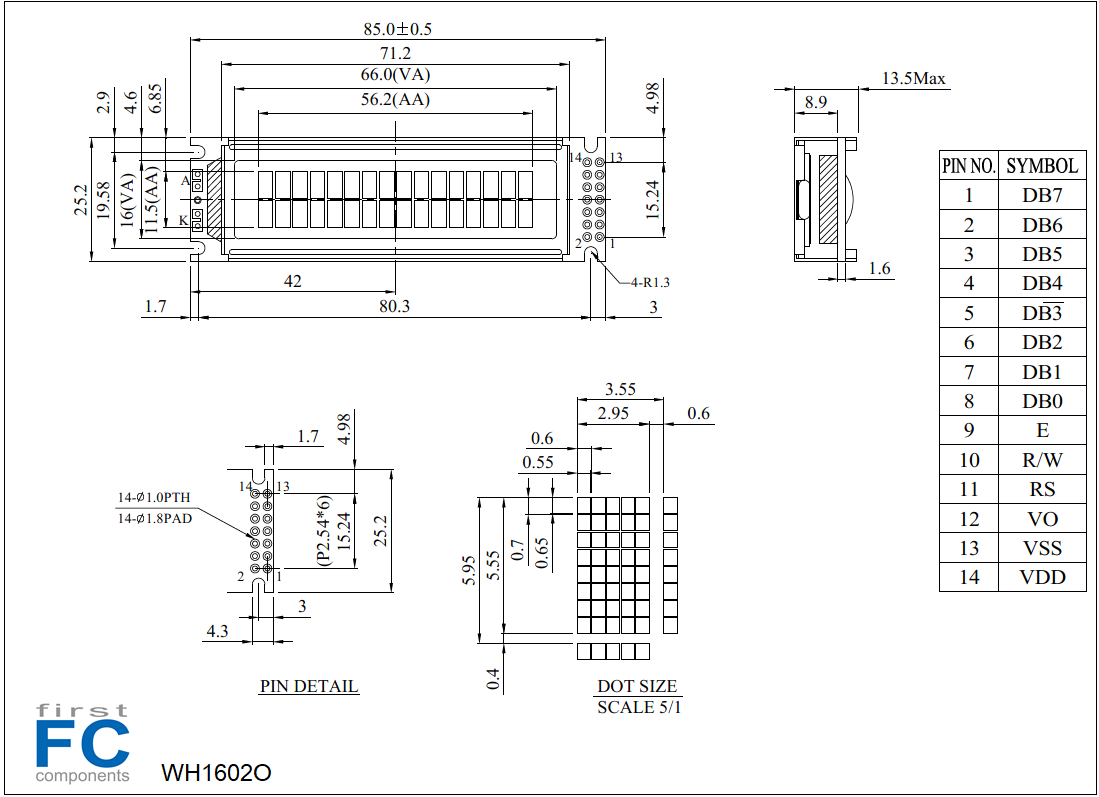

DRAWING

Winstar WH1602O - Mono LCD Character Display 16x2

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1~8 DB7~DB0 Data bus line
9 E Enable signal
10 R/W Read/Write select signal
11 RS Data/ Instruction select signal
12 VO Contrast Adjustment
13 VSS Ground
14 VDD Power supply for logic



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 25.2 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 80.3 × 19.58 mm
Character Size 2.95 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp. Version module @25°C
VDD-VO 3.70 V
SKU: WH1602O-TMI-JT#
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€5,70
€4,10
€4,00
€3,90

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€5,70 IVA esclusa

DESCRIPTION



Winstar WH1602O is a 16x2 Character dot Matrix LCD Display Module which is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel.  WH1602O is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH1602O series, details as below:
►WH1602O : 6800 interface (ST7066 IC)
►WH1602O2 : I2C interface (RW1063 IC)


DRAWING

Winstar WH1602O - Mono LCD Character Display 16x2

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1~8 DB7~DB0 Data bus line
9 E Enable signal
10 R/W Read/Write select signal
11 RS Data/ Instruction select signal
12 VO Contrast Adjustment
13 VSS Ground
14 VDD Power supply for logic



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 25.2 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 80.3 × 19.58 mm
Character Size 2.95 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp. Version module @25°C
VDD-VO 3.70 V
Specifiche di prodotto
Brand Winstar
Size 2.3"
Risoluzione 16x2
Area Attiva (mm) 56.20x11.50
Dot Size 0.55x0.65
Colore B/L, Tipo LCD B/L white, STN blue neg
Alimentazione 5V
Interfaccia Display 6800
Display IC ST7066
Struttura Costruttiva COB
Angolo Visione 6H
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 14
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.3"
Risoluzione 16x2
Area Attiva (mm) 56.20x11.50
Dot Size 0.55x0.65
Colore B/L, Tipo LCD B/L white, STN blue neg
Alimentazione 5V
Interfaccia Display 6800
Display IC ST7066
Struttura Costruttiva COB
Angolo Visione 6H
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 14
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
