WL0F0007000A8NAAFSA00-FC

Name: WL0F0007000A8NAAFSA00-FC
SKU: WL0F0007000A8NAAFSA00-FC
Price: 106.20 EUR
Availability: InStock

Si tratta dela prima recensione per questo prodotto

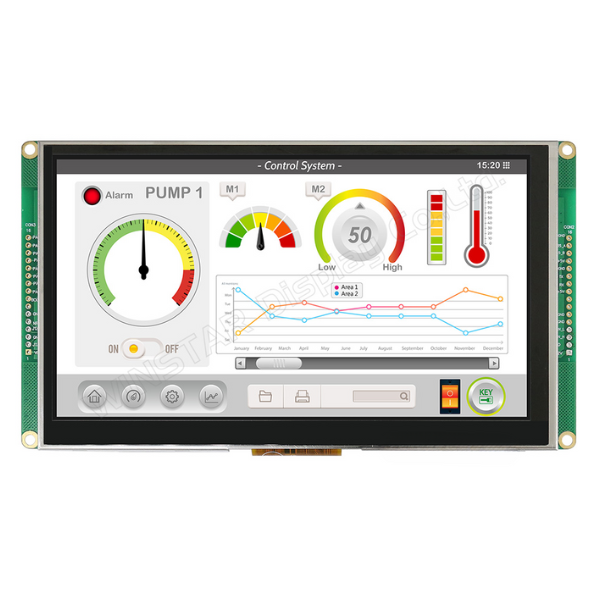

TFT 7" 1024x600, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO Support, High Brightness 1100cd/m², Wide View Angle (IPS), No Touch

Brand: Winstar

Cod.: WL0F0007000A8NAAFSA00-FC

Kit accessori

Added Accessory 1

Prezzi per quantità

Quantità

10+

Prezzo

€106,20

€95,50

€89,80

Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

Disponibilità: Disponibile

€106,20 IVA esclusa

Quantità:

i h

Overview
Specifiche
Download
Contattaci

DESCRIPTION

7 Inch Smart Display (CAN series) Features:

+12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 6 Watt.
Self-testing after booting function.
CAN bus communication interface.
Supports Custom CAN ID protocol, default baud rate at 250Kbps.
Built in 16MB external flash memory to store the font and Object Dictionary Data.
Support capacitive touch panel (CTP).
Build in buzzer and can be controlled by Master Device.
Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
GPIO PIN support with 3.3V TTL.
Design the UI without writing a line of code by Winstar GUI builder! (►Link to GUI Builder Introduction)

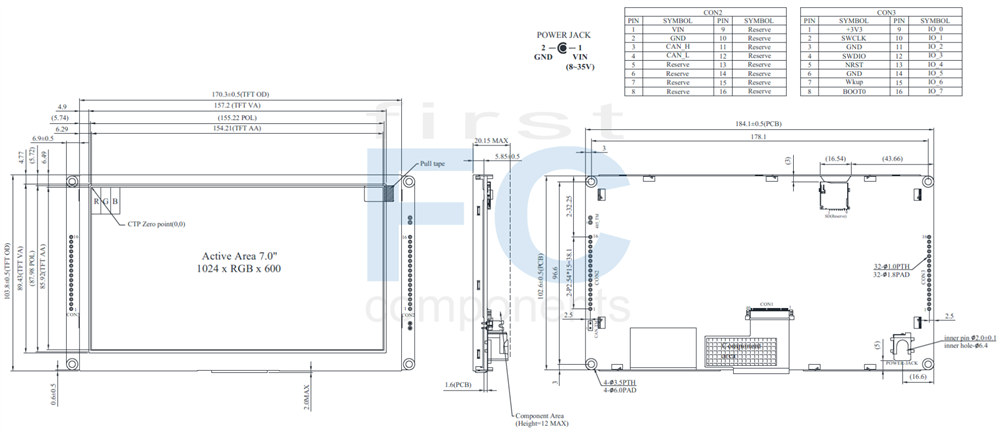

DRAWING

SPECIFICATIONS

General Specifications

General information

Item	Standard Value	Unit
Operating voltage	8V~35V dynamic	Vdc
Communication Interface	CAN bus	Vpp
MCU	STM32F746	N/A
Flash Memory	16	MB
LCD display size	7	inch
Dot Matrix	1024 x RGB x 600(TFT)	dot
Module dimension	184.1(W) x 103.8(H) x 22(D)	mm
Active area	154.2144 x 85.92	mm
Pixel pitch	0.1506 x 0.1432	mm
Brightness	Min: 1000; Typ: 1100	cd/m2
LCD type	TFT, Normally Black, Transmissive
View Direction	85/85/85/85
Aspect Ratio	16:9
With/Without TP	Without TP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VIN	-	8	12	35	V
Supply Current	I(mA)	-	-	660	-	mA

BOM

Item	Description
LCM	WF70-1024600A8L#0SP0-FC
PCBA	SV10007R00A8K00N0114

Interface Pin Function

CON2 definition:

Pin	Symbol	Function	Remark
1	VIN	Power supply V+	Input
2	GND	Power supply GND input	Input
3	CAN_H	CAN bus High	I/O
4	CAN_L	CAN bus Low	I/O
5	Reserve	-	-
6	Reserve	-	-
7	Reserve	-	-
8	Reserve	-	-
9	Reserve	-	-
10	Reserve	-	-
11	Reserve	-	-
12	Reserve	-	-
13	Reserve	-	-
14	Reserve	-	-
15	Reserve	-	-
16	Reserve	-	-

CON3 definition:

Pin	Symbol	Function	Remark
1	+3V3	3.3V power for JTAG interface	Output
2	SWCLK	CLK pin for JTAG interface	Input
3	GND	GND for JTAG interface	Output
4	SWDIO	Data pin fot JTAG interface	I/O
5	NRST	Reset pin for JTAG interface	Input
6	GND	Power GND	Output
7	WKUP	WKup,ADC,Timer,Event,I/O	Input
8	BOOT0	Lo: Internal flash boot (Default) Hi: External flash boot	Input
9	IO0	ADC,DAC,Timer,Event,I/O @3.3V	PA5
10	IO1	ADC,Timer,Event,I/O @3.3V	PA6
11	IO2	ADC,Timer,Event,I/O @3.3V	PA7
12	IO3	ADC,Timer,Event,I/O @3.3V	PA8
13	IO4	ADC,Timer,Event,I/O @3.3V	PC13
14	IO5	ADC,Timer,Event,I/O @3.3V	PB11
15	IO6	ADC,Timer,Event,I/O @3.3V	PA15
16	IO7	RST,ADC,Event,I/O @3.3V	PD11

@3.3V : I/O allow below 3.3V input, If exceeding 3.3V may cause MCU damage

Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection

Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC

Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01

Specifiche di prodotto

Size	7"
Resolution	1024x600
Active Area (mm)	154.21x85.92
Color	Full Color
Power supply	12V
Display Interface	CAN Bus + GPIO
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Preferred - Not Preferred	Preferred
