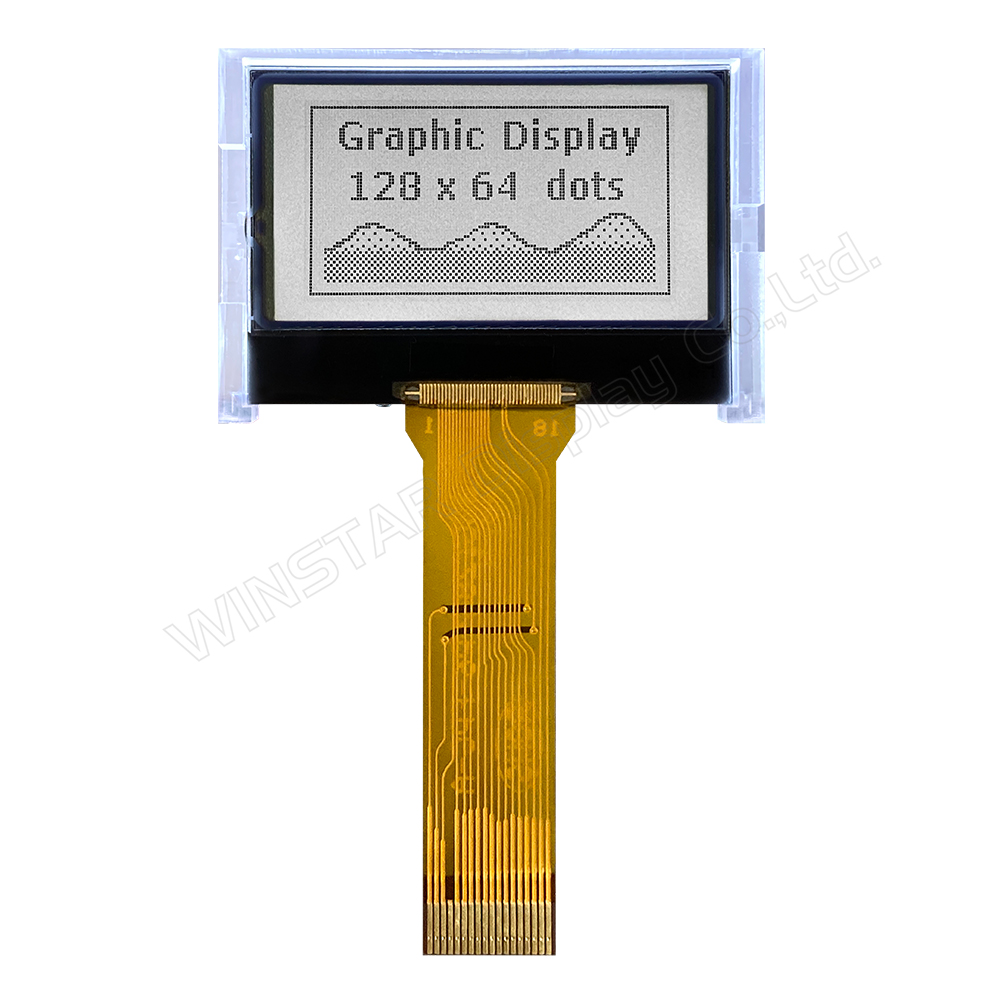

WO12864-85HT1#FC

Graphic LCD 1.15'' 128x64, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock (IC ST7567S)

DESCRIPTION

Monochrome graphic LCD module made of 128x64 dot matrix format. This COG module is built in with ST7567S IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface, 1/65 driving duty, 1/9 Bias. WO12864-xxxT1#FC is the alternative model for WO12864-xxxT#FC corresponding IC shortage or longer lead-time. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃. This LCD COG 128x64 display is very suitable for applications that demand more compact package displays.

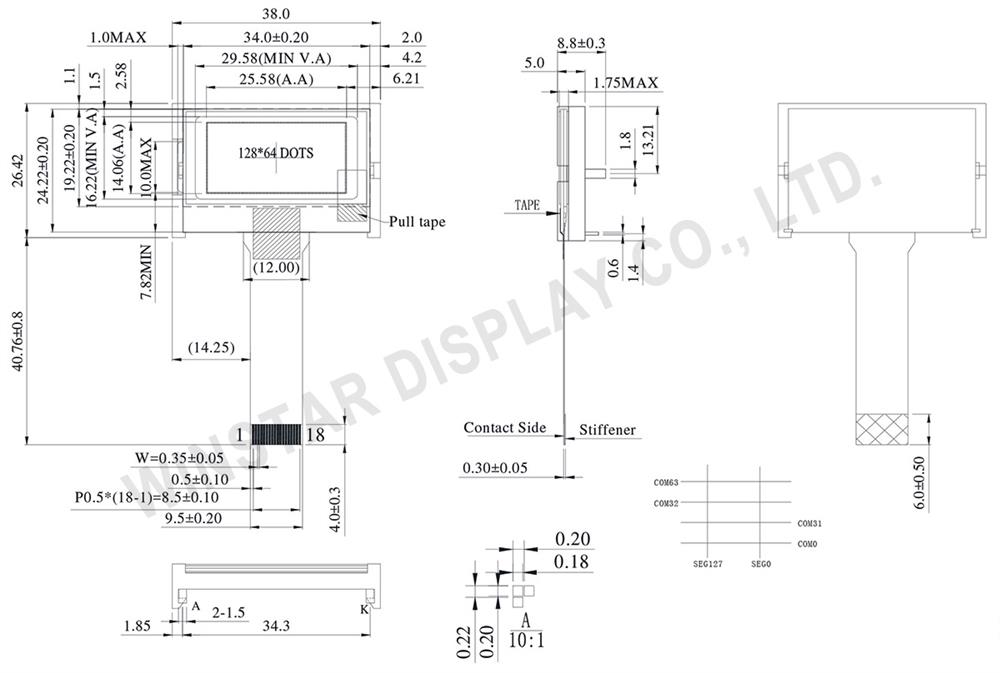

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply pin for logic.
2 VSS Ground pin, connected to 0V
3 CSB Chip select input pin.
4 NC NC
5 RSTB Hardware reset input pin
6 A0 It determines whether the access is related to data or
command.
7 RWR
C86MPU TypeRWRDescription
H 6800 series R/W Read/Write control input pin.
R/W="H":read
R/W="L":write.
L 8080 series /WR Write enable input pin.
Signals on D[7:0] will be latched at the rising edge of /WR signal.
8 ERD
C86MPU TypeERDDescription
H 6800 series E Read/Write control input pin.
R/W="H": When E is "H", D[7:0] are in output mode.
R/W="L": Signals on D[7:0] are latched at the falling edge of E signal
L 8080 series /RD Read enable input pin.
When /RD is "L", D[7:0] are in output mode.
9~16 D0~D7 8-bit bi-directional data bus. Connect to the data bus of 8-bit
microprocessor. When CSB is non-active (CSB=“H”), D[7:0]
pins are high impedance.
17 C86 C86 selects the microprocessor type in parallel interface mode
18 PSB Interface selection



General Specification

ItemDimensionUnit
Number of dots 128 × 64
Module dimension 38.0 × 26.42 × 8.8 mm
View area 29.58 × 16.22 mm
Active area 25.58 × 14.06 mm
Dot size 0.18 × 0.20 mm
Dot pitch 0.20 × 0.22 mm
Duty 1/65 DUTY,1/9 BIAS
View direction 6 o’clock
Backlight Type LED
IC ST7567S
Interface 6800/8080/4-Line SPI



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80
Input Voltage VI -0.3 VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 4.0 V
LCD Power supply voltage V0-XV0 -0.3 14.0 V



Electrical Characteristics

ItemSymbolConditionMin.Typ.Max.Unit
Supply Voltage For Logic VDD-VSS 2.7 3.0 3.3 V
Supply Voltage For LCD VOP Ta=-20℃
Ta=25℃
Ta=70℃

8.9

9.1

9.3
V
V
V
Input High Volt. VIH 0.7VDD VDD V
Input Low Volt. VIL VSS 0.3VDD V
Output High Volt. VOH 0.8VDD VDD V
Output Low Volt. VOL VDD 0.2VDD V
Supply Current IDD VDD=3.0V 1.5 mA

SKU: WO12864-85HT1#FC
Brand: Winstar
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€8,00
€5,90
€5,70
€5,50

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€8,00 IVA esclusa

DESCRIPTION

Monochrome graphic LCD module made of 128x64 dot matrix format. This COG module is built in with ST7567S IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface, 1/65 driving duty, 1/9 Bias. WO12864-xxxT1#FC is the alternative model for WO12864-xxxT#FC corresponding IC shortage or longer lead-time. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃. This LCD COG 128x64 display is very suitable for applications that demand more compact package displays.

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply pin for logic.
2 VSS Ground pin, connected to 0V
3 CSB Chip select input pin.
4 NC NC
5 RSTB Hardware reset input pin
6 A0 It determines whether the access is related to data or
command.
7 RWR
C86MPU TypeRWRDescription
H 6800 series R/W Read/Write control input pin.
R/W="H":read
R/W="L":write.
L 8080 series /WR Write enable input pin.
Signals on D[7:0] will be latched at the rising edge of /WR signal.
8 ERD
C86MPU TypeERDDescription
H 6800 series E Read/Write control input pin.
R/W="H": When E is "H", D[7:0] are in output mode.
R/W="L": Signals on D[7:0] are latched at the falling edge of E signal
L 8080 series /RD Read enable input pin.
When /RD is "L", D[7:0] are in output mode.
9~16 D0~D7 8-bit bi-directional data bus. Connect to the data bus of 8-bit
microprocessor. When CSB is non-active (CSB=“H”), D[7:0]
pins are high impedance.
17 C86 C86 selects the microprocessor type in parallel interface mode
18 PSB Interface selection



General Specification

ItemDimensionUnit
Number of dots 128 × 64
Module dimension 38.0 × 26.42 × 8.8 mm
View area 29.58 × 16.22 mm
Active area 25.58 × 14.06 mm
Dot size 0.18 × 0.20 mm
Dot pitch 0.20 × 0.22 mm
Duty 1/65 DUTY,1/9 BIAS
View direction 6 o’clock
Backlight Type LED
IC ST7567S
Interface 6800/8080/4-Line SPI



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80
Input Voltage VI -0.3 VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 4.0 V
LCD Power supply voltage V0-XV0 -0.3 14.0 V



Electrical Characteristics

ItemSymbolConditionMin.Typ.Max.Unit
Supply Voltage For Logic VDD-VSS 2.7 3.0 3.3 V
Supply Voltage For LCD VOP Ta=-20℃
Ta=25℃
Ta=70℃

8.9

9.1

9.3
V
V
V
Input High Volt. VIH 0.7VDD VDD V
Input Low Volt. VIL VSS 0.3VDD V
Output High Volt. VOH 0.8VDD VDD V
Output Low Volt. VOL VDD 0.2VDD V
Supply Current IDD VDD=3.0V 1.5 mA

Specifiche di prodotto
Brand Winstar
Size 1.15"
Risoluzione 128x64
Area Attiva (mm) 25.58x14.06
Dot Size 0.18x0.20
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 3.3V
Interfaccia Display 6800/8080/SPI
Display IC ST7567S
Struttura Costruttiva COG
Angolo Visione 6H
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 18
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 1.15"
Risoluzione 128x64
Area Attiva (mm) 25.58x14.06
Dot Size 0.18x0.20
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 3.3V
Interfaccia Display 6800/8080/SPI
Display IC ST7567S
Struttura Costruttiva COG
Angolo Visione 6H
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 18
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
