WO12864-85HT#FC

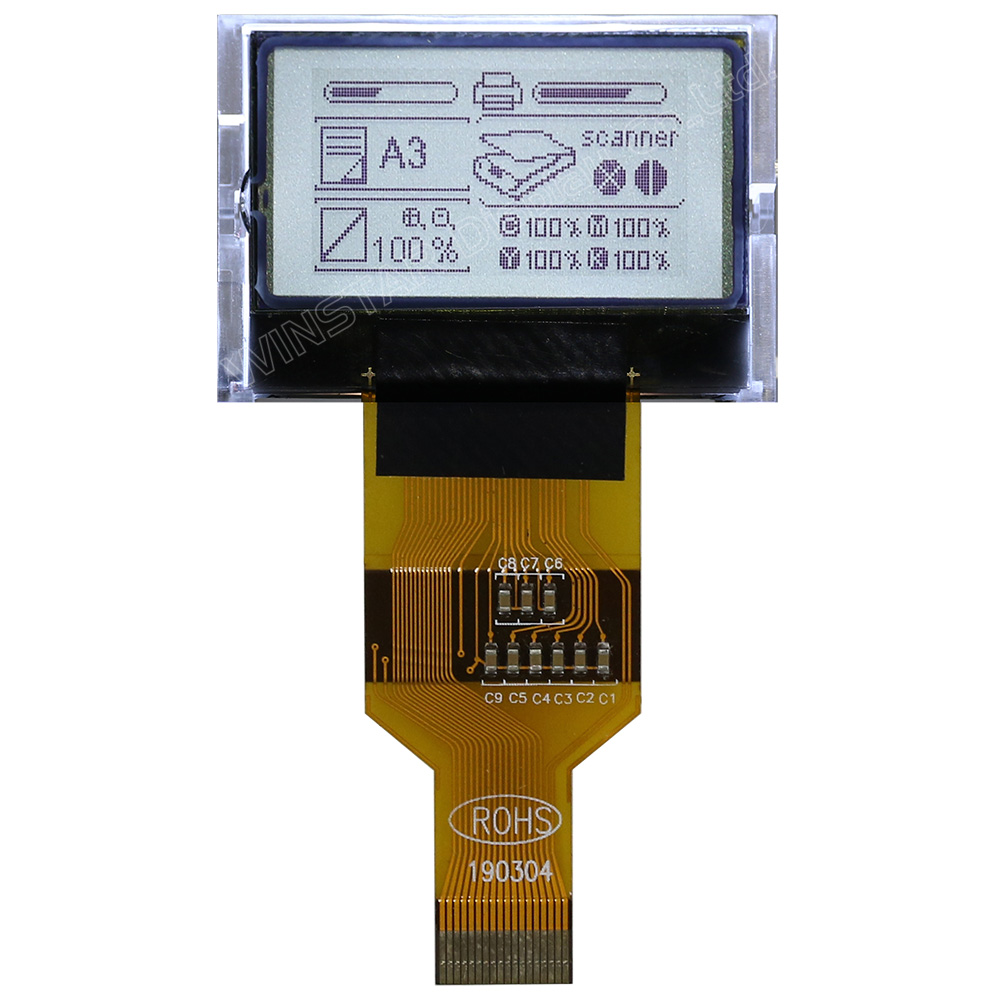

Immagine di WO12864-85HT#FC Immagine di WO12864-85HT#FC
Graphic LCD 1.15'' 128x64, B/L white, FSTN white pos, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock

DESCRIPTION

Monochrome graphic LCD module made of 128x64 dot matrix format. This COG Module is built in with ST7565P IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface. It has the same outline dimension as WX12864T2, but VA size and AA size are different. The power supply (VDD) is 3.3V, VOP 9.1V. It is an alternative item to replace WX12864T2 which TAB IC had been phased out: outline dimension, interface, pin assignment, main electrical characteristics are all the same, just AA size and VA size are different.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. This module is available in FSTN positive LCD and with White LED backlight; without backlight option is available as well.

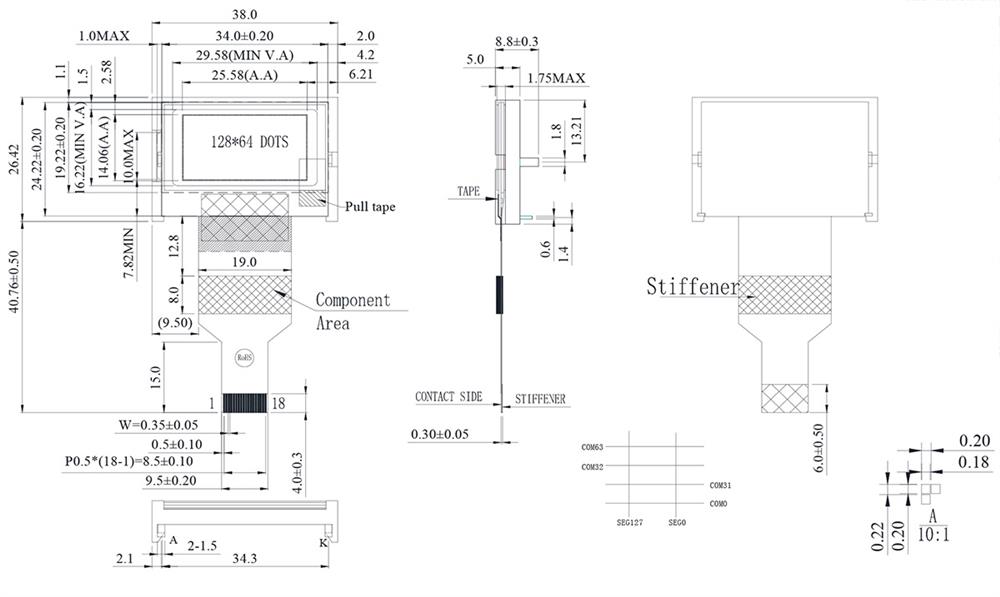

DRAWING

WO12864T

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolI/ODescription
1 VDD _ Power supply pin for logic.
2 VSS _ Ground pin, connected to 0V
3 /CS1 I Chip select input pin. Interface access is enabled when CS1B is "L" and CB2 is "H". When chip is on-active (CS1B="H" or CS2="L"), D[7:0] pins are high impedance.
4 CS2
5 /RES I Hardware reset input pin. When RSTB is "L", internal initialization is executed and the internal registers will be initialized.
6 A0 I It determines whether the access is related to data or command.
A0="H": Indicates that signals on D[7:0] are display data.
A0="L": Indicates that signals on D[7:0] are command.
7 R/W I Read/Write execution control pin. When PSB is "H",
RWR is not used in serial interface and should fix to "H" by VDD.
C86MPU TypeRWRDescription
H 6800 series R/W Read/Write control input pin.
R/W="H":read
R/W="L":write.
L 8080 series /WR Write enable input pin.
Signals on D[7:0] will be latched at the rising edge of /WR signal.

8 E I Read/Write execution control pin. When PSB is "H",
C86MPU TypeERDDescription
H 6800 series E Read/Write control input pin.
R/W="H": When E is "H", D[7:0] are in output mode.
R/W="L": Signals on D[7:0] are latched at the falling edge of E signal
L 8080 series /RD Read enable input pin.
When /RD is "L", D[7:0] are in output mode.

ERD is not used in serial interface and should fix to "H" by VDD.
9-16 D0-D7 I/O Data bus line
17 C86 I C86 selects the microprocessor type in parallel interface mode.
PSBC86Selected Interface
"H" "H" Parallel 6800 Series MPU Interface
"H" "L" Parallel 8080 Series MPU Interface
"L" "X" Serial 4-Line SPI Interface

Please refer to "APPLICATION NOTES" and "Microprocessor Interface" (Section 6) for detailed connection of the selected interface.
18 P/S I PSB selects the interface type: Serial or Parallel.



General Specification

ItemDimensionUnit
Number of dots 128 × 64 －
Module dimension 38.0 × 26.42 × 8.8 mm
View area 29.58 × 16.22 mm
Active area 25.58 × 14.06 mm
Dot size 0.18 × 0.20 mm
Dot pitch 0.20 × 0.22 mm
Duty 1/65 DUTY,1/9 BIAS
Backlight Type LED
IC ST7565P



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Power Supply Voltage VDD -0.3 － 3.6 V
Power supply voltage (VDD standard) V0, VOUT -0.3 － 14.5 V
Power supply voltage (VDD standard) V1, V2, V3, V4 -0.3 － V0+0.3 V



Electrical Characteristics

ItemSymbolConditionMin.Typ.Max.Unit
Supply Voltage For Logic VDD-VSS － 3.0 － 3.3 V
Supply Voltage For LCD VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
8.9
－		 －
9.1
－		 －
9.3
－		 V
V
V
Input High Volt. VIH － 0.8 VDD － VDD V
Input Low Volt. VIL － Vss － 0.2 VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － Vss － 0.2 VDD V
Supply Current IDD VDD=3.3V － － 2.0 mA




SKU: WO12864-85HT#FC
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€5,90
€4,30
€4,20
€4,10

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€5,90 IVA esclusa

DESCRIPTION

Monochrome graphic LCD module made of 128x64 dot matrix format. This COG Module is built in with ST7565P IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface. It has the same outline dimension as WX12864T2, but VA size and AA size are different. The power supply (VDD) is 3.3V, VOP 9.1V. It is an alternative item to replace WX12864T2 which TAB IC had been phased out: outline dimension, interface, pin assignment, main electrical characteristics are all the same, just AA size and VA size are different.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. This module is available in FSTN positive LCD and with White LED backlight; without backlight option is available as well.



DRAWING

WO12864T

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolI/ODescription
1 VDD _ Power supply pin for logic.
2 VSS _ Ground pin, connected to 0V
3 /CS1 I Chip select input pin. Interface access is enabled when CS1B is "L" and CB2 is "H". When chip is on-active (CS1B="H" or CS2="L"), D[7:0] pins are high impedance.
4 CS2
5 /RES I Hardware reset input pin. When RSTB is "L", internal initialization is executed and the internal registers will be initialized.
6 A0 I It determines whether the access is related to data or command.
A0="H": Indicates that signals on D[7:0] are display data.
A0="L": Indicates that signals on D[7:0] are command.
7 R/W I Read/Write execution control pin. When PSB is "H",
RWR is not used in serial interface and should fix to "H" by VDD.
C86MPU TypeRWRDescription
H 6800 series R/W Read/Write control input pin.
R/W="H":read
R/W="L":write.
L 8080 series /WR Write enable input pin.
Signals on D[7:0] will be latched at the rising edge of /WR signal.

8 E I Read/Write execution control pin. When PSB is "H",
C86MPU TypeERDDescription
H 6800 series E Read/Write control input pin.
R/W="H": When E is "H", D[7:0] are in output mode.
R/W="L": Signals on D[7:0] are latched at the falling edge of E signal
L 8080 series /RD Read enable input pin.
When /RD is "L", D[7:0] are in output mode.

ERD is not used in serial interface and should fix to "H" by VDD.
9-16 D0-D7 I/O Data bus line
17 C86 I C86 selects the microprocessor type in parallel interface mode.
PSBC86Selected Interface
"H" "H" Parallel 6800 Series MPU Interface
"H" "L" Parallel 8080 Series MPU Interface
"L" "X" Serial 4-Line SPI Interface

Please refer to "APPLICATION NOTES" and "Microprocessor Interface" (Section 6) for detailed connection of the selected interface.
18 P/S I PSB selects the interface type: Serial or Parallel.



General Specification

ItemDimensionUnit
Number of dots 128 × 64 －
Module dimension 38.0 × 26.42 × 8.8 mm
View area 29.58 × 16.22 mm
Active area 25.58 × 14.06 mm
Dot size 0.18 × 0.20 mm
Dot pitch 0.20 × 0.22 mm
Duty 1/65 DUTY,1/9 BIAS
Backlight Type LED
IC ST7565P



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Power Supply Voltage VDD -0.3 － 3.6 V
Power supply voltage (VDD standard) V0, VOUT -0.3 － 14.5 V
Power supply voltage (VDD standard) V1, V2, V3, V4 -0.3 － V0+0.3 V



Electrical Characteristics

ItemSymbolConditionMin.Typ.Max.Unit
Supply Voltage For Logic VDD-VSS － 3.0 － 3.3 V
Supply Voltage For LCD VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
8.9
－		 －
9.1
－		 －
9.3
－		 V
V
V
Input High Volt. VIH － 0.8 VDD － VDD V
Input Low Volt. VIL － Vss － 0.2 VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － Vss － 0.2 VDD V
Supply Current IDD VDD=3.3V － － 2.0 mA




Specifiche di prodotto
Brand Winstar
Size 1.15"
Risoluzione 128x64
Area Attiva (mm) 25.58x14.06
Dot Size 0.18x0.20
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 3.3V
Interfaccia Display 6800/8080/SPI
IC Controller Display ST7565P
Struttura COG
Angolo Visione 6H
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 18
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 1.15"
Risoluzione 128x64
Area Attiva (mm) 25.58x14.06
Dot Size 0.18x0.20
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 3.3V
Interfaccia Display 6800/8080/SPI
IC Controller Display ST7565P
Struttura COG
Angolo Visione 6H
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 18
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
