CSEA102-1602A001C1AC-Q5

Female Header - Straight Contact, Single Row, 16 Pins, Pitch 1.27mm, Gold Plated (Mating Contact Length: 2-4mm)

Specifications

Current Rating： 1Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 300VAC
Contact Resistance： 20 mΩMax
Operating Temperature： -40ºC to +105ºC



Material

Contact Material：Phosphor Bronze
Insulation Material：High Temperature Thermoplastic, UL 94V-0 LCP

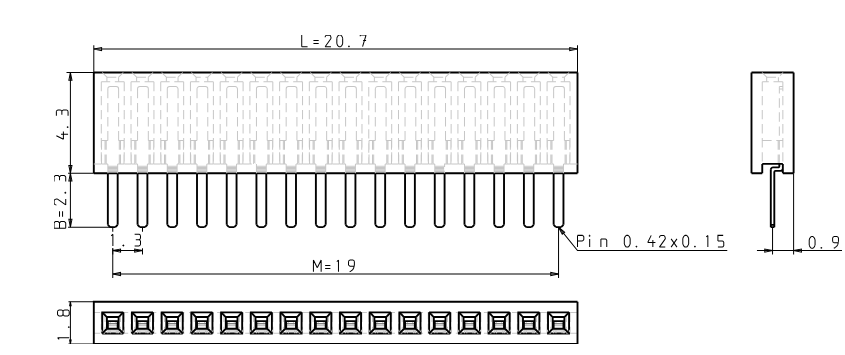

Dimensions

SKU: CSEA102-1602A001C1AC-Q5
Brand: Greenconn
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€0.52
€0.44
€0.42
€0.38
€0.35
€0.29

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€0.52 excl tax

Specifications

Current Rating： 1Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 300VAC
Contact Resistance： 20 mΩMax
Operating Temperature： -40ºC to +105ºC



Material

Contact Material：Phosphor Bronze
Insulation Material：High Temperature Thermoplastic, UL 94V-0 LCP



Dimensions

Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*16
Pin Pitch 1.27mm
Contact Direction DIP
Download
Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*16
Pin Pitch 1.27mm
Contact Direction DIP
