CV4204B-MY-SF-N6

Character LCD 2.89'' 20x4, B/L white, STN gray pos, Transflective, COB, 5V, Interface 6800, 6 O'clock

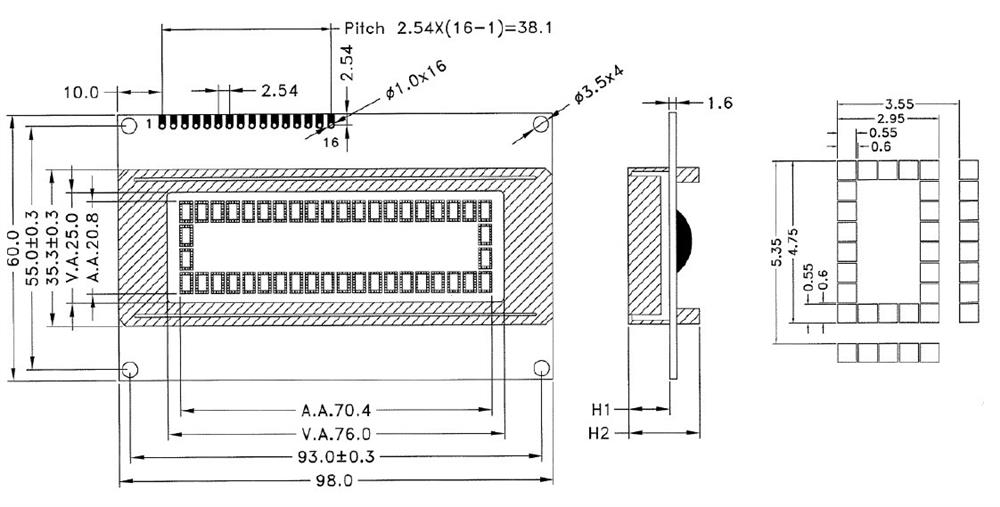

DRAWING

SKU: CV4204B-MY-SF-N6

Brand: Clover

Available: Yes

Price Breaks

Quantity

10+

Price

€22.80

€21.00

€17.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€22.80 excl tax

Products specifications

Brand	Clover
Size	2.89"
Resolution	20x4
Active Area (mm)	70.40x20.80
Dot Size	0.55x0.55
B/L color, LCD type	B/L yellow/green, STN yellow/green pos
Power supply	5V
Display Interface	6800
Display IC	ST7066
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
