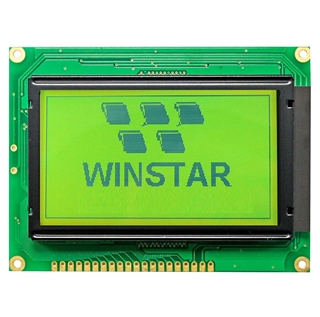

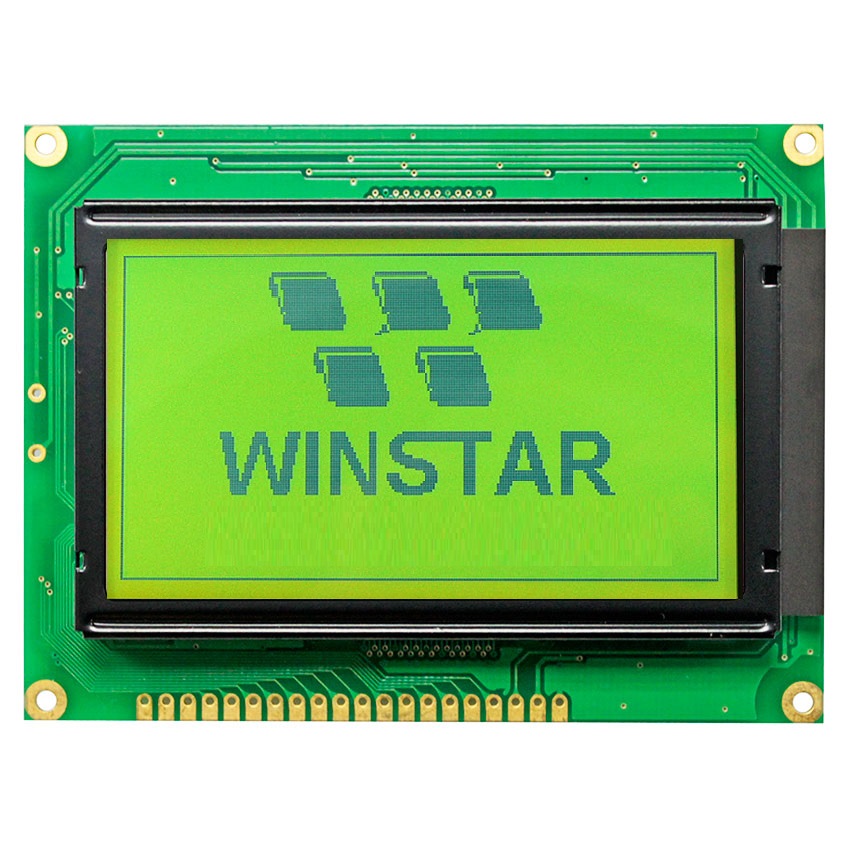

WG16080D-YYH-VZ#

Graphic LCD 2.96" 160x80, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 8080, 6 O'clock, VNEG

DRAWING

SKU: WG16080D-YYH-VZ#

Brand: Winstar

Available: No

Accessory Kit

Price Breaks

Quantity

10+

Price

€38.50

€30.80

€29.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€38.50 excl tax

Date	Notice	Link/Description
2021/03/18	PCN	RAIO IC RA6963-N > RA6963-N1 for monochrome COB LCDs

For more details, please contact us @ [email protected]

Products specifications

Brand	Winstar
Size	2.96"
Resolution	160x80
Active Area (mm)	67.17x33.57
Dot Size	0.39x0.39
B/L color, LCD type	B/L yellow/green, STN yellow/green pos
Power supply	5V
Display Interface	8080
Display IC	LC7981
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	20
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
