gen4-PA

Programming Adaptor for gen4 Intelligent Display modules (Picaso and Diablo16) for connecting and programming gen4 module to a computer using a microUSB Cable

The gen4-PA (Gen4 Programming Adaptor) is compatible with all of the gen4 range of Intelligent Display modules which feature Picaso or Diablo16 graphics processors. It is included in the Starter Kit (SK) packs, and is a quick and easy way to interface and program the gen4 range.

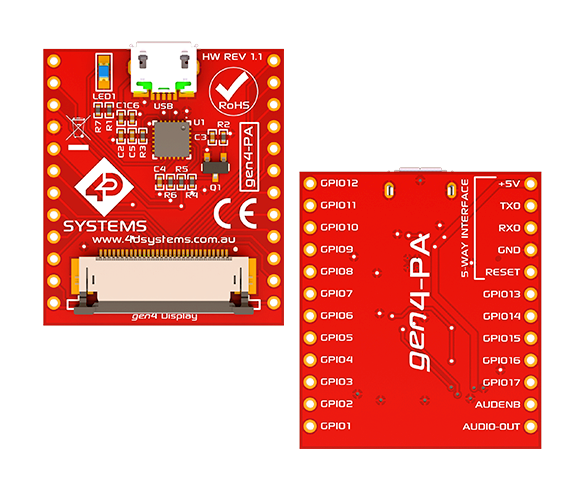

The gen4-PA is a programming adaptor for the gen4 display module that also breaks out the signals found on the 30-way FFC cable coming from your gen4 display module. These signals are available via 2.54mm pitch (0.1”) pads around the edge of the gen4-PA. It also groups the common 5-way signals found on other 4D Systems products (and the gen4-IB), for easy interface to other products such as our -AR and -PI kits for the Arduino and Raspberry Pi.

The gen4-PA replaces the need for a separate standard programmer, such as the uUSB-PA5 or 4D Programming Cable. The gen4-PA has the circuitry found on the uUSB-PA5-II built into it, and features a microUSB jack, for connection to your PC. Cable is not included with the gen4-PA or in our Starter Kits, this needs to be purchased seperately.

The gen4-PA can be used for programming gen4 display modules, interfacing to a breadboard for prototyping, interfacing to Arduino and Raspberry Pi interfaces (see gen4 -AR and -PI kits), or for interfacing to virtually any host.



Information about the Adaptor

  • USB 2.0 compliant Full Speed 12Mbps maximum speed, Suspend supported.
  • Hardware or Xon/Xoff handshaking supported, 300bps to 2Mbps
  • UART supports 5, 6, 7, or 8 data bits, 1, 1.5 or 2 stop bits, odd/even/mark/space and no parity
  • Power on reset circuit
  • Virtual COM port drivers allow operation with existing COM port PC applications
  • USB powered
  • -40 to +85 degrees Celsius temp range
  • Traffic/Operation LED indicates board status
  • Breakout pads of all the signals found on the gen4 30way interface, in 2.54mm (0.1") spacing
  • RoHS Compliant



How to determine which COM port is allocated to the gen4-PA

  • Go to Control panel and double click on the "System" Icon and the "System Properties" window will open up.
  • Click on the "Hardware" window tab and then the "Device Manager" button.
  • Go down the list and expand the "Ports (COM & LPT)" devices.
  • There you will see the COM port that has been allocated for the gen4-PA.
  • Take note of the COM port number (e.g. COM4) as you will need this when configuring the COM port for applications that need to communicate with the gen4-PA such as the Workshop4 IDE.
SKU: gen4-PA
Brand: 4D Systems
Available: No
Price Breaks
Quantity
1+
10+
Price
€9.50
€9.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€9.50 excl tax

The gen4-PA (Gen4 Programming Adaptor) is compatible with all of the gen4 range of Intelligent Display modules which feature Picaso or Diablo16 graphics processors. It is included in the Starter Kit (SK) packs, and is a quick and easy way to interface and program the gen4 range.

The gen4-PA is a programming adaptor for the gen4 display module that also breaks out the signals found on the 30-way FFC cable coming from your gen4 display module. These signals are available via 2.54mm pitch (0.1”) pads around the edge of the gen4-PA. It also groups the common 5-way signals found on other 4D Systems products (and the gen4-IB), for easy interface to other products such as our -AR and -PI kits for the Arduino and Raspberry Pi.

The gen4-PA replaces the need for a separate standard programmer, such as the uUSB-PA5 or 4D Programming Cable. The gen4-PA has the circuitry found on the uUSB-PA5-II built into it, and features a microUSB jack, for connection to your PC. Cable is not included with the gen4-PA or in our Starter Kits, this needs to be purchased seperately.

The gen4-PA can be used for programming gen4 display modules, interfacing to a breadboard for prototyping, interfacing to Arduino and Raspberry Pi interfaces (see gen4 -AR and -PI kits), or for interfacing to virtually any host.



Information about the Adaptor

  • USB 2.0 compliant Full Speed 12Mbps maximum speed, Suspend supported.
  • Hardware or Xon/Xoff handshaking supported, 300bps to 2Mbps
  • UART supports 5, 6, 7, or 8 data bits, 1, 1.5 or 2 stop bits, odd/even/mark/space and no parity
  • Power on reset circuit
  • Virtual COM port drivers allow operation with existing COM port PC applications
  • USB powered
  • -40 to +85 degrees Celsius temp range
  • Traffic/Operation LED indicates board status
  • Breakout pads of all the signals found on the gen4 30way interface, in 2.54mm (0.1") spacing
  • RoHS Compliant



How to determine which COM port is allocated to the gen4-PA

  • Go to Control panel and double click on the "System" Icon and the "System Properties" window will open up.
  • Click on the "Hardware" window tab and then the "Device Manager" button.
  • Go down the list and expand the "Ports (COM & LPT)" devices.
  • There you will see the COM port that has been allocated for the gen4-PA.
  • Take note of the COM port number (e.g. COM4) as you will need this when configuring the COM port for applications that need to communicate with the gen4-PA such as the Workshop4 IDE.
