HIA128800T004ZZC06

TFT 10.1" 1280x800 with CTP Embedded Display Kit - i.MX8M 1.6GHz Quad-Core 64bit ARM Cortex-A53, Memory LPDDR4 2GB, Android/Yocto OS, Multiple interfaces, WiFI & BT Module

DESCRIPTION

POWERTIP's Embedded MPU display kits are the go-to solution to implement Human Machine Interface (HMI) applications. With multiple peripheral interfaces (I2C, UART, SPI, USB2.0, PWM, I2S, etc.), hardware video decoding capability and both Linux or Android OS support any customer requirement can be met. We provide Board Support Packages (BSP) in order to help customers build their own root file system and accelerate development on the embedded system conveniently for their HMI solutions.

This Embedded Kit consits of:

1) System on Module (SoM)

2) Multi-interface CARRIER BOARD

3) 10.1" Industrial grade TFT-LCD High Brightness panel

4) Connection accessories



1. SYSTEM ON MODULE - SoM TYPE-1







2. CARRIER BOARD







3. TFT-LCD







Contact us at technical@first-components.com to have the Board Support Package (BSP) and user guide needed to install your preferred OS. We can also supply pre-built image files to speed up your development!

SKU: HIA128800T004ZZC06
Brand: Powertip
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€367.40
€355.50
€324.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€367.40 excl tax

DESCRIPTION

POWERTIP's Embedded MPU display kits are the go-to solution to implement Human Machine Interface (HMI) applications. With multiple peripheral interfaces (I2C, UART, SPI, USB2.0, PWM, I2S, etc.), hardware video decoding capability and both Linux or Android OS support any customer requirement can be met. We provide Board Support Packages (BSP) in order to help customers build their own root file system and accelerate development on the embedded system conveniently for their HMI solutions.

This Embedded Kit consits of:

1) System on Module (SoM)

2) Multi-interface CARRIER BOARD

3) 10.1" Industrial grade TFT-LCD High Brightness panel

4) Connection accessories



1. SYSTEM ON MODULE - SoM TYPE-1







2. CARRIER BOARD







3. TFT-LCD







Contact us at technical@first-components.com to have the Board Support Package (BSP) and user guide needed to install your preferred OS. We can also supply pre-built image files to speed up your development!

Products specifications
Brand Powertip
Size 10.1"
Resolution 1280x800

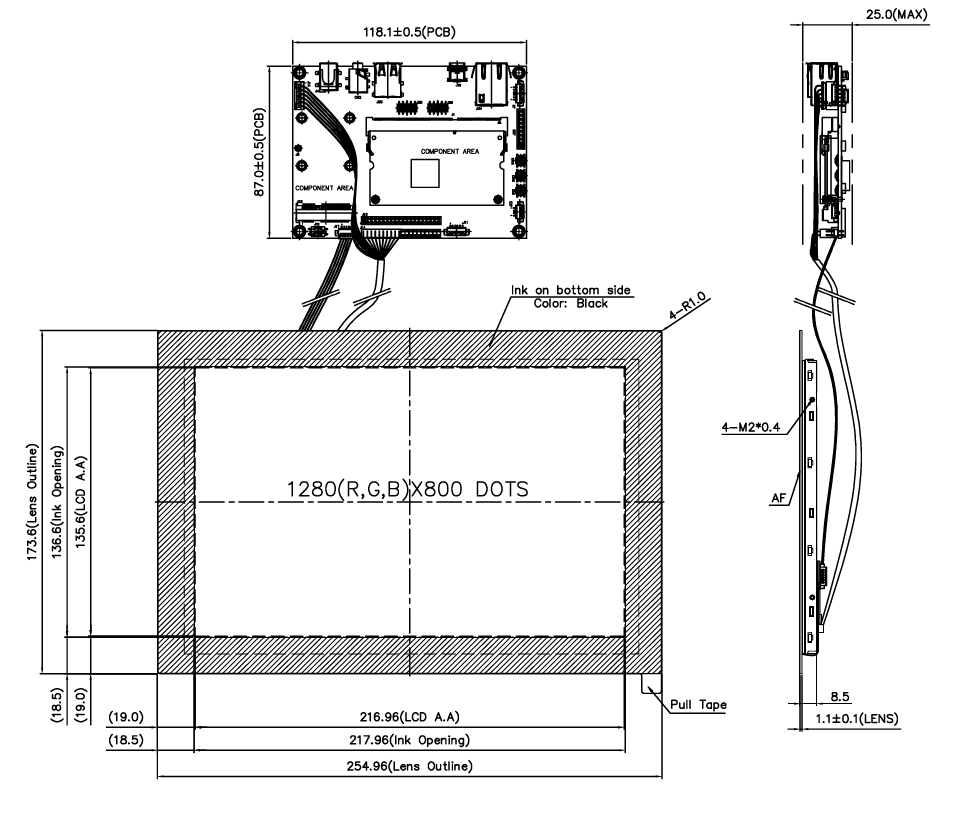

Active Area (mm) 216.96x135.60
CPU i.MX8M 1.6GHz Quad-Core 64bit ARM Cortex-A53
Operating System Android / Yocto
Power supply 12V
Sunlight Readable High 601~1200cd/m²
Touch Panel Capacitive
O. Temperature (°C) -20~70
In the Box SoM TYPE-1 + CARRIER BOARD + TFT Panel + LVDS Cable + CTP Cable
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Powertip
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
CPU i.MX8M 1.6GHz Quad-Core 64bit ARM Cortex-A53
Operating System Android / Yocto
Power supply 12V
Sunlight Readable High 601~1200cd/m²
Touch Panel Capacitive
O. Temperature (°C) -20~70
In the Box SoM TYPE-1 + CARRIER BOARD + TFT Panel + LVDS Cable + CTP Cable
Preferred - Not Preferred Preferred
