WH1602B-TMI-ET#100

Picture of WH1602B-TMI-ET#100 Picture of WH1602B-TMI-ET#100 Picture of WH1602B-TMI-ET#100

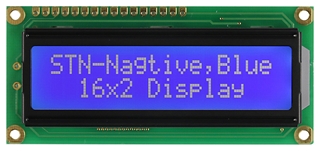

Character LCD 2.3" 16x2, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock, Super wide operating temperature -30+80°C

MOQ

After sample PO, MP MOQ 1K



DESCRIPTION

WH1602B is one of the most popular character LCD display module 16x2 types in the market. WH1602B 16x2 LCD display model is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel.

Key Features
  • Two line (2 x 16) characters
  • Power supply：5V or 3V
  • Interface: WH1602B1for 4 line SPI, WH1602B3 for I2C
  • Driver: Winstar IC providing high level functions
  • Direct access to low level controller is available for advanced control
  • Space reserved for eight custom characters

There are different interface options for WH1602B series, details as below:
►WH1602B : 6800 interface (ST7066 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B1: SPI interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B2: 6800 interface (ST7066 IC), thickness 10.0 mm
►WH1602B3: I2C interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm

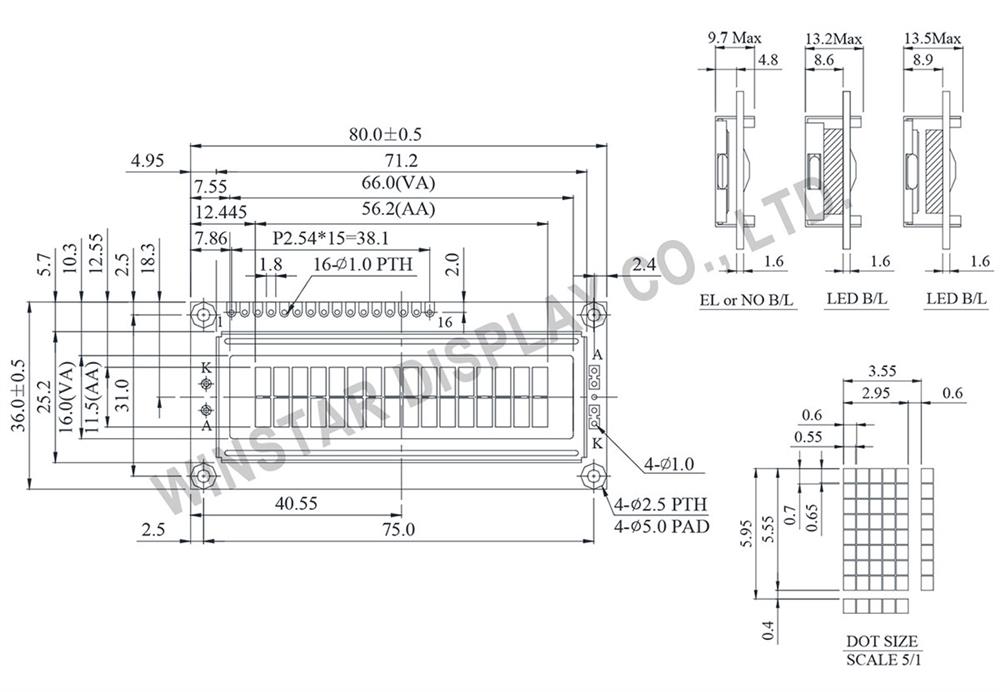

DRAWING

Display 16x2, LCD Display 16x2, LCD Module 16x2, LCD Display Module 16x2, Winstar Display LCD WH1602B

INTERFACE



Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -
SKU: WH1602B-TMI-ET#100
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€7.90
€5.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€7.90 excl tax

MOQ

After sample PO, MP MOQ 1K



DESCRIPTION

WH1602B is one of the most popular character LCD display module 16x2 types in the market. WH1602B 16x2 LCD display model is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel.

Key Features
  • Two line (2 x 16) characters
  • Power supply：5V or 3V
  • Interface: WH1602B1for 4 line SPI, WH1602B3 for I2C
  • Driver: Winstar IC providing high level functions
  • Direct access to low level controller is available for advanced control
  • Space reserved for eight custom characters

There are different interface options for WH1602B series, details as below:
►WH1602B : 6800 interface (ST7066 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B1: SPI interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B2: 6800 interface (ST7066 IC), thickness 10.0 mm
►WH1602B3: I2C interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm



DRAWING

Display 16x2, LCD Display 16x2, LCD Module 16x2, LCD Display Module 16x2, Winstar Display LCD WH1602B

INTERFACE



Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -
Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -30~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -30~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
