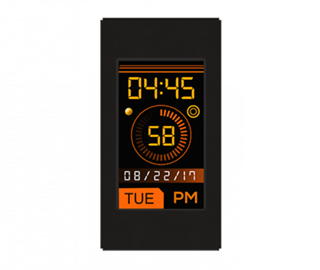

IOD-09TH

TFT 0.96'' 80x160, Intelligent non-touch Display Module with the integrated WiFi ESP8266 Module, 4D Systems Workshop4 IDE or Arduino IDE installed

The IoD-09 (Internet of Displays) series is a range of miniature display modules Designed and Manufactured by 4D Systems.

The IoD-09 modules feature a full colour 0.9” TFT LCD display. They are powered by the WiFi enabled ESP8266, which offers an array of functionality and options for any Designer / Integrator / User.

The IoD-09 modules can be easily programmed using 4D Systems Workshop4 IDE or the Arduino IDE installed with the ESP8266 core.

The feature-rich 4D Systems GFX4dIoD09 library enables speedy development of applications by providing extensive primitive graphics functions, enhanced graphics via Workshop4, SD card access, and much more, all integrated into a single library.

The on-board SD card socket enables the use of FAT16 or FAT32 formatted cards for extensive storage capabilities.

The IoD-09 modules feature 12 pads, 6 on each end, for easy and simple connection to an application or mother board, or for connecting to accessory boards for a range of functionality advancements.

The IoD-09TH features Through Hole (TH) pads with male pin headers mounted, and the IoD-09SM features Surface Mount (SM) pads.

This range of modules has been designed to minimise the impact of display related circuitry, and provide a platform suitable for integration into a product.

The IoD-09 modules can act as master or slave devices, they can be effortlessly connected to the internet, can display a raft information and graphics, along with the capability to communicate to SPI, I2C, and/or 1-wire devices, as well as having general GPIO for digital control/input.



Information about the IoD-09 Display Modules

  • Powerful Intelligent LCD-TFT display module powered by the Espressif ESP8266 SoC.
  • 80 x 160 Resolution, RGB 65K true to life colours, TFT Screen.
  • Built in WiFi suitable for ‘Internet of things’ applications.
  • 802.11 b/g/n/e/i support
  • Integrated TCP/IP protocol stack
  • WiFi 2.4 GHz, supporting WPA/WPA2 and WEP/TKIP/AES, along with STA/AP/STA+AP/P2P operation modes
  • 4Mbit (512kb) of Flash memory for User Application Code and Data.
  • 128Kb of SRAM of which 80kb is available for the User.
  • 12 pin/pad interface, for all signals, power, communications and programming.
  • On-board microSD memory card connector for multimedia storage and data logging purposes.
  • DOS compatible file access (FAT16 or FAT32 format).
  • Display full colour images, animations, and icons.
  • 4.0V to 5.5V range operation (single supply).
  • Module dimensions: (TH version) 31.8 x 16.4 x 11.7mm. // (SM version) 37.0 x 16.4 x 5.9mm.
  • Weight: (TH / SM) ~5 g.
  • RoHS, REACH and CE compliant.

The IoD-09TH includes the following items:

  • IoD-09TH WiFi enabled Smart Display Module

Documentation:


pdf 4D-UPA Datasheet 2.6 MB |Rev. 1.5
pdf IoD-09 Datasheet 4.2 MB |Rev. 1.2



Software Tools
4d 4D Workshop4 IDE Product Page
      Arduino IDE Product Page (external)

ESP8266 WiFi Information
ESP8266 SDK + Tools External Link


Libraries


STEP Models
zip IoD-09TH STEP Model 6.7 MB Rev. 1.1

Related Documents
Application Notes Tutorials & Instruction


For any technical clarification, refer to the 4D support center at the link https://4dsystems.com.au/support
SKU: IOD-09TH
Brand: 4D Systems
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€18.40
€17.40
€16.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€18.40 excl tax

The IoD-09 (Internet of Displays) series is a range of miniature display modules Designed and Manufactured by 4D Systems.

The IoD-09 modules feature a full colour 0.9” TFT LCD display. They are powered by the WiFi enabled ESP8266, which offers an array of functionality and options for any Designer / Integrator / User.

The IoD-09 modules can be easily programmed using 4D Systems Workshop4 IDE or the Arduino IDE installed with the ESP8266 core.

The feature-rich 4D Systems GFX4dIoD09 library enables speedy development of applications by providing extensive primitive graphics functions, enhanced graphics via Workshop4, SD card access, and much more, all integrated into a single library.

The on-board SD card socket enables the use of FAT16 or FAT32 formatted cards for extensive storage capabilities.

The IoD-09 modules feature 12 pads, 6 on each end, for easy and simple connection to an application or mother board, or for connecting to accessory boards for a range of functionality advancements.

The IoD-09TH features Through Hole (TH) pads with male pin headers mounted, and the IoD-09SM features Surface Mount (SM) pads.

This range of modules has been designed to minimise the impact of display related circuitry, and provide a platform suitable for integration into a product.

The IoD-09 modules can act as master or slave devices, they can be effortlessly connected to the internet, can display a raft information and graphics, along with the capability to communicate to SPI, I2C, and/or 1-wire devices, as well as having general GPIO for digital control/input.



Information about the IoD-09 Display Modules

  • Powerful Intelligent LCD-TFT display module powered by the Espressif ESP8266 SoC.
  • 80 x 160 Resolution, RGB 65K true to life colours, TFT Screen.
  • Built in WiFi suitable for ‘Internet of things’ applications.
  • 802.11 b/g/n/e/i support
  • Integrated TCP/IP protocol stack
  • WiFi 2.4 GHz, supporting WPA/WPA2 and WEP/TKIP/AES, along with STA/AP/STA+AP/P2P operation modes
  • 4Mbit (512kb) of Flash memory for User Application Code and Data.
  • 128Kb of SRAM of which 80kb is available for the User.
  • 12 pin/pad interface, for all signals, power, communications and programming.
  • On-board microSD memory card connector for multimedia storage and data logging purposes.
  • DOS compatible file access (FAT16 or FAT32 format).
  • Display full colour images, animations, and icons.
  • 4.0V to 5.5V range operation (single supply).
  • Module dimensions: (TH version) 31.8 x 16.4 x 11.7mm. // (SM version) 37.0 x 16.4 x 5.9mm.
  • Weight: (TH / SM) ~5 g.
  • RoHS, REACH and CE compliant.

The IoD-09TH includes the following items:

  • IoD-09TH WiFi enabled Smart Display Module

Documentation:


pdf 4D-UPA Datasheet 2.6 MB |Rev. 1.5
pdf IoD-09 Datasheet 4.2 MB |Rev. 1.2



Software Tools
4d 4D Workshop4 IDE Product Page
      Arduino IDE Product Page (external)

ESP8266 WiFi Information
ESP8266 SDK + Tools External Link


Libraries


STEP Models
zip IoD-09TH STEP Model 6.7 MB Rev. 1.1

Related Documents
Application Notes Tutorials & Instruction


For any technical clarification, refer to the 4D support center at the link https://4dsystems.com.au/support
Products specifications
Brand 4D Systems
Size 0.96"
Resolution 80x160
Viewing Area (mm) 11.52x20.16
Color Full Color
Nr. Of Color RGB 65K
Power supply 5V
Built-in Controller Espressif ESP8266 SoC
Brightness (nits) Standard
Touch Panel No touch
O. Temperature (°C) -20~70
Cd/m² 180
In the Box IN THE BOX: LCD Module
Preferred - Not Preferred Preferred
Download
Products specifications
Brand 4D Systems
Size 0.96"
Resolution 80x160
Viewing Area (mm) 11.52x20.16
Color Full Color
Nr. Of Color RGB 65K
Power supply 5V
Built-in Controller Espressif ESP8266 SoC
Brightness (nits) Standard
Touch Panel No touch
O. Temperature (°C) -20~70
Cd/m² 180
In the Box IN THE BOX: LCD Module
Preferred - Not Preferred Preferred
