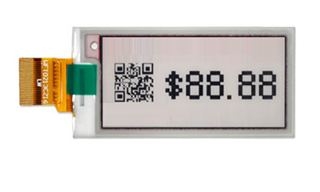

NE021-N001GD

E-paper 2.13'' 212x104, Color Black on White, Interface SPI

DESCRIPTION

The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 2.13” active area contains 212x104 pixels and has 1-bit white/black full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.



FEATURES

  •          High contrast
  •          High reflectance
  •          Contrast ratio 10:1
  •          Ultra wide viewing angle
  •          Ultra low power consumption
  •          Pure reflective mode
  •          Bi-stable display
  •          Commercial temperature range
  •          Landscape, portrait modes
  •          Antiglare hard-coated front surface
  •          Low current deep sleep mode
  •          On chip display RAM
  •          Waveform stored in On-chip OTP
  •          Serial peripheral interface available
  •          On-chip oscillator
  •          On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
  •          I2C signal master interface to read external temperature sensor
  •          Available in COG package IC thickness 280um
SKU: NE021-N001GD
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€12.70
€11.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€12.70 excl tax

DESCRIPTION

The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 2.13” active area contains 212x104 pixels and has 1-bit white/black full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.



FEATURES

  •          High contrast
  •          High reflectance
  •          Contrast ratio 10:1
  •          Ultra wide viewing angle
  •          Ultra low power consumption
  •          Pure reflective mode
  •          Bi-stable display
  •          Commercial temperature range
  •          Landscape, portrait modes
  •          Antiglare hard-coated front surface
  •          Low current deep sleep mode
  •          On chip display RAM
  •          Waveform stored in On-chip OTP
  •          Serial peripheral interface available
  •          On-chip oscillator
  •          On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
  •          I2C signal master interface to read external temperature sensor
  •          Available in COG package IC thickness 280um
Products specifications
Brand Next Vision Display
Size 2.13"
Resolution 212x104
Active Area (mm) 48.55x23.71
Dot Size 0.23x0.22
Color Black on White
Display Interface SPI
Display IC UC8151
O. Temperature (°C) 0~40
Display Connection FPC per ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 2.13"
Resolution 212x104
Active Area (mm) 48.55x23.71
Dot Size 0.23x0.22
Color Black on White
Display Interface SPI
Display IC UC8151
O. Temperature (°C) 0~40
Display Connection FPC per ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
