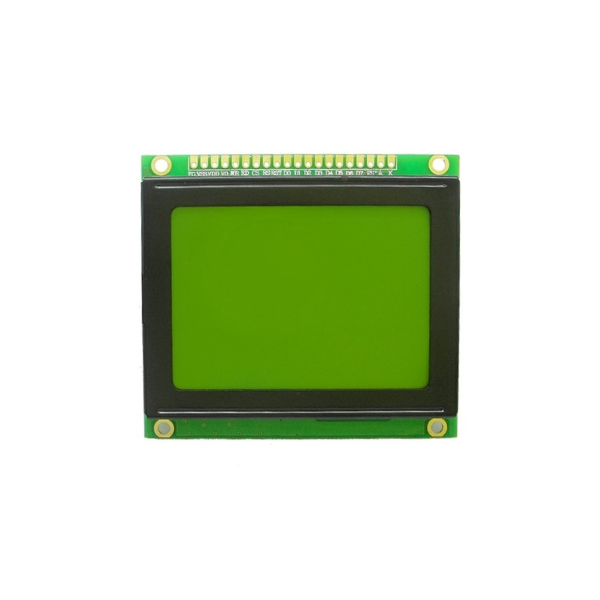

NG12864BN001ML

Graphic LCD 2.7" 128x64, B/L yellow/green, STN yellow/green pos, Transflectuve, COB, 5V, Interface(6800/8080), 6 O'clock, VNEG

FUNCTION & FEATURES

Features:

Dot Matrix: 128×64 Dots
LCD Mode: STN(Y-G)/Positive/Transflective
Controller IC: T6963C or Equivalent
Driving Method: 1/64 Duty; 1/9 Bias
Viewing Angle: 6 O’clock direction
8080 serial 8-Bit MPU Interface
Backlight: LED
Operating Temperature Range:-20°C to 70℃;
Storage Temperature Range: -30°C to 80°C

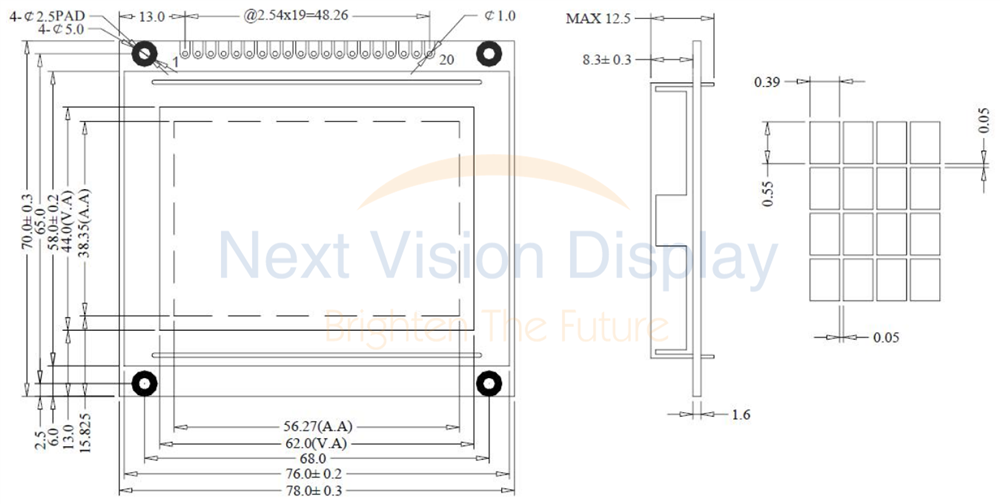

DRAWING

Square LCD Screen, Square Screen TFT, ST7789T3-G4-1 - WF0154ATAAA4DSN0

SPECIFICATIONS

Pin Description

Item	Symbol	Level	Function
1	F.G	0V	Frame Ground
2	GND	0V	Power Ground
3	VDD	5.0V	Power Supply For Logic
4	V0	-	Contrast Adjust
5	/WR	H/L	Write Signal
6	/RD	H/L	Read Signal
7	/CE	H/L	Chip Select Signal
8	C/D	H/L	L: Data Write H: Command Write
9	/RST	H/L	Reset Signal
10～17	DB0～DB7	H/L	Data Bus
18	FS	H/L	Font selection H: 6x8 L:8x8
19	LEDA	5.0V	Power Supply For LED Backlight
20	LEDK	0v	Power Supply For LED Backlight

Mechanical Data

Item	Specifications	Unit
Module size	78.0(L)x70.0(W)x12.5 max(H)	mm
View Area	62.0x40.0	mm
Effective Area	128x64	dots
Dot Size	0.39x0.55	mm
Dot Pitch	0.44x0.60	mm

Absolute Maximum Ratings

Item	Symbol	Standard Value	Unit
Supply voltage	V_DD	-0.3~6.0	V
Input voltage	V_IN	V_SS~V_DD	V
Operating Temperature	T_OP	-20~70	V
Storage Temperature	T_ST	-30~60	℃

Electronical Characteristics

DC Characteristics (VDD=+5V, VSS=0V, Ta==-0~+50°C)

Item	Symbol	Min	Typ	Max	Unit	Condition
Operating Voltage	V_DD	4.8	5.0	5.2	V	V_DD
Supply Current	I_DD	－	8	15	mA	except LED backlight
Input High Voltage	V_IN	V_DD-2.2	-	V_DD	V	RS, RW, E, DB0-DB7
Input Low Voltage	V_IL	0	-	0.8	V	RS, RW, E, DB0-DB7
Output High Voltage	V_OH	V_DD-0.3	-	V_DD	V	Ioh=0.1mA, DB0-DB7
Output Low Voltage	V_OL	－	-	0.3	V	Iol=0.1mA, DB0-DB7
LCD Driving Voltage	V_LCD	16.7	17.0	17.3	V	V_DD-V0

DC Characteristics (VDD=+3.3V, VSS=0V, Ta==-0~+50°C)

Item	Symbol	Min	Typ	Max	Unit	Condition
Operating Voltage	V_DD	3.0	3.3	3.6	V	V_DD
Supply Current	I_DD	－	8	15	mA	except LED backlight
Input High Voltage	V_IN	V_DD-2.2	-	V_DD	V	RS, RW, E, DB0-DB7V
Input Low Voltage	V_IL	0	-	0.8	V	RS, RW, E, DB0-DB7V
Output High Voltage	V_OH	V_DD-0.3	-	V_DD	V	Ioh=0.1mA, DB0-DB7
Output Low Voltage	V_OL	－	-	0.3	V	Iol=0.1mA, DB0-DB7
LCD Driving Voltage	V_LCD	16.7	17.0	17.3	V	V_DD-V0

SKU: NG12864BN001ML

Brand: Next Vision Display

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€21.30

€17.00

€17.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€21.30 excl tax

Overview
Specifications
Download
Contact Us

FUNCTION & FEATURES

Features:

Dot Matrix: 128×64 Dots
LCD Mode: STN(Y-G)/Positive/Transflective
Controller IC: T6963C or Equivalent
Driving Method: 1/64 Duty; 1/9 Bias
Viewing Angle: 6 O’clock direction
8080 serial 8-Bit MPU Interface
Backlight: LED
Operating Temperature Range:-20°C to 70℃;
Storage Temperature Range: -30°C to 80°C

DRAWING

SPECIFICATIONS

Pin Description

Item	Symbol	Level	Function
1	F.G	0V	Frame Ground
2	GND	0V	Power Ground
3	VDD	5.0V	Power Supply For Logic
4	V0	-	Contrast Adjust
5	/WR	H/L	Write Signal
6	/RD	H/L	Read Signal
7	/CE	H/L	Chip Select Signal
8	C/D	H/L	L: Data Write H: Command Write
9	/RST	H/L	Reset Signal
10～17	DB0～DB7	H/L	Data Bus
18	FS	H/L	Font selection H: 6x8 L:8x8
19	LEDA	5.0V	Power Supply For LED Backlight
20	LEDK	0v	Power Supply For LED Backlight

Mechanical Data

Item	Specifications	Unit
Module size	78.0(L)x70.0(W)x12.5 max(H)	mm
View Area	62.0x40.0	mm
Effective Area	128x64	dots
Dot Size	0.39x0.55	mm
Dot Pitch	0.44x0.60	mm

Absolute Maximum Ratings

Item	Symbol	Standard Value	Unit
Supply voltage	V_DD	-0.3~6.0	V
Input voltage	V_IN	V_SS~V_DD	V
Operating Temperature	T_OP	-20~70	V
Storage Temperature	T_ST	-30~60	℃

Electronical Characteristics

DC Characteristics (VDD=+5V, VSS=0V, Ta==-0~+50°C)

Item	Symbol	Min	Typ	Max	Unit	Condition
Operating Voltage	V_DD	4.8	5.0	5.2	V	V_DD
Supply Current	I_DD	－	8	15	mA	except LED backlight
Input High Voltage	V_IN	V_DD-2.2	-	V_DD	V	RS, RW, E, DB0-DB7
Input Low Voltage	V_IL	0	-	0.8	V	RS, RW, E, DB0-DB7
Output High Voltage	V_OH	V_DD-0.3	-	V_DD	V	Ioh=0.1mA, DB0-DB7
Output Low Voltage	V_OL	－	-	0.3	V	Iol=0.1mA, DB0-DB7
LCD Driving Voltage	V_LCD	16.7	17.0	17.3	V	V_DD-V0

DC Characteristics (VDD=+3.3V, VSS=0V, Ta==-0~+50°C)

Item	Symbol	Min	Typ	Max	Unit	Condition
Operating Voltage	V_DD	3.0	3.3	3.6	V	V_DD
Supply Current	I_DD	－	8	15	mA	except LED backlight
Input High Voltage	V_IN	V_DD-2.2	-	V_DD	V	RS, RW, E, DB0-DB7V
Input Low Voltage	V_IL	0	-	0.8	V	RS, RW, E, DB0-DB7V
Output High Voltage	V_OH	V_DD-0.3	-	V_DD	V	Ioh=0.1mA, DB0-DB7
Output Low Voltage	V_OL	－	-	0.3	V	Iol=0.1mA, DB0-DB7
LCD Driving Voltage	V_LCD	16.7	17.0	17.3	V	V_DD-V0

Products specifications

Brand	Next Vision Display
Size	2.7"
Resolution	128x64
Active Area (mm)	56.27x38.35
Dot Size	0.39x0.55
B/L color, LCD type	B/L yellow/green, STN yellow/green pos
Power supply	5V
Display Interface	6800/8080
Display IC	T6963C
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	20
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred

Download

Your name

Your email

Enquiry

Products specifications

Brand	Next Vision Display
Size	2.7"
Resolution	128x64
Active Area (mm)	56.27x38.35
Dot Size	0.39x0.55
B/L color, LCD type	B/L yellow/green, STN yellow/green pos
Power supply	5V
Display Interface	6800/8080
Display IC	T6963C
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	20
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
