NG12864GN003ER

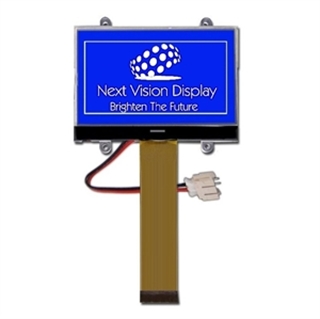

Picture of NG12864GN003ER

Graphic LCD 2.6" 128x64, B/L white, STN blue neg, Transmissive, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

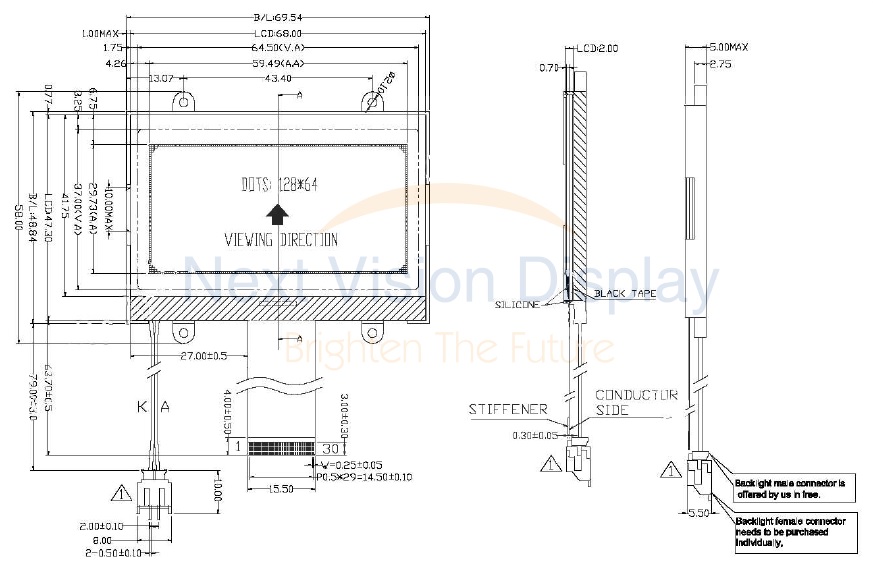

DRAWING

SKU: NG12864GN003ER

Brand: Next Vision Display

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

1+

5+

10+

25+

Price

€14.40

€13.30

€11.20

€10.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€14.40 excl tax

Overview
Specifications
Download
Contact Us

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DRAWING

Products specifications

Brand	Next Vision Display
Size	2.6"
Resolution	128x64
Active Area (mm)	59.49x29.73
Dot Size	0.43x0.43
B/L color, LCD type	B/L white, STN blue neg
Power supply	3.3V
Display Interface	6800/8080/SPI
Display IC	NT7538
Constructive Structure	COG
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	30
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred
