NL022GN003ML

Picture of NL022GN003ML

PMOLED 2.23" Graphic 128x32, Yellow color, COG, 3V, Interface 6800,8080,SPI,I2C, SSD1305 IC (FPC per ZIF Connector)

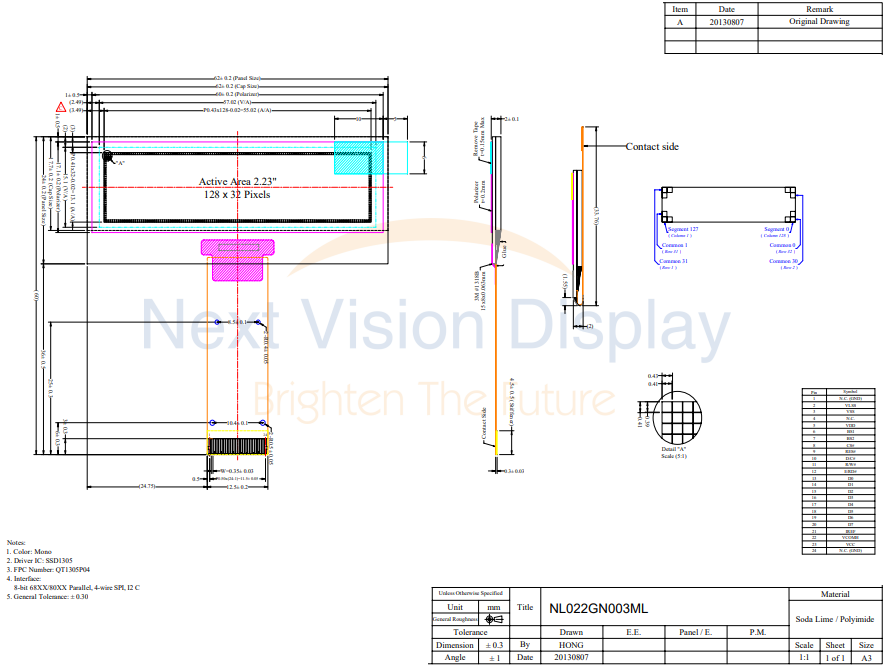

DRAWING

SKU: NL022GN003ML

Brand: Next Vision Display

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

1+

5+

10+

25+

Price

€19.30

€17.80

€15.00

€13.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€19.30 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

Products specifications

Brand	Next Vision Display
Size	2.23"
Resolution	128x32
Active Area (mm)	55.02x13.10
Dot Size	0.41x0.39
Color	Yellow
Power supply	3V
Display Interface	6800/8080/SPI/I2C
Display IC	SSD1305
Constructive Structure	COG
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-40~85
Display Connection	FPC per ZIF Connector
Pin Nr.	24
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Next Vision Display
Size	2.23"
Resolution	128x32
Active Area (mm)	55.02x13.10
Dot Size	0.41x0.39
Color	Yellow
Power supply	3V
Display Interface	6800/8080/SPI/I2C
Display IC	SSD1305
Constructive Structure	COG
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-40~85
Display Connection	FPC per ZIF Connector
Pin Nr.	24
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
