NT020-N001DW

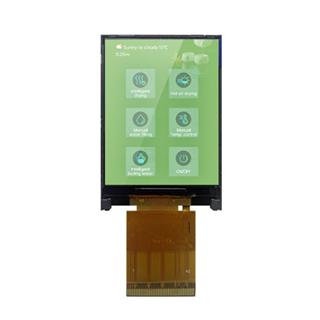

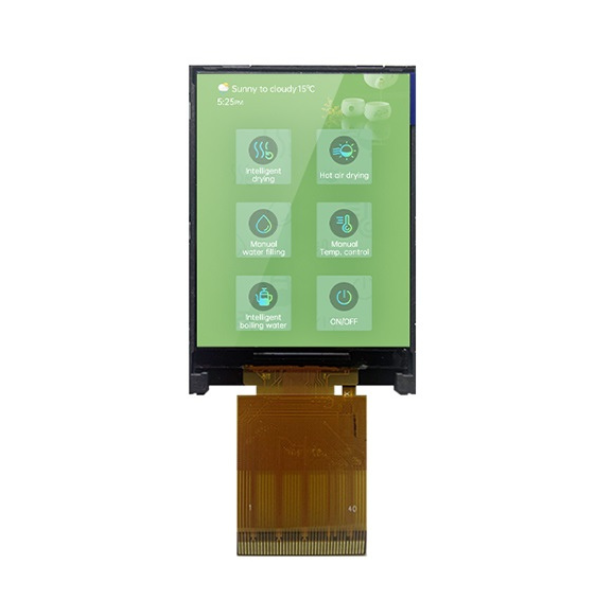

Picture of NT020-N001DW Picture of NT020-N001DW
TFT 2" 240x320 Portrait LCD Panel, Interface RGB, 350cd/m2, No Touch

General Feature

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 30.60(W)*40.80(H)
Driver IC ST7789V
Luminance 350cd/m²
LED Numbers 4 LEDS
Driver Condition 2.8V(Type)
Interface RGB_18bit 40PIN_0.5mm


Electrical Characteristics

Analog Voltage 2.8V(Typ.)
Forward Voltage 12.8V(Typ.)
Forward Current 20mA
Uniformity(with L/G) 80%
LED Life-Time 30000 Hr
Power Consumption 256mW


Optical Characteristics

Contrast Ratio 800:1
Response Time 30ms

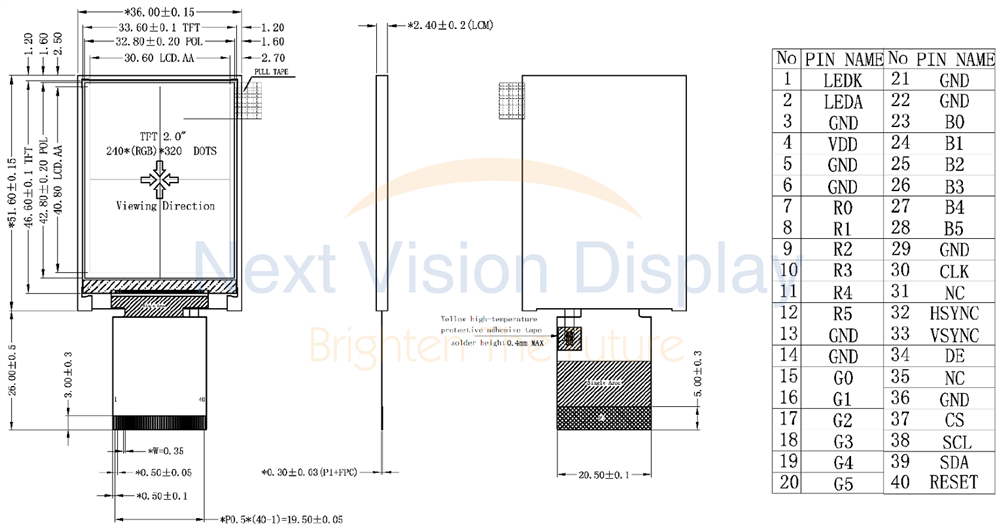

DRAWING

Square LCD Screen, Square Screen TFT, ST7789T3-G4-1 - WF0154ATAAA4DSN0
SKU: NT020-N001DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€8.80
€7.70
€6.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€8.80 excl tax

General Feature

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 30.60(W)*40.80(H)
Driver IC ST7789V
Luminance 350cd/m²
LED Numbers 4 LEDS
Driver Condition 2.8V(Type)
Interface RGB_18bit 40PIN_0.5mm


Electrical Characteristics

Analog Voltage 2.8V(Typ.)
Forward Voltage 12.8V(Typ.)
Forward Current 20mA
Uniformity(with L/G) 80%
LED Life-Time 30000 Hr
Power Consumption 256mW


Optical Characteristics

Contrast Ratio 800:1
Response Time 30ms



DRAWING

Square LCD Screen, Square Screen TFT, ST7789T3-G4-1 - WF0154ATAAA4DSN0
Products specifications
Brand Next Vision Display
Size 2"
Resolution 240x320
Active Area (mm) 30.60x40.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 2"
Resolution 240x320
Active Area (mm) 30.60x40.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
