NT020-R001DW

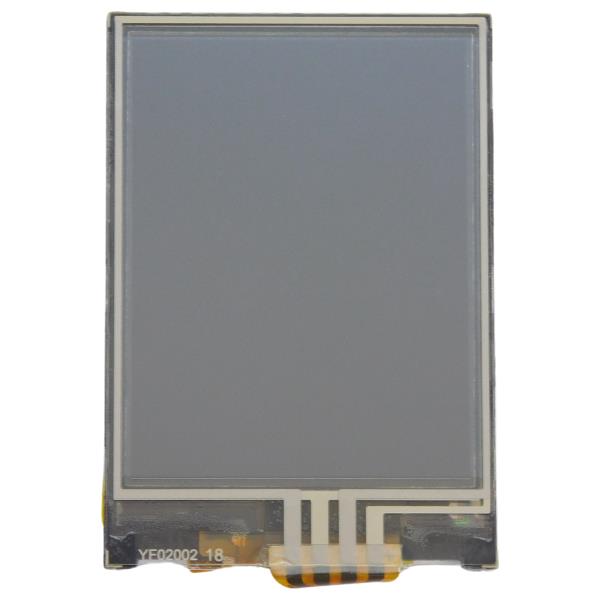

Picture of NT020-R001DW

Picture of NT020-R001DW

Picture of NT020-R001DW

TFT 2" 240x320 Portrait LCD Panel, Interface RGB, 250 cd/m2, Resistive Touch Panel

General Specification

Color	262K
LCD Type	IPS-TFT-LCD
Viewing Angle	Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A)	30.60(W)*40.80(H)
Driver IC	ST7789V
Luminance	250cd/m²
LED Numbers	4 LEDS
Driver Condition	2.8V(Type)
Interface	RGB_18bit 40PIN_0.5mm

Electrical Characteristics

Analog Voltage	2.8V(Typ.)
Forward Voltage	12.8V(Typ.)
Forward Current	20mA
Uniformity(with L/G)	80%
LED Life-Time	30000 Hr
Power Consumption	256mW

Optical Characteristics

Contrast Ratio	800:1
Response Time	30ms

Touch Parameters

Feature	Description
Type	RTP (Resistive touch panel)
Structure	ITO Film + ITO Glass + FPC
Outline Size (mm)	51.6(L)36.0(W)1.4(T)
View Area (mm)	40.8(L)*30.6(W)
Life	Dot>1,000,000; Stroke>100,000
Surface Hardness	3H
Light Transmittance	78%±3%
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

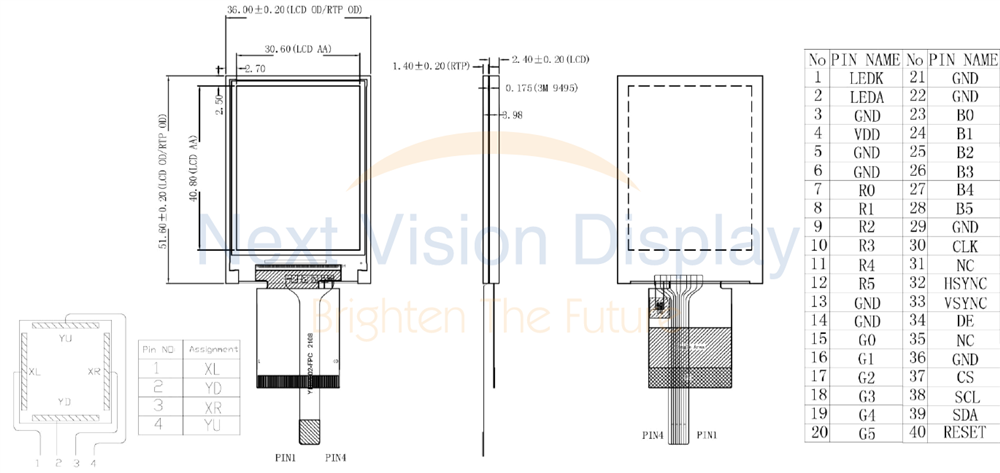

DRAWING

SKU: NT020-R001DW

Brand: Next Vision Display

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector
Touch-Panel Connector

Price Breaks

Quantity

1+

5+

10+

Price

€11.40

€10.00

€8.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€11.40 excl tax

Overview
Specifications
Download
Contact Us

General Specification

Color	262K
LCD Type	IPS-TFT-LCD
Viewing Angle	Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A)	30.60(W)*40.80(H)
Driver IC	ST7789V
Luminance	250cd/m²
LED Numbers	4 LEDS
Driver Condition	2.8V(Type)
Interface	RGB_18bit 40PIN_0.5mm

Electrical Characteristics

Analog Voltage	2.8V(Typ.)
Forward Voltage	12.8V(Typ.)
Forward Current	20mA
Uniformity(with L/G)	80%
LED Life-Time	30000 Hr
Power Consumption	256mW

Optical Characteristics

Contrast Ratio	800:1
Response Time	30ms

Touch Parameters

Feature	Description
Type	RTP (Resistive touch panel)
Structure	ITO Film + ITO Glass + FPC
Outline Size (mm)	51.6(L)36.0(W)1.4(T)
View Area (mm)	40.8(L)*30.6(W)
Life	Dot>1,000,000; Stroke>100,000
Surface Hardness	3H
Light Transmittance	78%±3%
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

DRAWING

Products specifications

Brand	Next Vision Display
Size	2"
Resolution	240x320
Active Area (mm)	30.60x40.80
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	IPS
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
