NT024-N001MI

TFT 2.4" 240x320 Portrait LCD Panel, Interface MCU (Parallel) IC ST7789T3, Transflective, 100 cd/m², Wide View Angle (IPS), No touch

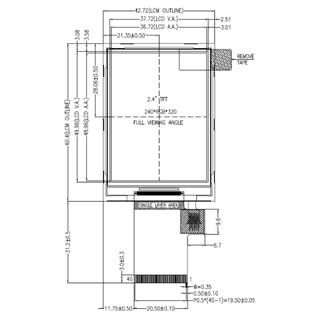

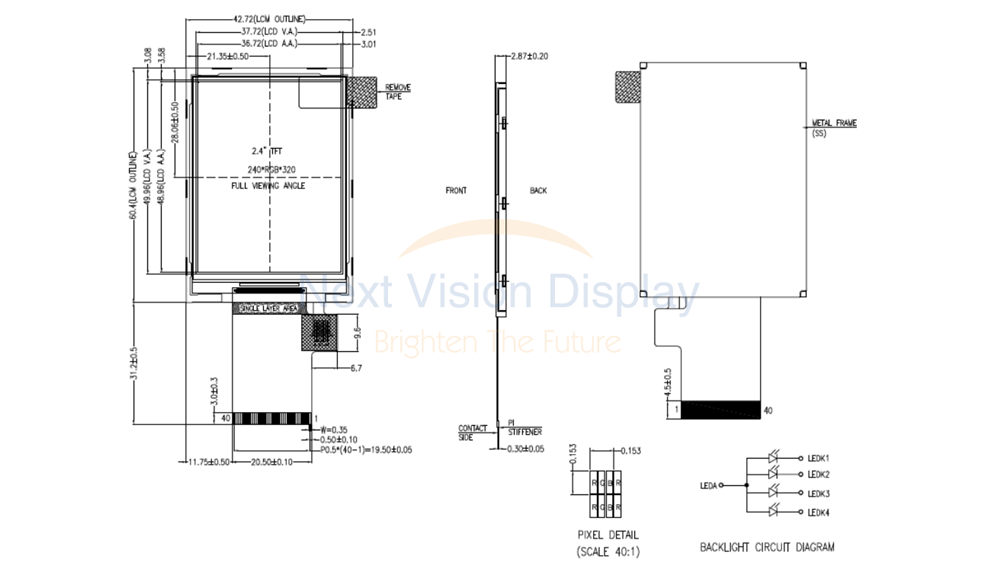

DRAWING

Item	Dimension	Unit
Size	2.4	inch
Dot Matrix	240 x RGB x 320(TFT)	dots
Module dimension	42.72(W) x 60.40(H) x 2.187(D)	mm
Active area	36.72 x 48.96	mm
Pixel Pitch	0.153 x 0.153	mm
LCD type	TFT, Normally Black, Transflective
TFT Interface	MCU (Parallel)
TFT Driver IC	ST7789T3
Viewing angle	IPS
Touch Panel	Without Touch Panel

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Analog	VCC	－	2.4	2.8	3.3	V
Supply Current For VCC	ICC	-	－	TBD	-	mA

SKU: NT024-N001MI

Brand: Next Vision Display

Available: No

Accessory Kit

Price Breaks

Quantity

10+

Price

€42.40

€39.00

€33.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€42.40 excl tax

Item	Dimension	Unit
Size	2.4	inch
Dot Matrix	240 x RGB x 320(TFT)	dots
Module dimension	42.72(W) x 60.40(H) x 2.187(D)	mm
Active area	36.72 x 48.96	mm
Pixel Pitch	0.153 x 0.153	mm
LCD type	TFT, Normally Black, Transflective
TFT Interface	MCU (Parallel)
TFT Driver IC	ST7789T3
Viewing angle	IPS
Touch Panel	Without Touch Panel

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Analog	VCC	－	2.4	2.8	3.3	V
Supply Current For VCC	ICC	-	－	TBD	-	mA
