NT050-N001DW

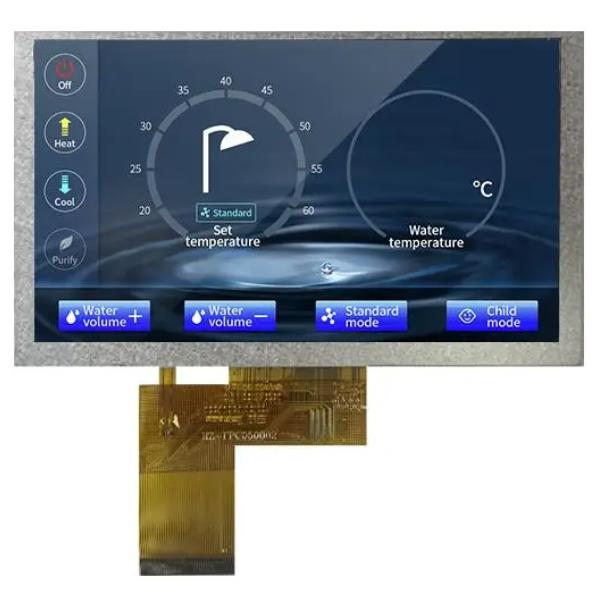

Picture of NT050-N001DW Picture of NT050-N001DW
TFT 5" 800x480 LCD Panel, Interface RGB, High Brightness 900cd/m², Wide view angle (IPS), No touch

General Specifications

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A) 108.0(W)*64.8(H)
Driver IC ST7262-G4-1-H
Luminance 900cd/m²
LED Numbers 20 LEDS
Interface RGB_24bit 40PIN_0.5mm



Electrical Characteristics

Digital Power Voltage 3.3V(Typ.)
Forward Voltage 12V(Typ.)
Forward Current 100mA
LED Life-Time 30000 Hr
Uniformity(with L/G) 80%




Optical Characteristics

Contrast Ratio 1000:1
Response Time 35ms
Color Gamut 55%

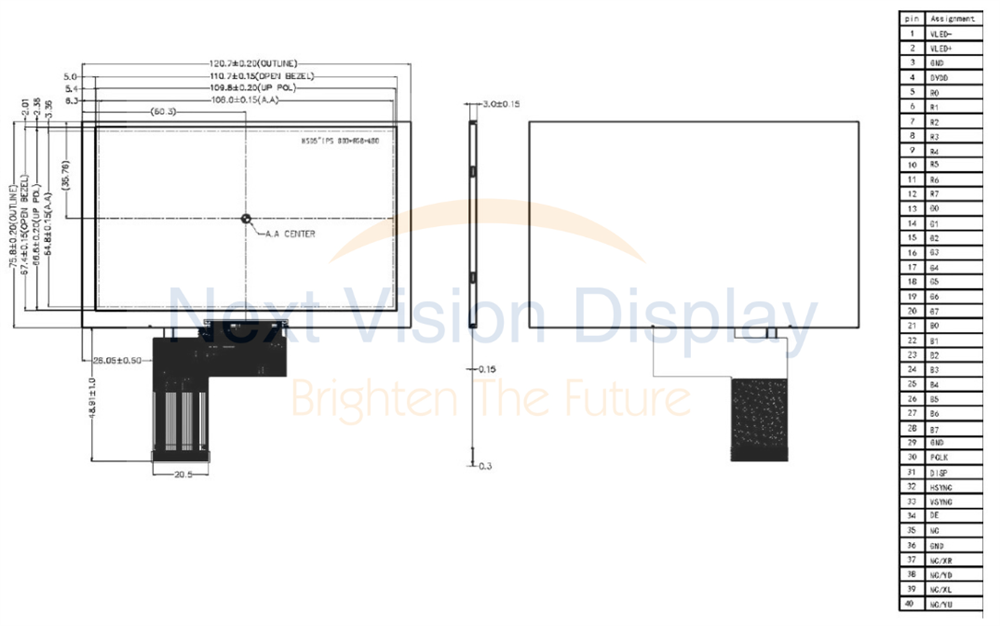

DRAWING

SKU: NT050-N001DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€31.70
€27.40
€24.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€31.70 excl tax

General Specifications

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A) 108.0(W)*64.8(H)
Driver IC ST7262-G4-1-H
Luminance 900cd/m²
LED Numbers 20 LEDS
Interface RGB_24bit 40PIN_0.5mm



Electrical Characteristics

Digital Power Voltage 3.3V(Typ.)
Forward Voltage 12V(Typ.)
Forward Current 100mA
LED Life-Time 30000 Hr
Uniformity(with L/G) 80%




Optical Characteristics

Contrast Ratio 1000:1
Response Time 35ms
Color Gamut 55%





DRAWING

Products specifications
Brand Next Vision Display
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -10~60
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -10~60
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Related products

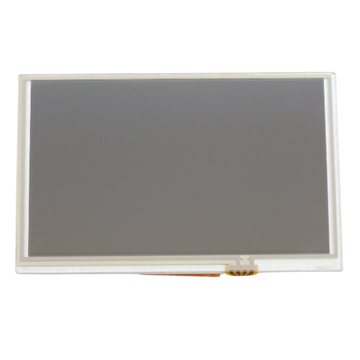

Picture of NT050-R001DW
